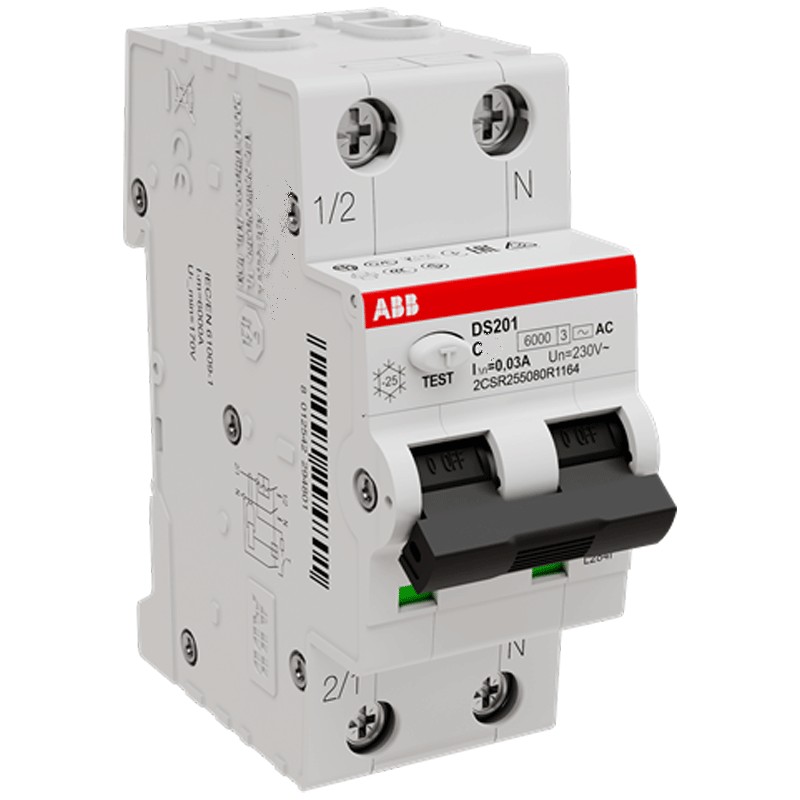

Differential Magnetothermal Abb 10A 1P N 30MA AC 6KA 2M DS201C10AC30
ABB DS201C10AC30
8012542049418
Differential Magnetothermal Abb Current rating 10A, Poles 1P N, Sensitivity 30MA, Residual current type: AC, Rated short-circuit capacity 6KA, Size 2 Modules.
Differential Magnetothermal Abb 10A 1P N 30MA AC 6KA 2M DS201C10AC30
€61.65
€61.65
Tax included
Tax included
Pay in installments with Klarna
Items Available: 162
Features:
- Reference standards:IEC/EN 61009-1, IEC/EN 61009-2-1
- Residual current type:AC type
- Number of poles: 2
- Number of protected poles: 1
- Rated current (In):10 A
- Rated Current Sensitivity: 0.03 A
- Nominal voltage (Ur): 230 V
- Rated insulation voltage (Ui): 500 V
- Overvoltage category:III
- Degree of pollution: 2
- Test Voltage (Ut):170 264 V
- Rated frequency (f):50 60 Hz
- Rated short-circuit rating (Icn): 6 kA
- Extreme rated short-circuit capacity (Icu):10 kA
- Rated service short-circuit rating (Ics):7.5 kA
- Dielectric test voltage:2.5 kV
- Intervention characteristic: C
- Energy limitation class: 3
- Contact position indication:Red ON / Green OFF
- Connection capacity:Busbar 10/10 mmq
- Stranded 0.75 25 mmq
- Flexible with Ferrule 0.75 16 mmq
- Flexible 0.75 16 mmq
- Tightening torque:2.8 N-m
- Cable stripping length:12 mm
- Mounting type:on DIN rail EN 60715 (35mm) by means of mounting clip
- Mounting position:Any
- Supply voltage connection: Arbitrary
- Position of neutral terminals: Right
- Power loss: 1.8 W
- Dimensions: Product width:0.035 m - Product height:0.085 m - Product depth:0.069 m - Product net weight:0.200 kg.
There are no reviews
Data sheet
- Modules:
- 2
- Poles:
- 1P+N
- Breaking capacity:
- 6KA
- RCD Type:
- AC
- Differential current :
- 0.03A
- Amps:
- 10A
- Circuit Protections:
- RCBO
