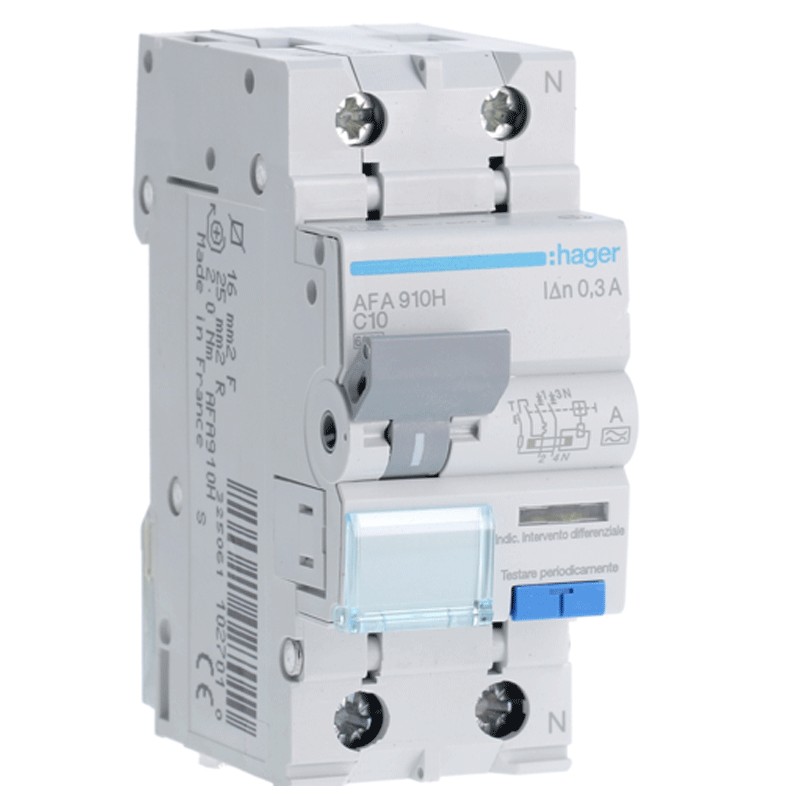

Earth leakage circuit breaker Hager 1P+N 300MA 10A AFA910H

Hager
HAG AFA910H 3250611027010

Hager differential magnetothermal switch, 2 modules, DIN connection (universal for any switchboard on the market), 1P+N, 10 amperes, breaking capacity 6kA, rated operational voltage AC 240 Vac, rated differential current 300mA, type A, trip curve C.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Earth leakage circuit breaker Hager 1P+N 300MA 10A AFA910H

€164.02
€164.02

Earth leakage circuit breaker Hager 1P+N 300MA 10A AFA910H

€164.02
Tax included
Items Available: 1
Further availability of the manufacturer

Earth leakage circuit breaker Hager 1P+N 300MA 10A AFA910H

€164.02

Buy it within and receive it from Friday, 7 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The thermal-magnetic circuit breaker is located next to the circuit breaker and combines magnetic and thermal protection and, if necessary, interrupts the electrical current.


The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.

The thermal-magnetic differential switch in the electrical system integrates three different protections:

  • the magnetic one for short circuits that can put an entire building at risk of fire;
  • the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
  • the differential which protects the subject from a current leakage.


The C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.


The differential switch type A tripping is assured for differential sinusoidal alternating currents and for pulsating differential unidirectional currents applied suddenly or slowly increasing (CEI EN 61008-1).


Features:

  • Hager series
  • Voltage Nominal operating voltage AC 240 Vac
  • Current In 10A
  • Interrupting capacity Icn 6kA
  • Intervention curve C
  • Rated differential current 300 mA
  • Rated insulation voltage 500 V
  • Maximum operating voltage 240 V
  • Rated fault withstand current 4000V
  • 2 modules
  • 1P+N
  • Rated frequency 50 Hz
  • Type of differential protection A
  • Depth 68 mm
  • Height 83 mm
  • Width 35 mm
  • Type of screw connection
  • Tightening torque 2.1 Nm
  • Degree of protection IP20
  • DIN rail mounting method
  • Tropicalised design for all climates
  • Operating temperature -25...40 °C

There are no reviews

Data sheet

Modules:
2
Poles:
1P+N
Curve:
C
Breaking capacity:
6KA
RCD Type:
AC
Differential current :
0.3A
Amps:
10A
Circuit Protections:
RCBO
