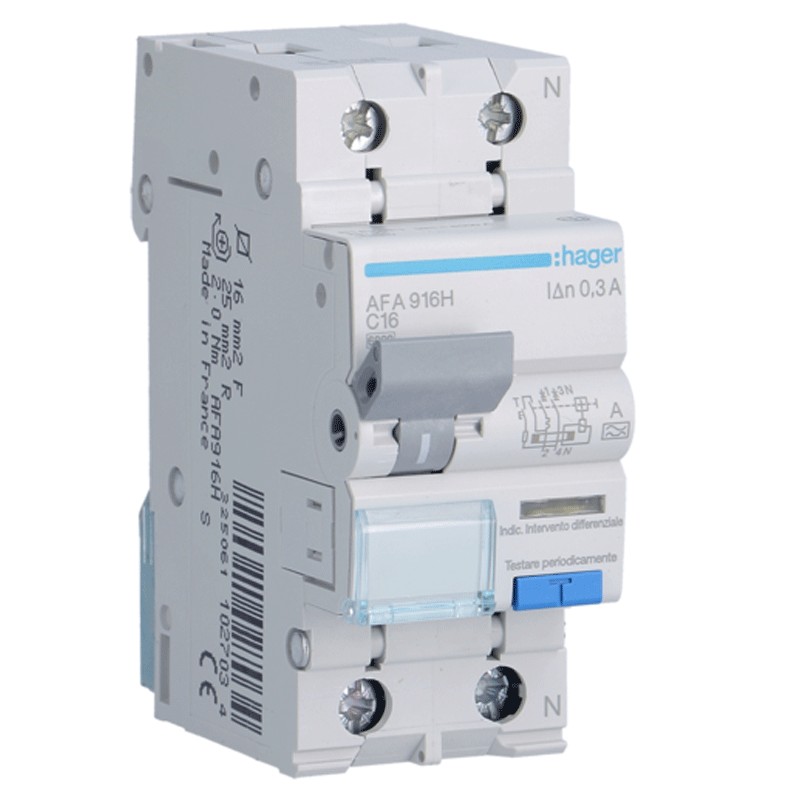

The thermal-magnetic circuit breaker is located next to the circuit breaker and combines magnetic and thermal protection and, if necessary, interrupts the electrical current.

The thermal-magnetic circuit breaker is, therefore, a system that combines the functions of the circuit breaker with magnetic and thermal characteristics.

The thermal-magnetic differential switch in the electrical system integrates three different protections:

• the magnetic one for short circuits that can put an entire building at risk of fire;
• the thermal one for overloads in the supply of electrical energy (e.g. more than one household appliance in operation);
• the differential which protects the subject from a current leakage.

The C curve, trip threshold from 5 to 10 times In, for application of ohmic-inductive circuits with medium inrush currents. It is widely used in domestic installations.

The differential switch type A tripping is assured for differential sinusoidal alternating currents and for pulsating differential unidirectional currents applied suddenly or slowly increasing (CEI EN 61008-1).

Features:

• Hager series
• Voltage Nominal operating voltage AC 240 Vac
• Current In 16A
• Interrupting capacity Icn 6kA
• Intervention curve C
• Rated differential current 300 mA
• Rated insulation voltage 500 V
• Maximum operating voltage 240 V
• Rated fault withstand current 4000V
• 2 modules
• 1P+N
• Rated frequency 50 Hz
• Type of differential protection A
• Depth 68 mm
• Height 83 mm
• Width 35 mm
• Type of screw connection
• Tightening torque 2.1 Nm
• Degree of protection IP20
• DIN rail mounting method

• Tropicalised design for all climates
• Operating temperature -25...40 °C
