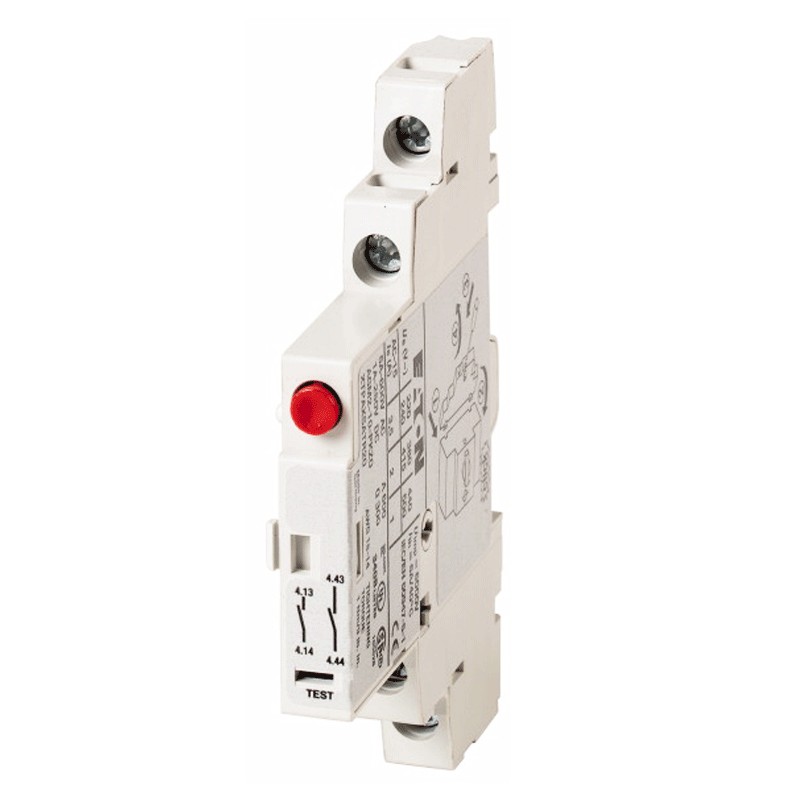

Eaton release indicator 2Na 72898


EAO 72898 4015080728986

Eaton trip signaller with the following characteristics:

  • Nominal operating voltage 250 Vac
  • Rated impulse withstand voltage 6000 VAC
  • Overvoltage category III
  • Pollution degree 3
  • Contacts N/A = Normally open 2 x 1 N/A
  • Can be installed to the right of the motor protection switch
Do you have questions about this product or did you not find what you were looking for? Ask us!
Eaton release indicator 2Na 72898
€14.02
€14.02

€14.02
Tax included

€14.02

Buy it within and receive it from Monday, 17 March
Two-year warranty
Easy return within 14 days

Module with indicator light to give a clear indication of the status of the circuit, an associated device or for monitoring.

Features:

  • Eaton Series
  • Nominal operating voltage 250 Vac
  • Rated impulse withstand voltage 6000 VAC
  • Overvoltage category III
  • Pollution degree 3
  • Contacts N/A = Normally open 2 x 1 N/A
  • Number of contacts as normally open contact 2
  • Number of contacts as normally closed contact 0
  • Connection technology screw terminals
  • Can be installed to the right of the motor protection switch
  • Mounting method side mounting
  • Top mounting method
  • Electrical connection type screw connection
  • Mounting method side mounting

Data sheet

Type:
Alert
Voltage:
250 Vac
Contact details of the manufacturer and the responsible person
