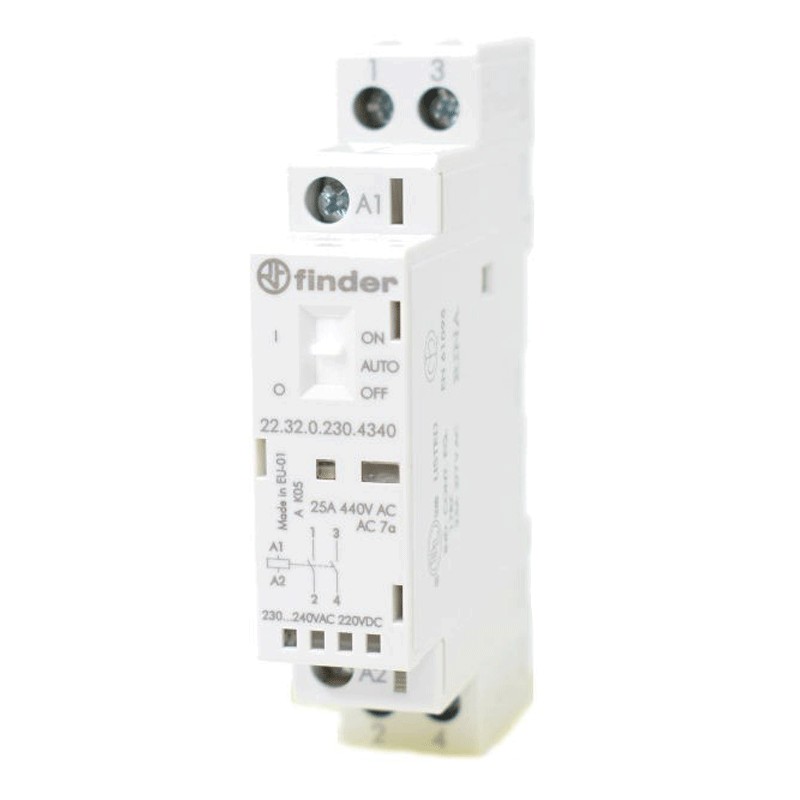

Finder contactor DIN 2 contacts NO 22.32.0.230.4340


FIN 223202304340 8012823354576

Finder contactor, with the following characteristics:

  • Operating voltage 250/440 Vac
  • 1 module
  • 2 poles
  • DIN connection (universal for any switchboard on the market)
  • Contact type 2NO
  • Operating current 25 amperes
Do you have questions about this product or did you not find what you were looking for? Ask us!
Finder contactor DIN 2 contacts NO 22.32.0.230.4340
€30.32
€30.32

€30.32
Tax included

€30.32

Buy it within and receive it from Tuesday, 18 March
Two-year warranty
Easy return within 14 days

The contactor is a device for closing and opening electrical circuits, mostly high voltage, by remote control.

The standard CEI 17-3 defines a contactor (contactor) as a device capable of interrupting or establishing current within a circuit. To do this, the device opens and closes the contact channels between the system and the power supply structure. In short, a kind of switch to be used for every eventuality.

Features:

  • Finder Series
  • Operating voltage 250/440 Vac
  • Operating current 25A
  • 1 module
  • 2 poles
  • Contact type 2NO
  • Width 17.5 mm
  • NO contact opening ≥ 3 mm, double breakage
  • Coil and contacts for continuous duty
  • Silent AC/DC coil (with protective varistor)
  • Protective separation between coil and contacts (reinforced insulation)
  • Standard version with mechanical indicator and LED
  • Version with Auto-On-Off selector switch
  • Complies with standard EN 61095: 2009
  • Module with auxiliary contacts with "QuickMounting" coupling to contactor (versions with 1NO + 1NC and 2NO)
  • Suitable for railway applications; plastic materials in compliance with fire and smoke regulations (EN 45545-2:2013)
  • Mounting on 35mm DIN rail (EN 60715)
  • IP20 degree of protection

Data sheet

Type:
Contactors
Voltage:
250/440VAC
Modules:
1
Poles:
2P
Amps:
25A
