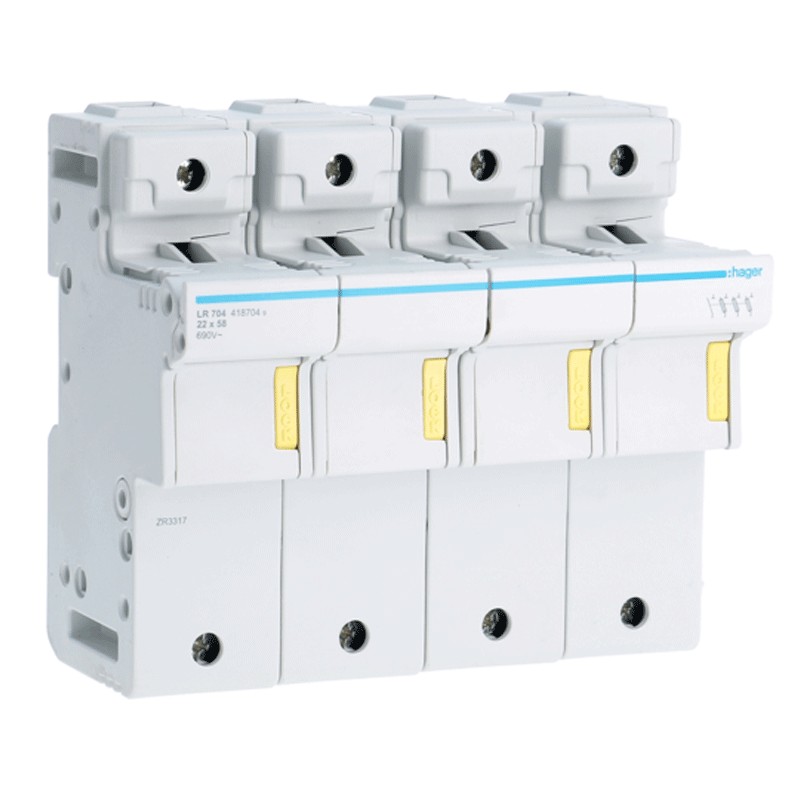

Fuse holder Hager 3P+N 125A 22X58 4 modules LR704

Hager
HAG LR704 3250614187049

Hager L58 non-accessory fuse holder, with the following characteristics:

  • Type of poles 3P+N
  • 4 modules
  • Nominal operating voltage AC 690 Vac
  • Rated frequency 50 Hz
  • Rated current 125A
  • Fuse utilization category gG, aM
  • Fuse size 22 x 58
  • Total power loss 42 W
  • Power loss per pole 2.9 W
Do you have questions about this product or did you not find what you were looking for? Ask us!

Fuse holder Hager 3P+N 125A 22X58 4 modules LR704

€77.85
€77.85

Fuse holder Hager 3P+N 125A 22X58 4 modules LR704

€77.85
Tax included
Items Available: 14
Further availability of the manufacturer

Fuse holder Hager 3P+N 125A 22X58 4 modules LR704

€77.85

Buy it within and receive it from Wednesday, 11 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Hager series
  • Pole type 3P+N
  • 4 modules
  • Nominal operating voltage 690 Vac
  • Rated frequency 50 Hz
  • Rated current 125A
  • Fuse utilization category gG, aM
  • Fuse size 22 x 58
  • Total power loss 42 W
  • Power dissipation per pole 2.9 W
  • Electrical life and number of cycles 2000
  • Number of operations (mechanical life) 5000
  • Depth 96 mm
  • Height 125 mm
  • Width 140 mm
  • Tightening torque 3.6 Nm
  • Degree of protection of the housing IP20
  • Operating temperature -5...40 °C
  • Pollution degree 3
  • Storage/transport temperature -25...80 °C
  • Calibration temperature 30 °C

There are no reviews

Data sheet

Type:
Fuse holder
Size:
22x58 fuse sizes
Voltage:
690VAC
Modules:
4
Poles:
3P+N
Amps:
125A
