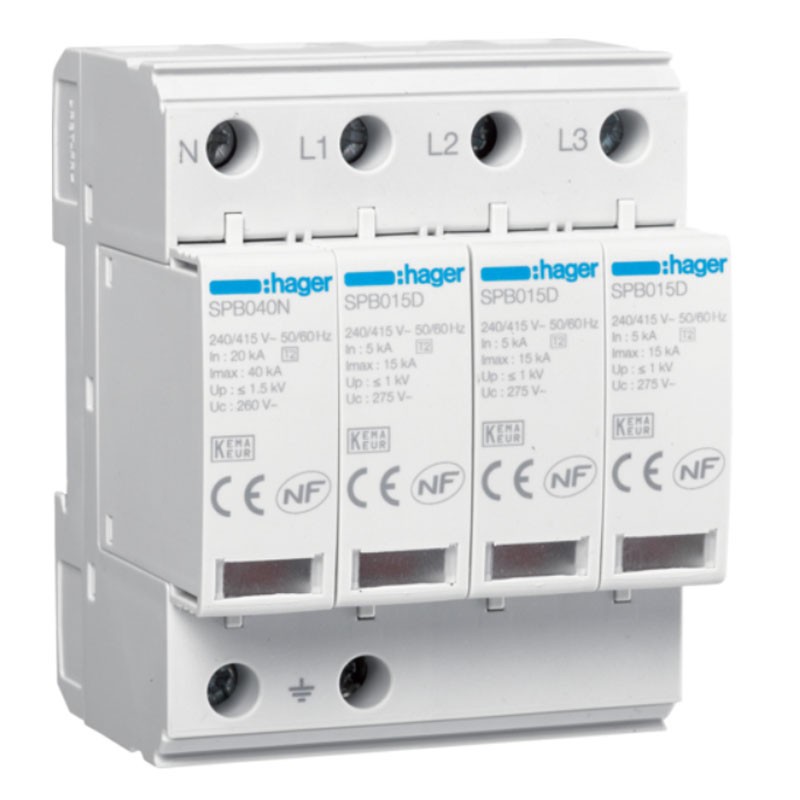

Hager 4P IMAX 15KA Type 2 SPB415D Discharger

Hager
HAG SPB415D 3250615660268

Hager IMAX surge arrester, with the following characteristics:

  • Nominal operating voltage AC 240/ 415V
  • Maximum discharge current 15kA
  • Rated frequency 50/60 Hz
  • 4 modules
  • 4 poles
  • Max. voltage permanent regime com mode 275V
  • Protection level in common mode 1 kV
  • Protection level UP L-PE /N-Pe according to IEC 61643-11 1.5 kV
  • Type 2
  • Upstream protection rating 125A
Do you have questions about this product or did you not find what you were looking for? Ask us!

Hager 4P IMAX 15KA Type 2 SPB415D Discharger

€172.97
€172.97

Hager 4P IMAX 15KA Type 2 SPB415D Discharger

€172.97
Tax included
Items Available: 4
Further availability of the manufacturer

Hager 4P IMAX 15KA Type 2 SPB415D Discharger

€172.97

Buy it within and receive it from Friday, 3 January
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The surge arrester is a tool that can be mounted inside the electrical panel, thus upstream of the house system. Its use allows the electrical system on which it is installed to be protected.

The surge arrester will protect the entire system from surges, surges and spikes of electricity that may come from the power line operator, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to devices connected to outlets.

A surge of electricity can cause the hardware of a pc to break, or short circuit the boards of smartphones, tablets, and home appliances. In the event that the flow of energy suddenly increases dramatically, human life may even be in danger due to electrocution. To prevent this from happening, it is therefore advisable to install a surge arrester.



Surge arrestersare divided into three classes:

 In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example, in mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. Discharge occurs in 350 microseconds, so excess energy does not reach the system.


In class 2 are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.

In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets in the home.

Features:

  • Hager series
  • Depth 58.2 mm
  • Height 89.8 mm
  • Width 71.2 mm
  • Tightening torque 3Nm
  • Connection Hard cable sect. for screw terminal connection 1.5 / 35 mm²
  • Flex. cable sect. for screw terminal connection 1.5 / 25 mm²
  • Reference Standards KEMA, NF
  • Test class IEC61643-11 / VDE0675-6-11 T2
  • European WEEE Directive concerned
  • Operating temperature: -40/+80 °C

There are no reviews

Data sheet

Modules:
4
Poles:
4P
Maximum current:
15KA
Version:
2
Model:
AC
Circuit Protections:
Surge protectors
