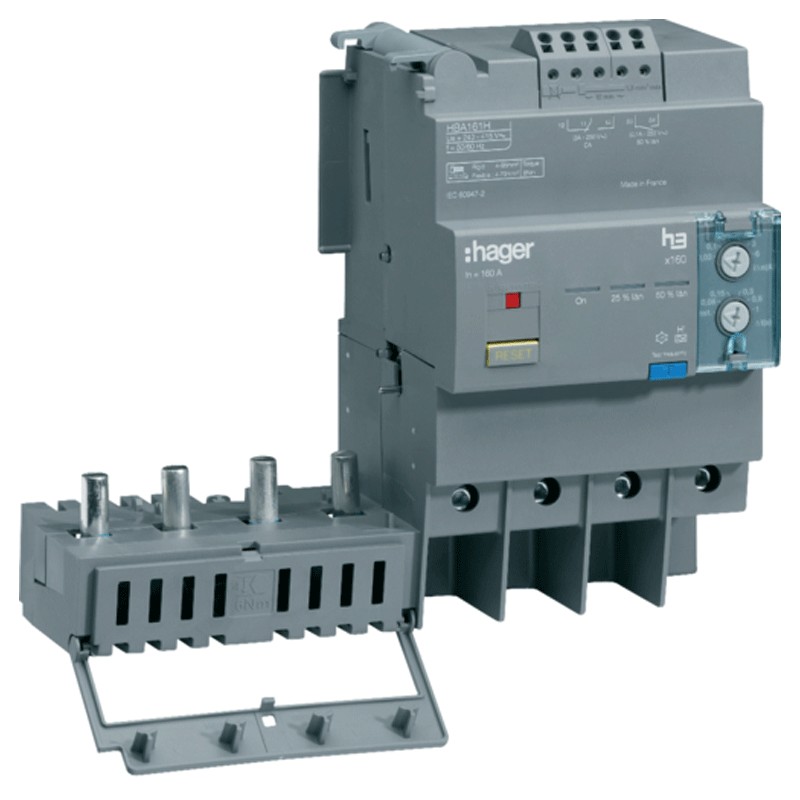

Hager 4P 160A adjustable differential lock for X160 A/HI HBA161H
HAG HBA161H
3250613121099
Hager differential lock (circuit breaker), adjustable, timed for X160, with the following features:
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 160 amperes
- Nominal differential current 30 mA/100 mA/300 mA /1A /3A /6A
- Rated operating voltage AC 220/415 Vac
- Type of differential A HI
€581.02
€581.02
Tax included
Tax included
Items Available: 9
: 2
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the earth. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The differential switch type A-HI high immunity (HI) for use in the presence of overvoltages of atmospheric origin (thunderstorms) in order to avoid untimely interventions that can put the system out of service.
Characteristics:
- Hager series
- Nominal operating voltage AC 220/415 Vac
- Current In 160A
- Differential current 30 mA / 100 mA / 300 mA / 1 A / 3 A / 6 A
- Frequency from 50 to 60 Hz
- Rated insulation voltage 500V
- Rated fault withstand current 6 kV
- Type of differential A HI
- 4 poles
- Degree of protection of the enclosure IP4X
- DIN rail mounting type o (symmetrical)
There are no reviews
Data sheet
- Voltage: 220/415VAC
- Modules: 4
- Poles: 4P
- RCD Type: A
- Differential current : 0.03-0.1-0.3A
- Circuit Protections: Earth Leakage add-on Blocks
