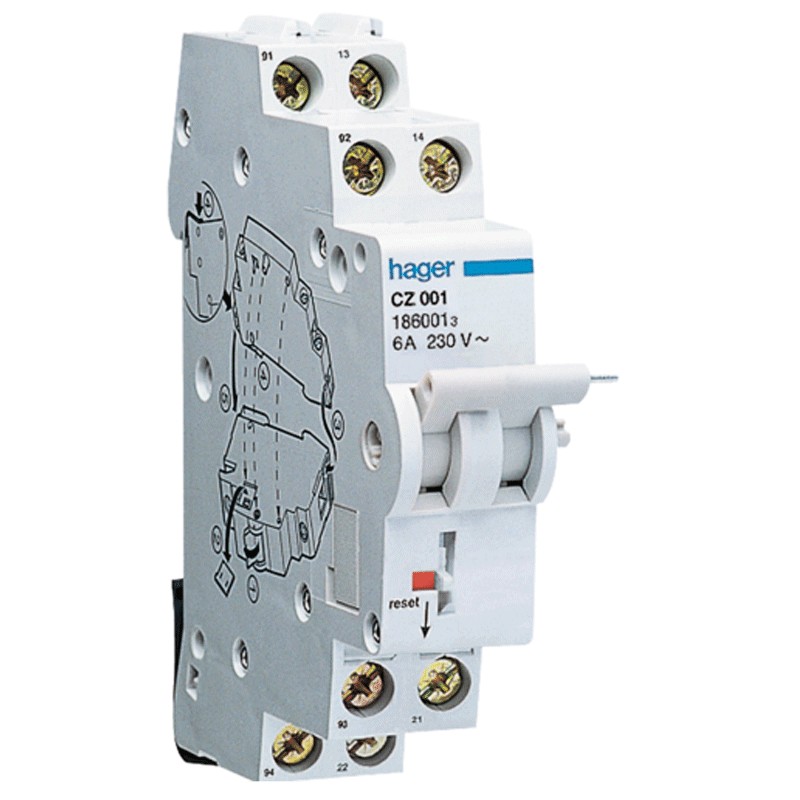

Hager auxiliary contact for pure earth leakage circuit breaker CZ001
HAG CZ001
3250611860013
Auxiliary contact for Hager pure residual current circuit breaker, with the following characteristics:
- Nominal operating voltage AC 230/440 Vac
- Nominal frequency 50 Hz
- Rated insulation voltage 500 Vac
- Rated DC voltage 12 /250 Vac
- Rated operational current in AC1 6 A
- Installed product width 18 mm
- Tightening torque 1.2Nm
- Screw connection type
- Number of contacts 1NC+1NO
- Operating temperature -25...60 °C
Hager auxiliary contact for pure earth leakage circuit breaker CZ001
€44.24
€44.24
Tax included
Tax included
Items Available: 12
: 10
Auxiliary contacts are secondary switching devices that operate in conjunction with primary switching equipment such as circuit breakers, relays, and contactors. These contacts are physically connected to the main switching mechanism and are activated simultaneously.
What are they used for? Auxiliary contacts are used for various functions, e.g. self-holding, consent/block, signaling, interlocking.
Features:
- Hager series
- Nominal operating voltage 230/440 Vac
- Rated frequency 50 Hz
- Rated insulation voltage 500 Vac
- Rated DC voltage 12 /250 Vac
- Rated operational current in AC1 6 A
- Imin = f (U = 230 V AC) 6 A
- Imin = f (U = 230 V DC) 0.6 A
- Imin = f (U = 400V AC) of power circuit 3 A
- Total power loss 0.1 W
- Electrical endurance and number of cycles 6000
- Number of operations (mechanical life) 12000
- Installed product width 18 mm
- Tightening torque 1.2Nm
- Minimum cross-section with flexible cable 4 mm²
- Minimum cross-section with rigid cable 6mm²
- Contact type auxiliary contact 1NC + 1N0 alarm contact 1NC + 1NO
- Type of screw connection
- Number of contacts 1NC+1NO
- Operating temperature -25...60 °C
- Tropicalised version 95% / 80°C
- Storage/transport temperature -40...80 °C
There are no reviews
Data sheet
- Type: Auxiliary Contacts
