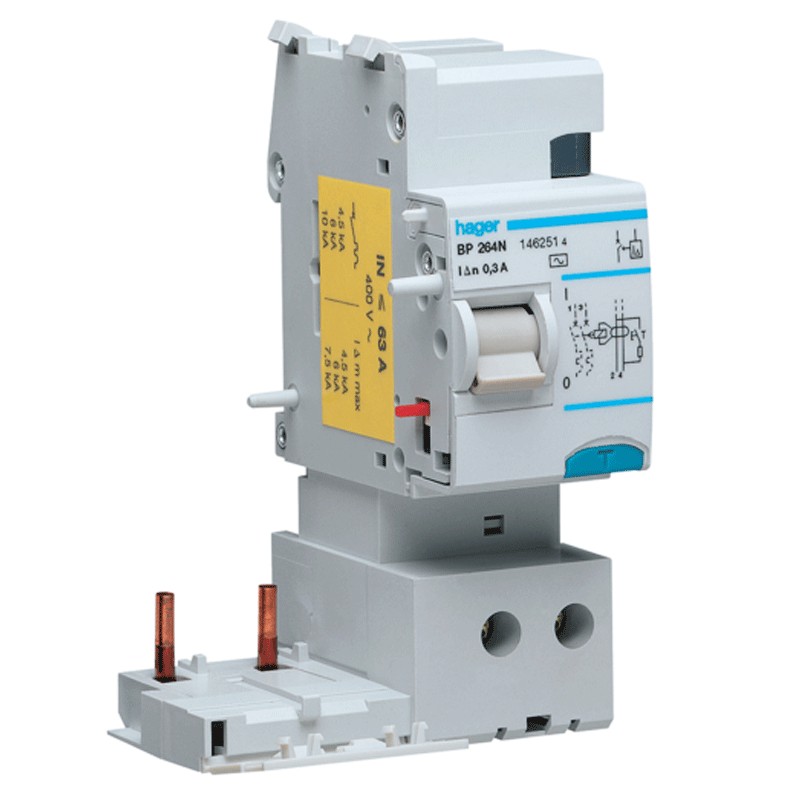

Hager differential lock 2P 63A 300MA AC/S 2 modules BP264N

Hager
HAG BP264N 3250611462514

Hager selective differential lock (circuit breaker) with the following features:

  • DIN connection (universal for any switchboard on the market)
  • 2 poles
  • 2 modules
  • 63 amperes
  • Rated differential current 300mA
  • Rated operating voltage AC 230/400Vac
  • Type of AC differential (selective)
Do you have questions about this product or did you not find what you were looking for? Ask us!

Hager differential lock 2P 63A 300MA AC/S 2 modules BP264N

€176.07
€176.07

Hager differential lock 2P 63A 300MA AC/S 2 modules BP264N

€176.07
Tax included
Items Available: 2
Further availability of the manufacturer

Hager differential lock 2P 63A 300MA AC/S 2 modules BP264N

€176.07

Buy it within and receive it from Tuesday, 12 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the ground. The current instead of staying in the home circuit, uses the human body to go to ground.

The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.

A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.

The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.

Characteristics:

  • Hager series
  • Differential lock selective (S)
  • Nominal operating voltage AC 230/400Vac
  • Current In 63A
  • Differential current 300mA
  • Frequency 50 Hz
  • Neutral position right
  • Rated insulation voltage 500V
  • Rated Fault Holding Current 4000V
  • AC differential type
  • 2 poles
  • 2 modules
  • Degree of protection of the enclosure IP20
  • Depth of the installed product 9.2 cm
  • Height of the installed product 7 cm
  • Width of installed product 3.5 cm
  • Tightening torque 2.2 Nm
  • DIN rail mounting type

There are no reviews

Data sheet

Voltage:
230/400VAC
Modules:
2
Poles:
2P
RCD Type:
AC
Differential current :
0.3A
Amps:
63A
Circuit Protections:
Earth Leakage add-on Blocks
