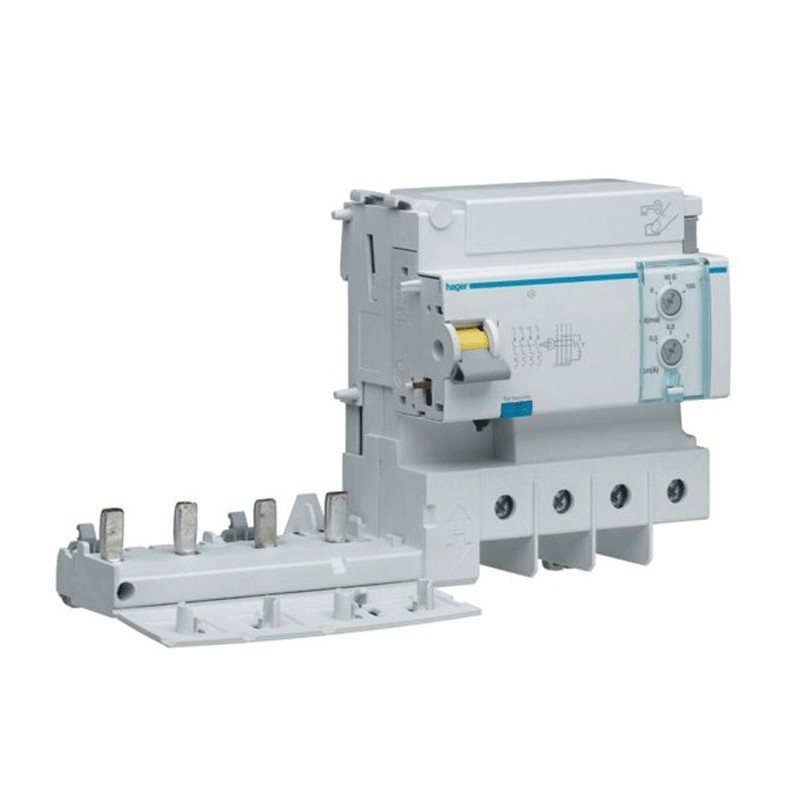

Hager differential lock 4P 125A 300mA AC 6 modules BFC480E
HAG BFC480E
3250611360001
Hager differential lock (circuit breaker) with the following features:
- DIN connection (universal for any switchboard on the market)
- 4 poles
- 6 modules
- 125 amperes
- Rated differential current 300mA
- Rated operating voltage AC 230 / 400 Vac
- Type of AC differential
Hager differential lock 4P 125A 300mA AC 6 modules BFC480E
€218.54
€218.54
Tax included
Tax included
Items Available: 6
: 3
Frequently bought together
The pure earth leakage pure residual current circuit breaker serves to protect people and not installations. The moment a person touches it, it creates a circuit with the ground. The current instead of staying in the home circuit, uses the human body to go to ground.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, when the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Hager series
- Rated voltage AC 230 / 400 Vac
- Current In 125A
- Differential current 300mA
- Rated frequency 50 Hz
- Neutral position left or right
- Rated insulation voltage 500V
- Rated Fault Holding Current 6000V
- AC differential type
- 4 poles
- 6 modules
- Degree of protection of the housing IP20
- Depth of the installed product 69 mm
- Height of the installed product 103 mm
- Width of the installed product 213 mm
- Tightening torque 3.5 Nm
- DIN rail mounting type
There are no reviews
Data sheet
- Voltage: 230/400VAC
- Modules: 6
- Poles: 4P
- RCD Type: AC
- Differential current : 0.3A
- Amps: 125A
- Circuit Protections: Earth Leakage add-on Blocks
