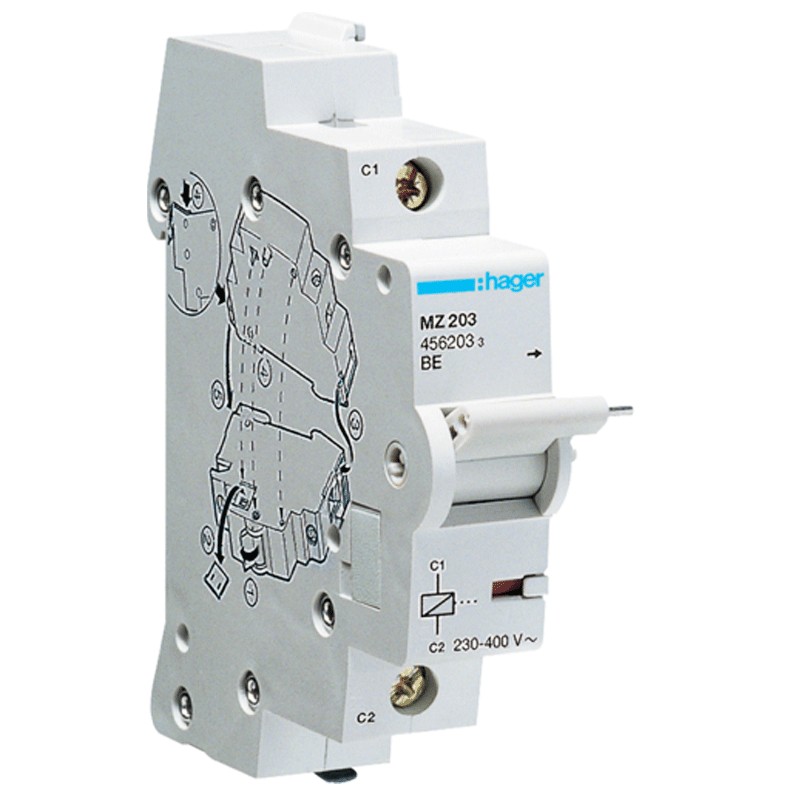

Hager launch coil 230/415VCA 1 Module MZ203

Hager
HAG MZ203 3250614562037

Hager current coil with the following characteristics:

  • Nominal operating voltage AC 230 / 415 Vac
  • Type of supply voltage AC/DC
  • Nominal frequency 50/60 Hz
  • DIN rail mounting
  • Rated insulation voltage 4000 Vac
  • Tightening torque 1.2 Nm
  • Operating temperature -25...60 °C
  • Storage/transport temperature -40...80 °C
Do you have questions about this product or did you not find what you were looking for? Ask us!

Hager launch coil 230/415VCA 1 Module MZ203

€32.40
€32.40

Hager launch coil 230/415VCA 1 Module MZ203

€32.40
Tax included
Items Available: 29
Further availability of the manufacturer

Hager launch coil 230/415VCA 1 Module MZ203

€32.40

Buy it within and receive it from Tuesday, 4 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Auxiliary contacts are secondary switching devices which operate in conjunction with primary switching equipment such as circuit breakers, relays and contactors. These contacts are physically connected to the main switching mechanism and are activated simultaneously.

What are they used for? Auxiliary contacts are used for various functions, e.g. self-holding, enabling/disabling, signalling, interlocking.

The switch with electronic release (also called current-launching coil) is a switch that is opened, in the event of a fault, by an electromechanical actuator (opening solenoid) activated by an electronic device capable of processing a signal proportional to the current that passes through the power contacts.


Features:

  • Hager series
  • Nominal operating voltage AC 230 / 415 Vac
  • Type of supply voltage AC/DC
  • Nominal frequency 50/60 Hz
  • DIN rail mounting
  • Rated insulation voltage 4000 Vac
  • Control circuit voltage in DC 110 / 130 Vac
  • Control circuit voltage in AC 230 / 415 Vac
  • Rated DC voltage 110 / 130 Vac
  • Imin = f (U = 230 V AC) 14 mA
  • Imin = f (U = 415V AC) of power circuit 32 mA
  • Power consumption at attraction 15 VA
  • Total power dissipation 25.3 W
  • Opening response time 200 ms
  • Depth 68 mm
  • Height 83 mm
  • Width 18 mm
  • Tightening torque 1.2 Nm
  • Minimum cross-section with flexible cable 6 mm²
  • Minimum cross-section with rigid cable 10 mm²
  • Operating temperature -25...60 °C
  • Tropicalised version 95%
  • Storage/transport temperature -40...80 °C

Funktioniert super mit den LS der Firma Hager. Einfache Montage dank Klips. Keine unnötiges kleben. Hält bomben fest.

Read all reviews

Data sheet

Type:
Coils
Model:
Release
