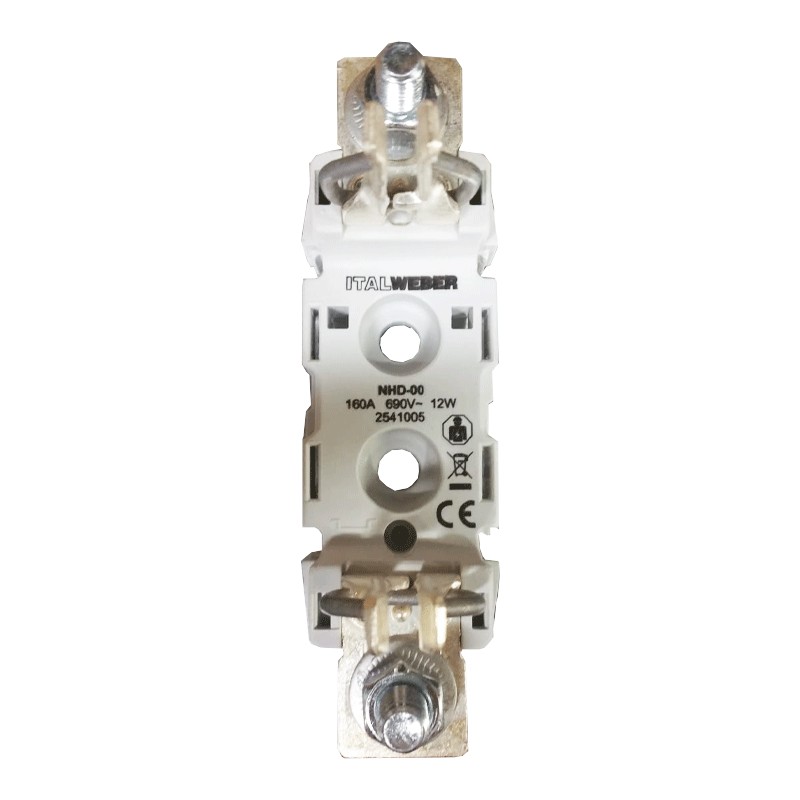

Italweber fuse holder for NH 1P fuses screw fixing 2541005

Italweber
ITW 2541005 8024873026280

Italweber fuse holder, with the following characteristics:

  • Ideal for knife-edge fuses NH series
  • 1 pole
  • Current In 160A
  • Rated voltage 690Vac / 700 Vdc
  • Ideal for single and three-pole families
  • Rated current up to 630A
  • Resistance to short circuit current 50kA (peak 100kA)
  • Maximum power dissipation 12W per pole
Do you have questions about this product or did you not find what you were looking for? Ask us!

Italweber fuse holder for NH 1P fuses screw fixing 2541005

€7.08
€7.08

Italweber fuse holder for NH 1P fuses screw fixing 2541005

€7.08
Tax included
Items Available: 4
Further availability of the manufacturer

Italweber fuse holder for NH 1P fuses screw fixing 2541005

€7.08

Buy it within and receive it from Tuesday, 17 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Features:

  • Italweber series
  • Ideal for knife-edge fuses NH series
  • 1 pole
  • Current In 160A
  • Rated voltage 690Vac / 700 Vdc
  • Ideal for single and three pole families
  • Screw fixing (NHD), for DIN rail mounting (NHU), with microswitch (NHU/MS)
  • Dimensions NH-00, NH-0, NH-1, NH-2, NH-3
  • Compliant with standards IEC 32-1, IEC 32-4, IEC 60269-1, IEC 60269-2, DIN 43620
  • Plastic body (polyamide + 25% glass fibres)
  • Degree of self-extinguishing UL94-V0
  • Contacts in silver-plated copper
  • Bolting material steel quality 8.8
  • Rated current up to 630A
  • Operating temperature -20°C / +70°C
  • Resistance to short circuit current 50kA (100kA peak)
  • Maximum power dissipation: 12W per pole

Servizio eccellente. Materiale arrivato in tempo record. Positivo sotto tutti i punti di vista.

Read all reviews

Data sheet

Type:
Fuse holder
Voltage:
690VAC
Poles:
1P
Amps:
160A
