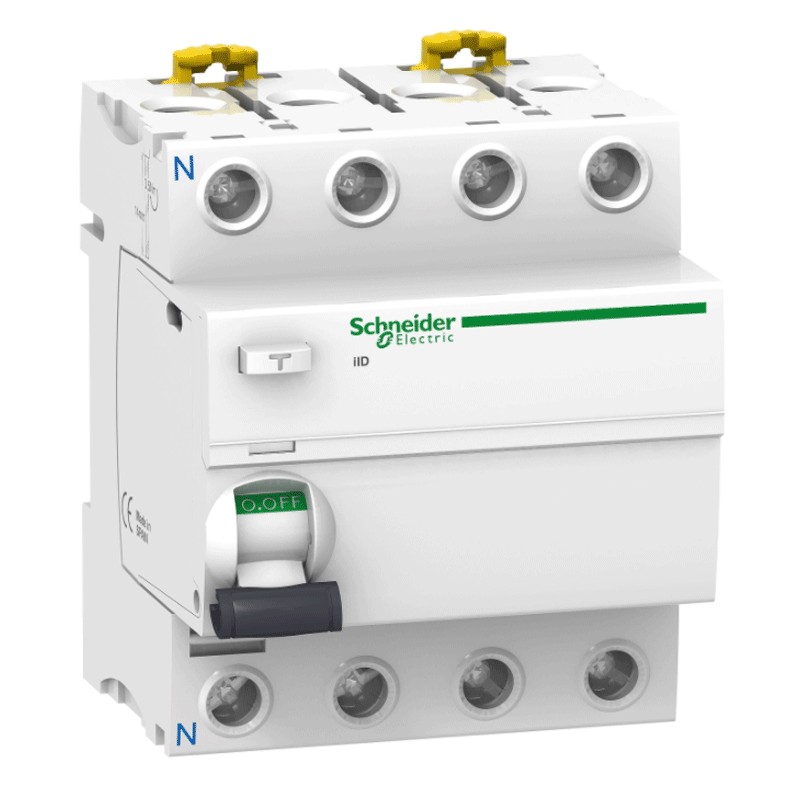

Schneider pure differential 4P 40A 30MA AC 4 modules A9R41440
SNR A9R41440
3606480089084
Schneider pure differential switch, 4 modules, DIN connection (universal for any switchboard on the market), poles 4P, 40 amperes, differential current Idn 30mA, voltage 380/415 Vac, AC differential type.
Schneider pure differential 4P 40A 30MA AC 4 modules A9R41440
€179.66
€179.66
Tax included
Tax included
Items Available: 16
: 2
The pure earth leakage circuit breaker is used to protect people and not the equipment. The moment a person goes to touch it, it creates a circuit with the earth. The current instead of remaining in the domestic circuit, uses the human body to go to earth.
The residual current circuit breaker, also called circuit breaker, is a device in your electrical system. It is able to open the circuit, i.e. to interrupt the supply of energy, at the moment in which the current is accidentally lost.
A pure residual current circuit breaker offers protection in case of current leakage but not in case of overvoltage. For this type of problem, a circuit breaker is required instead.
The AC residualcurrent circuit breaker operates only with alternating current. Almost all civil installations fall into this type.
Characteristics:
- Schneider series
- Voltage 380/415 Vac
- Current In 40A
- Differential current Idn 30mA
- AC differential type
- 4 modules
- 4P
- Degree of protection IP20
- Mains frequency 50/60 Hz
- Neutral position left
- Control type Lever
- Mounting method
- Mounting bracket DIN rail
- Height 91 mm
- Width 72 mm
- Depth 73.5 mm
- Product weight 370 gr
- Colour white
There are no reviews
Data sheet
- Voltage: 380/400VAC
- Modules: 4
- Poles: 4P
- RCD Type: AC
- Differential current : 0.03A
- Amps: 40A
- Circuit Protections: Residual current devices
