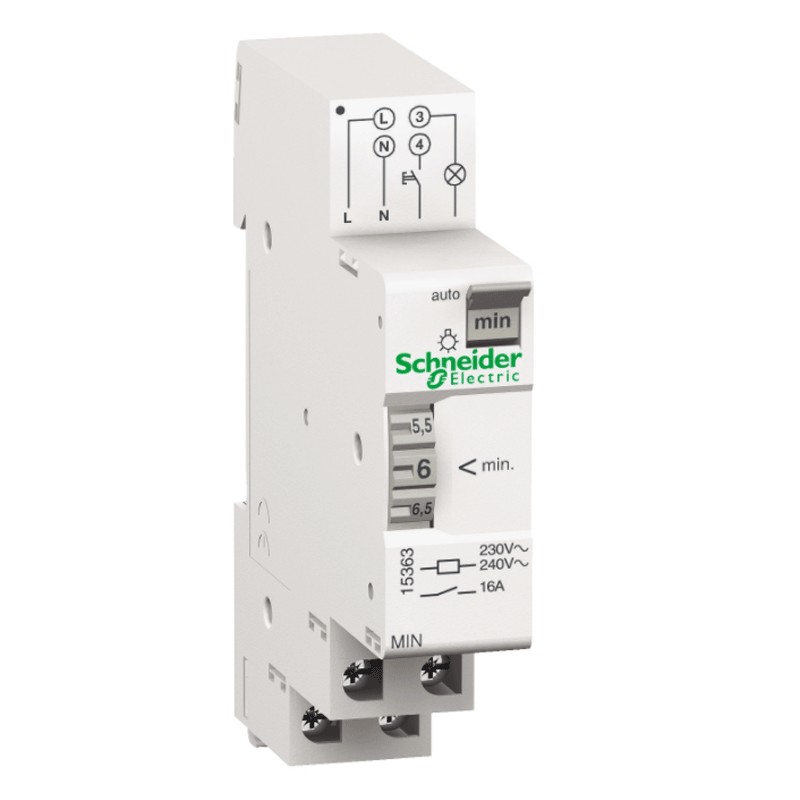

Schneider timer light adjustable scale 1-7 minutes 15363
SNR 15363
3303430153634
Schneider electromechanical adjustable timer for staircase light, with the following features:
- Rated operating voltage [Ue] 230 V "AC" at "50 Hz".
- Timing: Adjustable 1-7 minutes
- Maximum switching current 16 A - 230 V "AC" pf = 1
- Maximum power consumption in VA 1
- DIN rail mounting bracket
Schneider timer light adjustable scale 1-7 minutes 15363
€22.13
€22.13
Tax included
Tax included
Items Available: 38
: 31
Features:
- Schneider Series
- Application Building
- Color White (RAL 9003)
- Steps 9 mm 2
- Connections - terminals Screw terminals - <= 6 mm²
- Weight 84 grams
Dimensions:
- Width 18 mm
- Height 83 mm
- Depth 68 mm
Load type:
- Parallel compensated fluorescent tube 14 x 40 W
- Parallel compensated fluorescent tube 10 x 58 W
- Fluorescent tube, parallel compensated 3.0 x 100 W
- 230 V AC halogen lamp 2300 W
- 230 V AC halogen lamp 2300 W
- Fluorescent compact lamp 2300 VA
- Compact fluorescent lamp 21 x 7 W
- Compact fluorescent lamp 13 x 11 W
- Compact fluorescent lamp 10 x 15 W
- Compact fluorescent lamp 7 x 20 W
- LED lamp < 2 W 30 W
- LED lamp > 2 W 300 W
Funziona perfettamente, io lo sto usando come temporizzatore luci
Tutto ok. Consegna rapida. Oggetto come da descrizione.
ok o----------------------------------------------------------k
très bon produit, robuste et tarif compétitf
produit conforme et prix raisonnable. je recommande
Data sheet
- Type:
- Timers
- Version:
- Staircase lights
- Installation:
- Din
