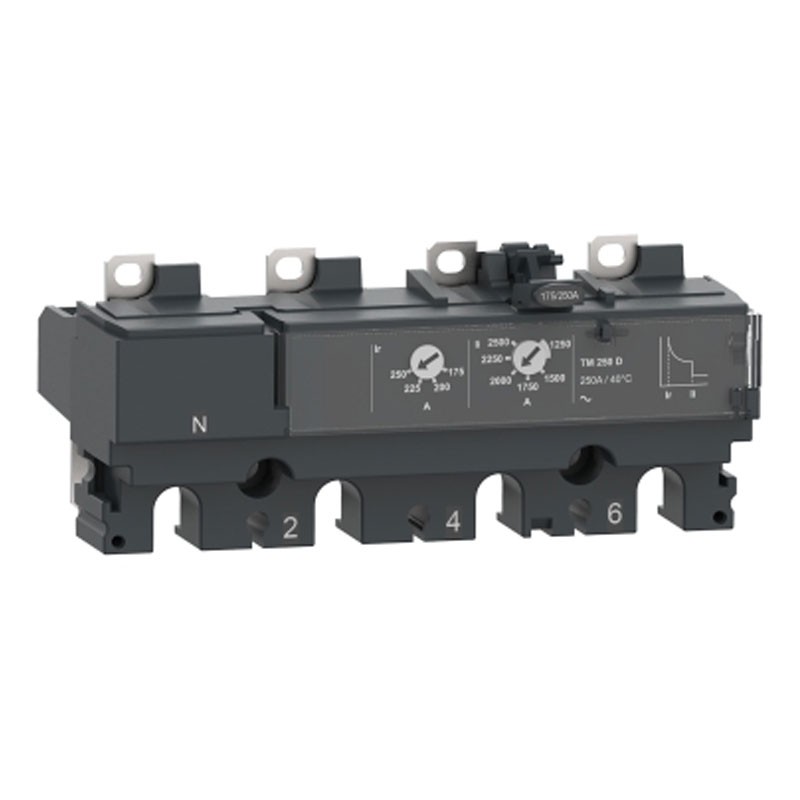

Schneider ComPacT TM200D NSX250 200A 4P C256TM200 Disconnect Switch
SNR C256TM200
3606482000032
Schneider ComPacT TM-D release with the following characteristics:
- Type of product or component: Control unit
- Number of poles: 4
- Release technology: magneto thermal switch
- Rated release current: 200 A at 40 °C
- Mains frequency: 50/60 Hz
- Rated operating voltage: 690V AC 50/60 Hz
- Degree of protection IP40 in accordance with IEC 60529
- Operating ambient temperature: -25/+70 degrees
- Storage temperature: -50/+85 degrees
Schneider ComPacT TM200D NSX250 200A 4P C256TM200 Disconnect Switch
€603.41
€603.41
Tax included
Tax included
Items Available: 1
Frequently bought together
TM200D is a 4-pole 3D thermal-magnetic circuit breaker used on ComPacT NSX 250 circuit breakers.
This 200A thermal-magnetic circuit breaker is the optimum choice for all distribution applications.
Features:
- Protective functions of the circuit breaker: LI
- Network type: Alternating current
- Switch mounting mode: fixed
- Ir regulation type (thermal protection): Adjustable
- Description of protected poles: "3D"
- Neutral position: left
- Trip protection functions: LI
- Protection type: L : for overload protection (thermal) - I : for short-circuit protection (magnetic)
- [IR] Thermal protection setting: 0.7 to 1 x In
- [TR] Thermal protection timing type tr: Fixed
- [TR] Long delay protection timing: 120...400 s at 1.5...15 x In - 15 s at 6 x Ir
- Neutral protection settings: No protection ("3D")
- Differential protection: Without
- Reference Standards: EN/IEC 60947-2
- Protection class against electric shock: Class II
- Pollution degree: 3 in accordance with IEC 60947-1
There are no reviews
Data sheet
- Type: Under-voltage Releases
- Poles: 4P
- Amps: 200A
