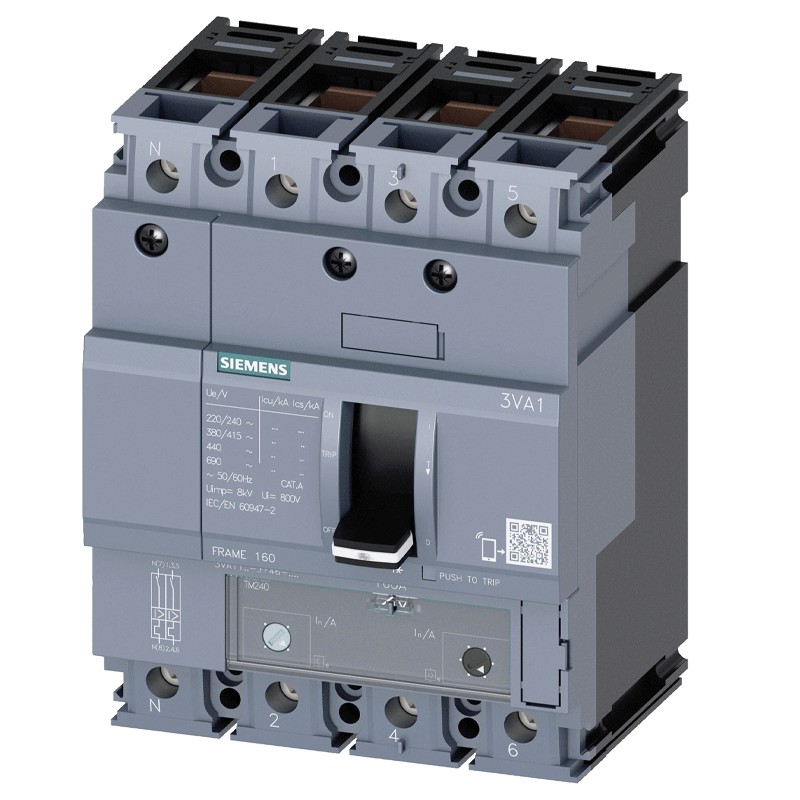

Siemens 3VA11 160A 4 poles 25KA 3VA11163GD420AA0 moulded case circuit breaker
SIE 3VA11163GD420AA0
Siemens moulded case circuit breaker, series 3VA1, with the following characteristics:
- Rated insulation voltage 800 V
- Rated DC operating voltage 600 V
- Breaking capacity 25 kA
- Rated permanent current Iu 160A
- 4 poles
€508.13
€508.13
Tax included
Tax included
Items Available: 3
: 2
Frequently bought together
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens Series
- Rated insulation voltage 800 V
- Rated DC operating voltage 600 V
- Breaking capacity 25 kA
- Rated permanent current Iu 160A
- 4 poles
- Power loss at nominal current value with AC in warm operating state per pole 12.67W
- Max power dissipation 38 W
- Mechanical service life (switching cycles) typ. 20,000
- Height 130 mm
- Width 101.6 mm
- Depth 70 mm
- Net weight 1.2 kg
- Type of conductor cross-sections that can be connected for flat busbar connection / min 12 x 1 mm
- Type of conductor cross-sections that can be connected for flat busbar connection / max 17 x 6.5 mm
- Degree of protection front side IP40
Ambient temperature
- During operation / min -25 °C
- During operation / max. 70 °C
- During storage / min -40 °C
- During storage / max. 80 °C
Data sheet
- Type: Switches
- Poles: 4P
- Breaking capacity: 25KA
- Amps: 160A
