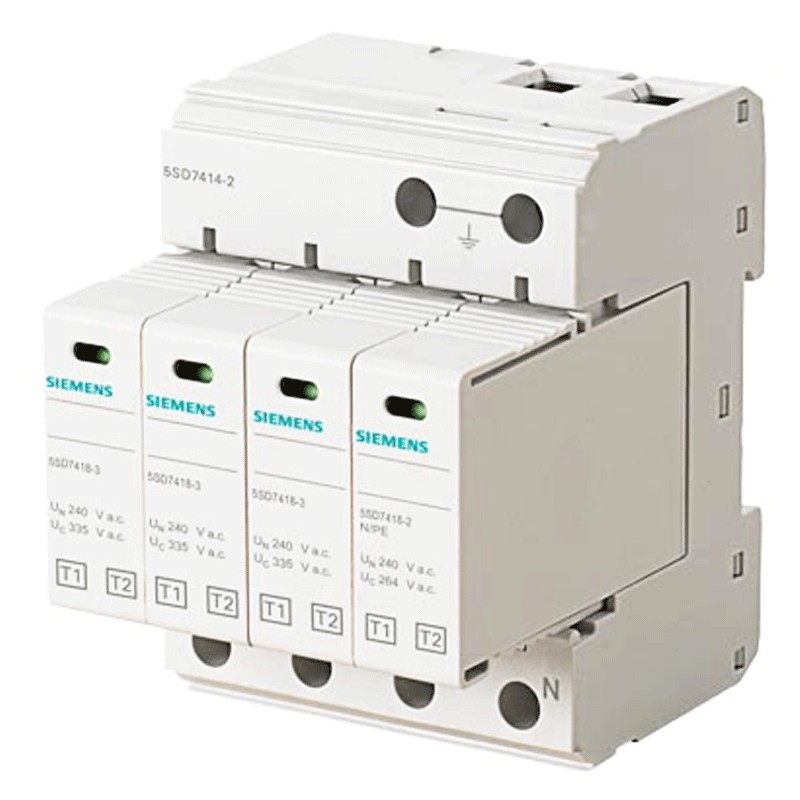

Siemens SPD 4-pole lightning rod TT/TN-S 50KA type 1/2 5SD74142
SIE 5SD74142
4001869427645
Siemens SPD T1/T2 atmospheric overvoltage protector/discharger, with the following characteristics
- Operating voltage 230 Vac
- Type of distribution system TT, TN-S
- Permanent operating voltage (max.) 335 V - between N and PE 264 V - between L and (PE)N 335 V
- Maximum impulse discharge current 50 kA
- Total discharge impulse current / per (8/20) µs 50 kA
- Total lightning impulse current / for (10/350) µs 50 kA
- 4 modules
- Pluggable protection modules 3+1
- Contacts 3+N/PE
- 4 poles
- Type 1/2
Siemens SPD 4-pole lightning rod TT/TN-S 50KA type 1/2 5SD74142
€420.77
€420.77
Tax included
Tax included
Items Available: 56
: 26
The surge arrester is an instrument that can be mounted inside the electrical panel, therefore upstream of the home system. Its use allows you to put in protection the electrical system on which it is installed.
The surge arrester will protect the entire system from surges, surges and peaks of electricity that may come from the operator of the power line, or from atmospheric phenomena such as lightning. These power anomalies can cause serious damage to the devices connected to the outlets.
A power surge can cause the hardware of a PC to break, or short circuit the boards of smartphones, tablets and home appliances. In the event that the flow of energy suddenly increases dramatically, human life can even be at risk due to electrocution.
To prevent this from happening, it is therefore advisable to fit a surge protector.
Surge arresters are divided into three classes:
In class 1 we find devices to be used in areas where adverse weather phenomena such as thunderstorms and lightning usually insist (for example in the mountains). In this case the arrester is mounted in the electrical panel and can withstand several surges without being damaged. The discharge takes place in 350 microseconds, so that the excess energy does not reach the system.
In class 2 there are surge arresters that protect the system from surges and spikes that may be caused by maintenance work on the line by the operator.
In class 3, on the other hand, we find those devices that offer even greater protection: in this case, the surge arrester is installed directly at the electrical outlets present in the home.
Features:
- Siemens series
- Type of distribution system TT, TN-S
- Operating voltage 230 Vac
- Permanent operating voltage (max.) 335 V - between N and PE 264 V - between L and (PE)N 335 V
- Maximum impulse discharge current 50 kA
- Total discharge impulse current / per (8/20) µs 50 kA
- Total lightning impulse current / for (10/350) µs 50 kA
- 4 modules
- Pluggable protection modules 3+1
- Contacts 3+N/PE
- 4 poles
- Type 1/2
- Designation of protection lines L-N, L-PE, N-PE
- Type of fixing DIN rail NS 35 mm
- Surge arrester size 4 U.M.
- Pollution degree 2
- Overvoltage category / according to IEC 61010-1 III
- Degree of protection IP / with connection of all terminals IP20
- Shock acceleration 30 gn
- Ambient temperature / during operation -40 °C ... 80 °C
- Ambient temperature / during storage and transport -40 °C ... 80 °C
- Relative humidity / during operation 5 % ... 95 %
- Installation altitude / for altitude above sea level / max. 2,000 m
- Width 71.2 mm
- Height 89.9 mm Depth 77.5 mm
- Depth 77.5 mm
- Net weight 634 g
- Electrical connection design screw terminal
- Stripping length 16 mm Tightening torque 4,3 ... 4,7
- Thread / screw connection design M5
- Optical signal design
There are no reviews
Data sheet
- Modules: 4
- Poles: 4P
- Maximum current: 50KA
- Version: 2
- Model: AC
- Circuit Protections: Surge protectors
