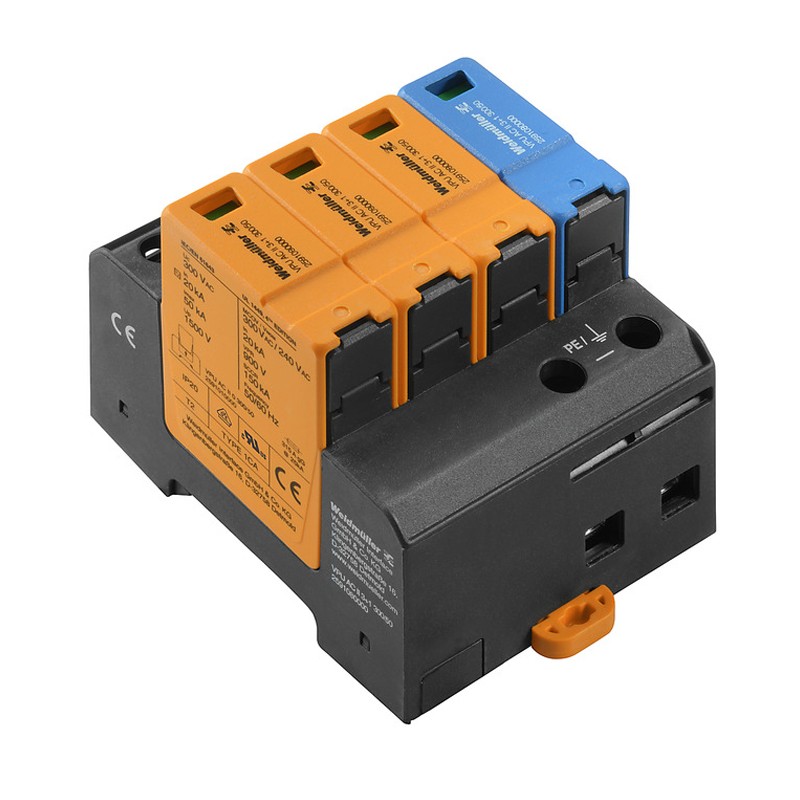

Weidmuller surge arrester 40KA 4P TYPE 2 2591080000
WEI 2591080000
4050118599855
Weidmuller surge arrester 40KA 4P TYPE 2 Low voltage, Surge protection, TN-C-S, TN-S, TT, IT with N, UP(L/N-PE) 1.5 kV.
Weidmuller surge arrester 40KA 4P TYPE 2 2591080000
€90.39
€90.39
Tax included
Tax included
Items Available: 135
: 17
Dimensions:
- Height (inches) 3.791 inch
- Width 72 mm
- Width (inch) 2.835 inch
- Net Weight 490 g
- Vertical position 96.3 mm
- Depth 68 mm
- Depth (inch) 2.677 inch
- Depth including DIN rail 76 mm
Features:
- Storage temperature -40 °C...85 °C
- Operating temperature -40 °C...85 °C
- Humidity Relative humidity 5-95%.
- Operating altitude 4000 m
- Ambient temperature (operating), max. 85 °C
- Nominal voltage UN 240 V
- VPR (N-PE) 1,000 V
- MCOV (N-PE) 305 V
- SCCR 150 kA
- In 20 kA
- SPD category TYPE 1CA
- Ambient (operating) temperature, min. -40 °C
- Certificate number (cURus) E354261
- MODE all modes
- VPR (L-L) 1,800 V
- VPR (L-N) 900 V
- VPR (L-PE) 1,000V
- AC voltage type
- Frequency range, max. 60 Hz
- Frequency range, min. 50 Hz
- Residual current capability Ifi No residual mains current to consider
- Class according to IEC 61643-11 Type II/III
- Class according to EN 61643-11 T2, T3
- Signalling contact No
- Energy coordination Type II, Type III
- Leakage current in Un 1 µA
- Discharge current Imax. (8/20 µs) (N-PE) 65 kA
- Discharge current Imax (8/20 µs) conductor-PE 50 kA
- Discharge current In (8/20 µs) N-PE 40 kA
- Discharge current In (8/20 µs) wire-PE 20 kA
- Rated short-circuit current ISCCR 50 kA
- Fuse No fuse required ?315 A gG, 250 A gG @50 kA Isccr, 315 A gG @25 kA Isccr
- Protection level UP (typ.) ? 1,5 kV
- Protection level Up to IN (N-PE) ? 1,5 kV
- Standards IEC 61643-11, EN 61643-11, UL 1449 Ed.4
- Number of poles 4
- Low voltage network TN-C-S, TN-S, TT, IT with N
- Combined overvoltage UOC 6 kV
- Temporary overvoltage - TOV 337 V
- Reaction time ? 25 ns, ? 100 ns
- Line voltage 230 V / 400 V
- Nominal voltage (AC) 230 V
- Maximum continuous voltage, Uc (AC) 300 V
- Max. continuous voltage, Uc (N-PE) 305 V
- SPD type T2, T3
- Voltage type AC
- Operating altitude ? 4000 m
- Flammability class UL 94 V-0
- Colours black, orange, blue
- Form Component housings; 4 TE, Insta IP20
- Degree of protection IP20 installed
- TS 35 rail
- Visual operating indicator green = ok, red = arrester defective - replace
- Segment Energy distribution
- Version Overvoltage protection.
Data sheet
- Modules:
- 4
- Poles:
- 4P
- Maximum current:
- 40KA
- Version:
- 2
- Model:
- AC
- Circuit Protections:
- Surge protectors
