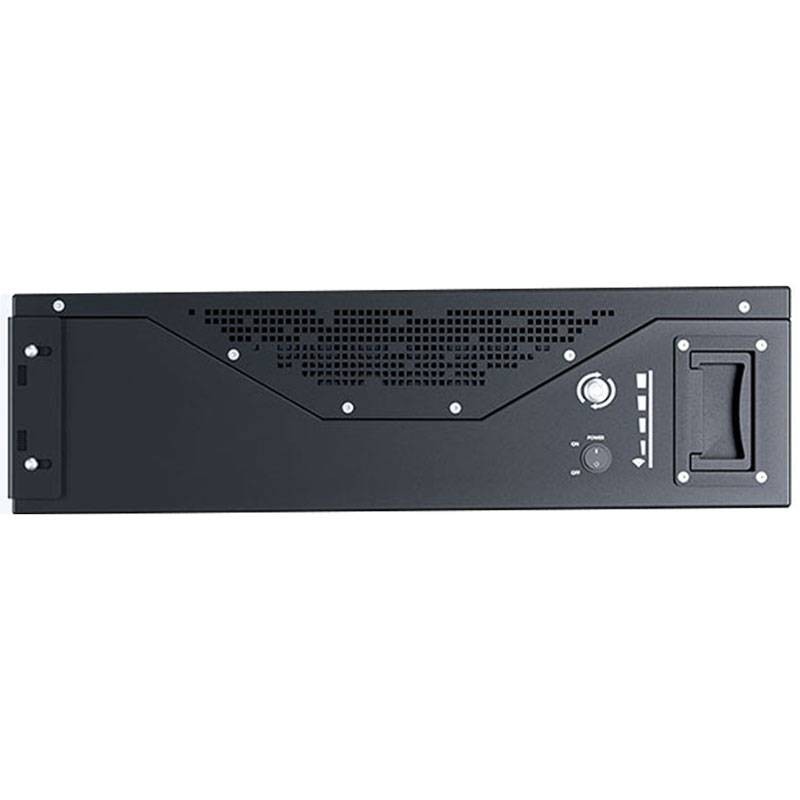

Riello RS 5300T battery for three-phase hybrid inverters 6WL3053000A
RST 6WL3053000A
8032993010515
Riello RS 5300T battery for RS Hybrid three-phase inverters offers a complete solution for PV storage and optimizing energy independence:
- 5.3 kWh battery
- Simple and intuitive installation (communication wiring, power and battery connections always included)

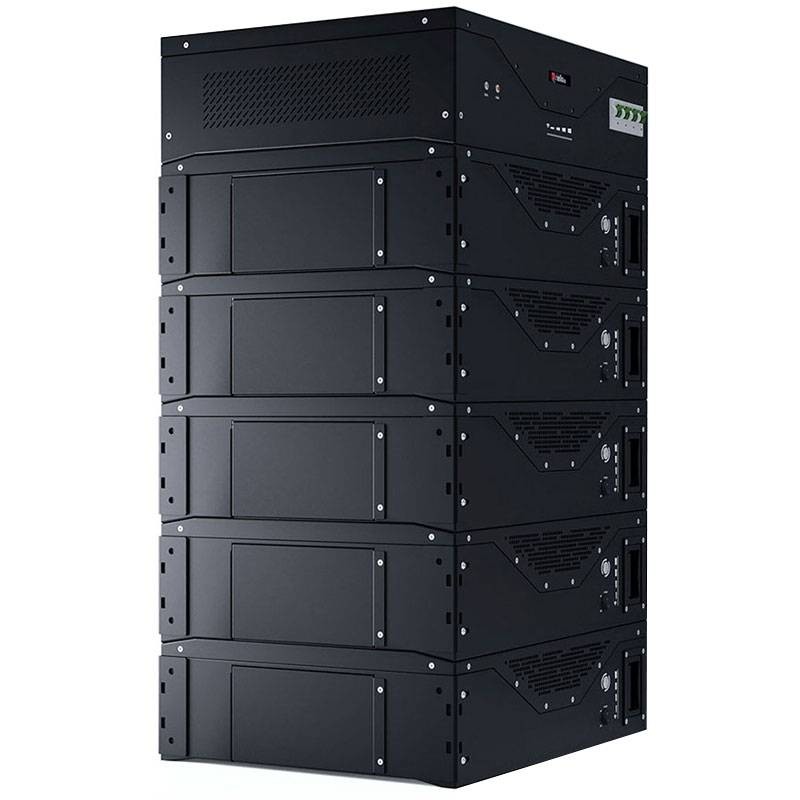

- Possibility to install them on the ground (stackable one on top of the other)
- Maximum storage capacity for each battery module 5.3 kWh
- Possibility to increase storage capacity as the system grows
- Minimum 4 and up to maximum 10 battery modules installable per inverter, for a maximum total capacity of 53 kWh
- Battery with lithium-ion LFP (Lithium-Iron-Phosphate) technology
- Batteries that can be monitored via BMS
Riello Solartech HV batteries self-configure automatically without the need for special and complex manual settings.
Batteries require the HV-RS BOX management unit for optimal charging management and coordination of energy to and from the inverter.
€2,708.40
€2,708.40
Tax included
Tax included
Out of stock
Incoming
Lithium-ion LFP (Lithium-iron-phosphate) technology enables their optimal use even at high depths of discharge (when and if needed) allowing optimized energy storage and reuse. Top service life and ease of installation make them advantageous and cost-effective. Each battery measures 580x474x170 mm (WxHxD) and weighs 51 kg, has a power rating of 5.3 kWh and a voltage rating is 51.2 V. IP20 degree of protection.
Features:
- Battery type LFP (LiFePO4)
- Nominal battery voltage Vdc 51.2
- Minimum battery voltage Vdc 45.5
- Maximum battery voltage Vdc 58.4
- Battery module energy
- kWh 5.3
- Battery module capacity Ah 105
- Usable battery capacity Ah 100
- Max. number of batteries in series 10
- Maximum charging current A 100 (150 for 30 s)
- Maximum discharge current A 100 (150 for 30 s, 200 for 5 s)
- Weight kg 51
- Dimensions (WxDxH) mm 580x474x170
- Degree of protection IP20 (indoor use only)
Life characteristics:
- Life cycles >8000 (@ 80% DoD, 25°C)
- Depth of discharge (DoD) Up to 100%
- Self-discharge rate 1% Month (@ STC 25°C) <3% Month (@ STC -10°C/+45°C)
- Maximum lifetime 10 Years (@25°C, periodic checks)
Connection:
- HV-RS BOX CAN communication protocol, RS232 (confidential)
Safety:
- Pre-charge functionality, HV fuse, Multi BMS firmware management, Contactor (Contactor) automatic
- Certifications EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019 (EMC), IEC 62619 (CB), CE, UN38.3
There are no reviews
Data sheet
- Type: Storage batteries
