Strengths:

• Plug & play installation
• Max DC power 150% overload
• LV lithium-iron-phosphate batteries
• Connection of up to 6 battery modules for a total capacity of about 30 kWh
• 100% discharge capacity
• Suitable for AC-side retrofit
• Integrated backup module up to Max power rating
• IP 65 degree of protection
• Natural ventilation
• Parallelable up to 3 units.


Riello Solartech: Hybrid inverters integrated with an Energy Storage system for residential applications:

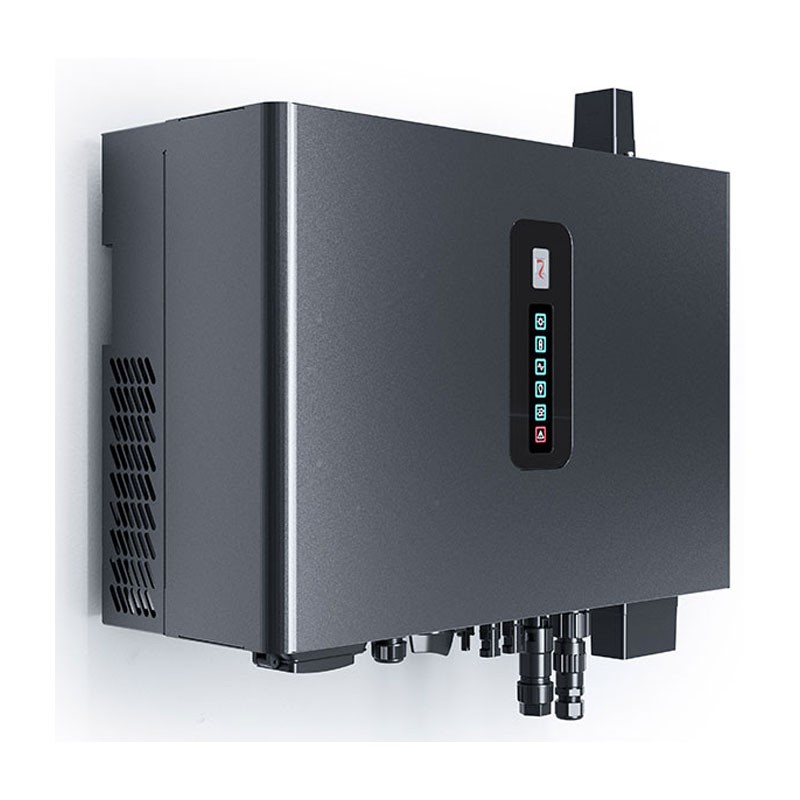

• RS Hybrid 3.6 and 6.0 single-phase, coupled with Lithium-ion battery modules, allow to expand the functionality of an On Grid photovoltaic system and at the same time to realize a backup with the possibility of dedicating a preferential line to certain loads in case of grid failure.

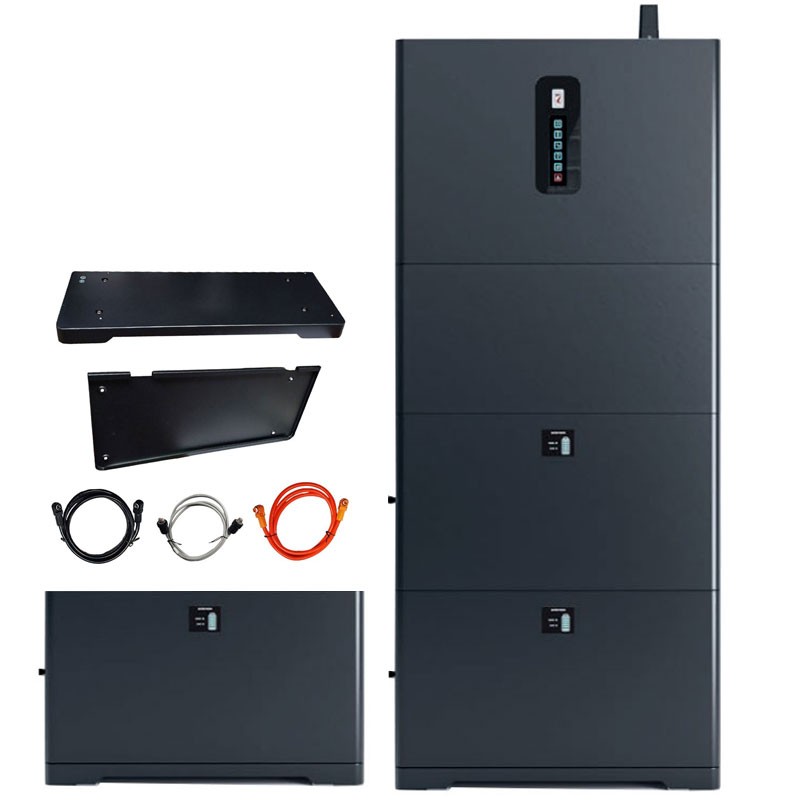

• With an attractive design and a simple plug & play installation, the system thanks to the energy storage (storage) scalable up to 6 modules of 5.12 kWh in parallel configuration, allows to store the energy produced by the photovoltaic system and not self-consumed, in order to use it in the evening hours or in periods of low solar irradiation. The system is thus independent of the power distribution grid and promotes energy savings.
• The single-phase RS Hybrid inverters, as in the previous generation, are available in 3.6 and 6 kW ratings, are equipped with DC-side disconnect switches and batteries, have category 2 surge arresters for immediate plug-and-play installation (requiring no additional field panels) and recharge the batteries themselves.
• To ensure maximum configuration flexibility, yield optimization and extended energy production time at all times, RS Hybrid inverters feature 2 PV inputs that converge on 2 MPPT trackers. The MMPPT trackers are independent and feature self-learning technology with wide range and input voltage and a low threshold for delivery to the grid.
• Ventilation is natural convection with large and efficient heat sink to ensure maximum heat transfer and total silence
• Finally, the inverters are equipped with a built-in backup module that, in the event of a grid failure, supports the load from the battery until the grid returns (tripping time less than 10ms).

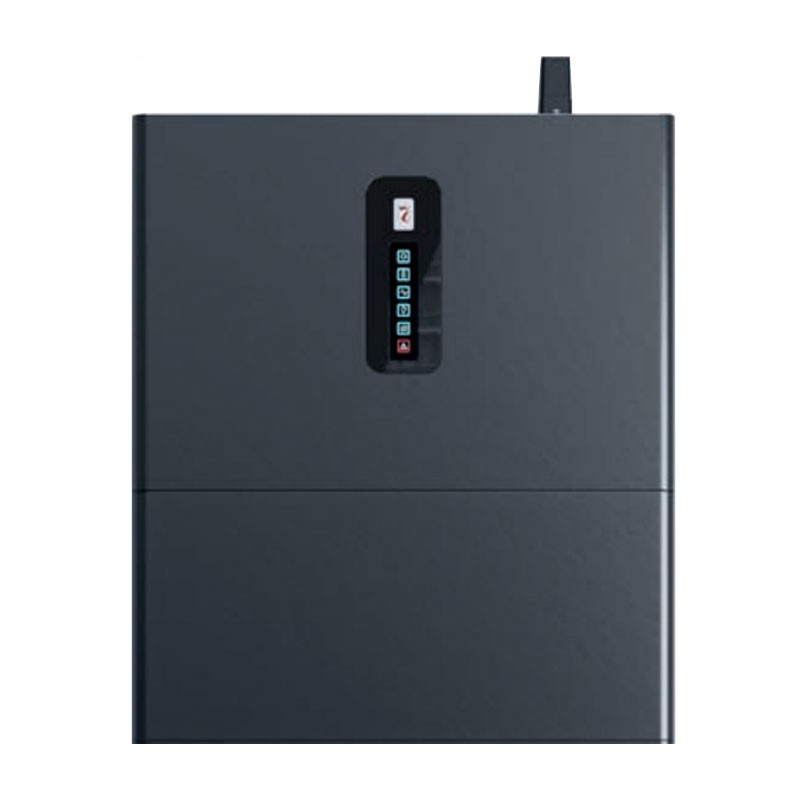

• To optimize backup, a line can be defined that supports the full rated power of the inverter. Inverter management is simple and intuitive: there are 6 LEDs on the front panel that allow you to quickly identify its operating status or signal any alarms
• There are multiple communication options with the inverter: Bluetooth, RS485 (ModBus), Wi-Fi and Ethernet (optional): all can interface with the configuration APP and monitoring software for real-time system status display and control (APP and supervision WEB portal)
• RS Hybrid inverters have an IP65 system protection rating, making it suitable for outdoor installation.

RS HYBRID inverters are available in 3.6 and 6 kW ratings, equipped with DC, AC and battery side disconnect switches and cat. 2 surge arresters for immediate plug & play installation without the need for additional field switchboards.

Features:


Efficiency:

• Max efficiency [%] (PV to grid) 96.6
• Max efficiency (AC to BAT) [%] 92.7
• Max efficiency (BAT to AC) [%] 92.8
• Nominal battery voltage [V] 51.2
• Allowable battery voltage range [V] 40 - 60
• Max charge/discharge current [A] 120 / 120

DC input:

• Maximum PV input power [W] 9000 (4500/4500)
• Maximum PV input voltage [V] 550
• Minimum PV input voltage [V] 70
• Nominal PV input voltage [V] 360
• Maximum input current (input A/input B) [A] 15 / 15
• Maximum short-circuit current (input A/input B) [A] 20 / 20
• Initial operating voltage [V] 90
• MPPT operating voltage range [V] 90 ÷ 520
• Number of MPPT trackers 2
• String per MPP tracker 1

AC output:

• Rated AC output power [W] 6000
• Maximum apparent AC power output [VA] 6000
• Maximum active AC power (PF=1) [W] 6000
• Maximum AC output current [A] 27.2
• Rated output voltage [V] 230
• Output voltage range [V] 230 ±5%
• Mains voltage range [V] 176 ÷ 264 (according to local standard)
• Rated mains frequency [Hz] 50 / 60
• Mains frequency range [Hz] 45-55 / 55-65
• Current harmonic distortion (THDi) [%] <5 (rated power)
• DC current injection [%] <0.5 In
• Power factor 1 @rated power (adjustable 0.8 inductive - 0.8 capacitive).

Backup:

• Rated output voltage [V] 230
• Output voltage range [V] 230 ±5%
• Rated output frequency [Hz] 50 / 60
• Output frequency range [Hz] 50 / 60 (±0.2 %)
• Rated output power [VA] 6000
• Rated output power [W] 5500 @ 51.2 V battery voltage
• Rated output current [A] 26
• Output voltage comp. DC [mV] ≤200
• Output overload capacity [%] ≥105 for 1 s
• Transfer time [ms] 10 (typical), 20 (maximum)
• THDV <3% (Rated R Load)

Protections:

• DC disconnect switch on PV array side Yes
• DC disconnect switch on battery side Yes
• Anti-islanding protection Yes
• DC reverse polarity protection Yes
• Ground fault detection Yes
• DC overvoltage protection Type II (VDR) Yes
• AC overvoltage protection Type II (VDR) Yes
• Residual current monitoring Yes
• AC overcurrent protection Yes
• AC short-circuit protection Yes
• Overheat protection Yes


General:

• Transformerless Type
• IP65 level of protection
• Battery input overvoltage category I
• Overvoltage category PV input II
• AC output overvoltage category II
• Protection class I
• Battery overcurrent protection DC circuit breaker
• Pollution degree PDIII per IEC60664-1 (internal reduced to PDII)
• Cooling Natural convention
• Operating temp. range [°C] -25 to 60 (up to 40 without derating)
• Storage temp range [°C] -30 to 65
• Relative humidity range [%] 0 ÷ 95
• Maximum operating altitude [m] 4000 (up to 2000 without derating)
• Noise level [dB] (@ 1m) <30
• Dimensions (WxDxH) [mm] 610x232x458
• Weight [kg] 31.7
• Weight (packed) [kg] 49
• Photovoltaic connection MC4 / H4
• Battery connection Dedicated DC connector
• Mode of connes. AC (mains and backup) Dedicated AC connector

Certificates:

• Grid IEC0-21:2022; NTS Type A 2.0 (UNE 217002:2020; RD647:2020), UNE 217001: 2020/RD244: 2019
• Safety IEC/EN 62109-1: 2010; IEC/EN 62109-2: 2011; IEC 62040-1:2017
• EMC IEC 61000-6-1/2/4: 2019; IEC 61000-6-3: 2021


Battery characteristics:


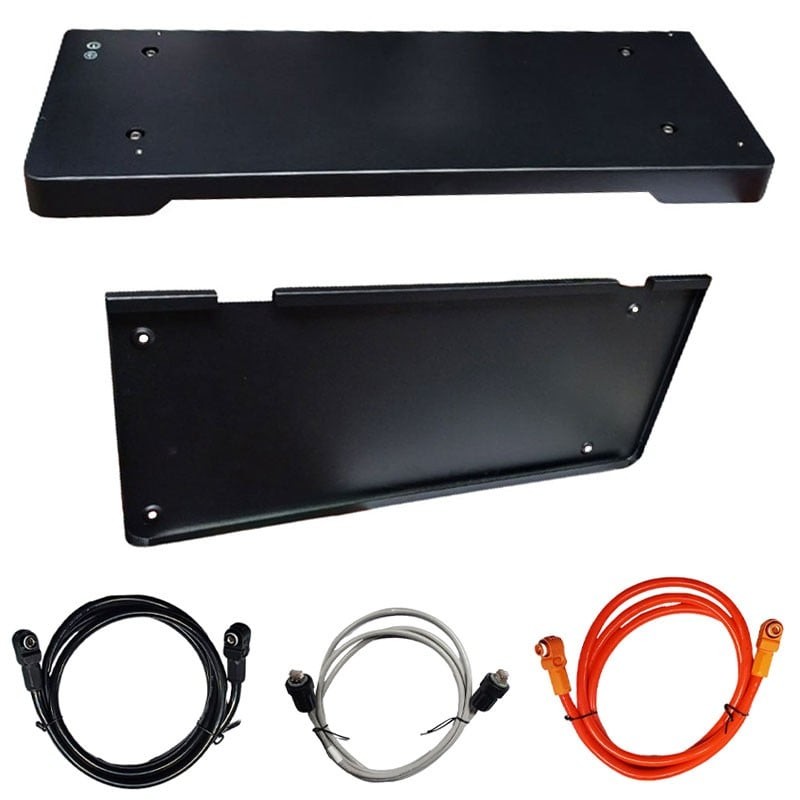

Lithium Ion, Iron, Phosphate Batteries:

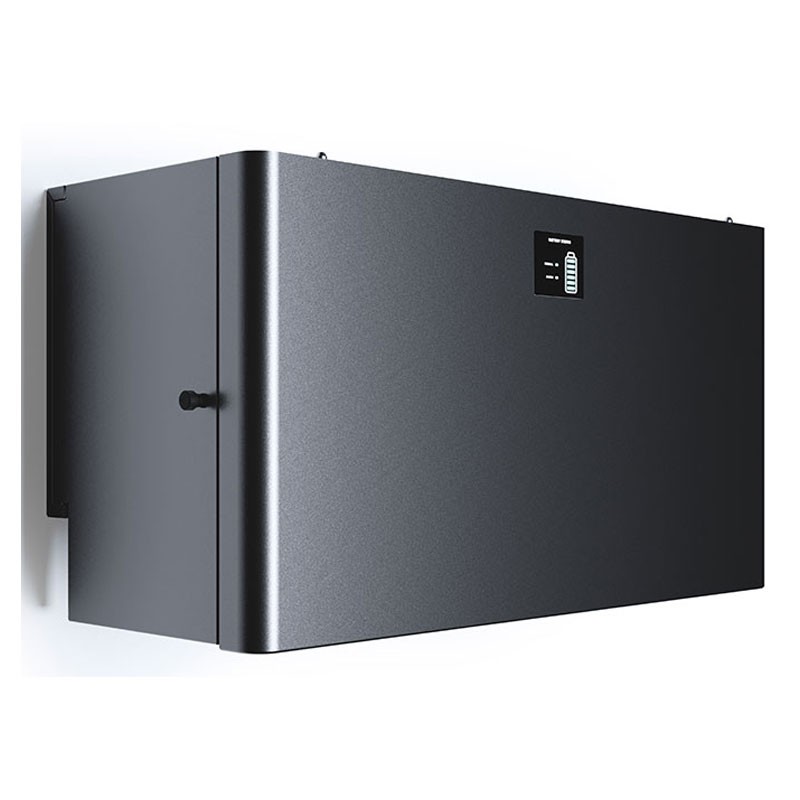

• Lithium-iron-phosphate ion batteries for the RS Hybrids' storage system are available in isolated low-voltage modules (51.2 Vdc) for enhanced residential safety and with a capacity of 100 Ah (5120 Wh)
• The system manages a scalability of up to six battery modules connected together in parallel, and the BMS (Battery Management System) is integrated into each individual battery module, this technological choice avoids the risk of a total lack of storage use in case of problems on a single battery module
• In addition, the BMS includes protection for overload, overcurrent, and overtemperature
• The batteries have a high discharge capacity and an operating temperature range of -20 °C to 55 °C.
• The entire system is safe and provides 100 percent protection for the end user by detecting possible tastes of the cell and/or other components.


Specifications:

• Battery type LFP (LiFePO4)
• Nominal battery voltage [V] 51.2
• Battery voltage range [V] 44.8 ÷ 58.4
• Battery module energy [kWh] 5.12
• Max charge/discharge current [A] 100 / 100
• Maximum parallel modules [Pz] 6
• Operating temperature range for charging [°C] 0 ÷ 45
• Operating temperature range for discharging [°C] -20 ÷ 55
• Number of cycles ≥4,000
• Dimensions (WxDxH) [mm] 610x252x330
• Weight (net) [kg] 54.5
• Overcurrent protection DC circuit breaker
• CAN communication protocol
• Certification IEC 62619:2017; EN 62619:2017; IEC 61000-6/2/4:2019; UN 38.3: Rev.7
