Disano street light 52W 4000K 6372 lumens 34050200
DIS 34050200
8012952148817
Disano LED street light Susa ME series:
- AC Voltage Type
- Voltage Min 220V - Max 240V
- Frequency Min 50 Hz - Max 60 Hz
- Wiring code CLD
- Power factor ≥0.9
- Rated current 700 mA
- Pole diameter 45-60 mm
- Luminous flux (output) 7895 lumen
- Power consumption (total) 54 Watt
- Colour temperature: 4000 Kelvin (natural light)
- Mechanical impact resistance IK07
- Degree of protection: IP66
- Energy class: C
Disano street light 52W 4000K 6372 lumens 34050200
€182.00
€182.00
Tax included
Tax included
Items Available: 62
: 40

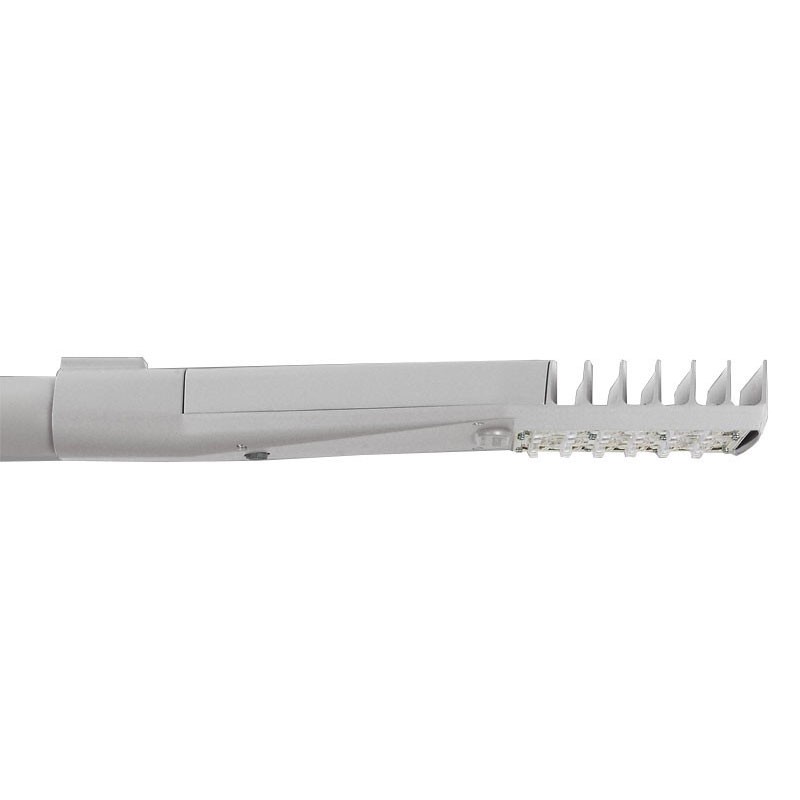

One of the most recent models of Disano's production for street lighting, Susa is a luminaire with a recognizable and clean design with a high performance in all contexts. Available in various versions: with street optics, for bicycle lanes and pedestrian crossings, it is equipped with latest generation LEDs that combine efficiency with light quality, with a color temperature of 4000K and CRI >80.
Strengths:
- Body: made of die-cast aluminium and designed with an aerodynamic section with a low wind-exposure surface. Cooling fins integrated in the cover.
- Optic: made of high-performance PMMA resistant to high temperatures and UV rays.
- Heat sink: the heat dissipation system is specially designed and manufactured to allow the LEDs to operate at temperatures suitable to guarantee optimum performance/yield and a long service life.
- Pole attachment: made of die-cast aluminium, it is equipped with grub screws for locking the armature. Suitable for 45-60 mm diameter poles.
- Painting: metal surface pre-treatment stage, painted with polyester powder, resistant to corrosion, salt spray and UV-stabilised.
Other technical features:
- Installation type: Pole and whip head
- Applications: Outdoor
- Luminous efficacy (lm/W) 146 lm/W
- Luminaire with very low flicker: uniform light for greater visual safety
- LED luminous flux maintenance: 80000 hours, L 80, B 10
- Ambient temperature: -30/+40°C

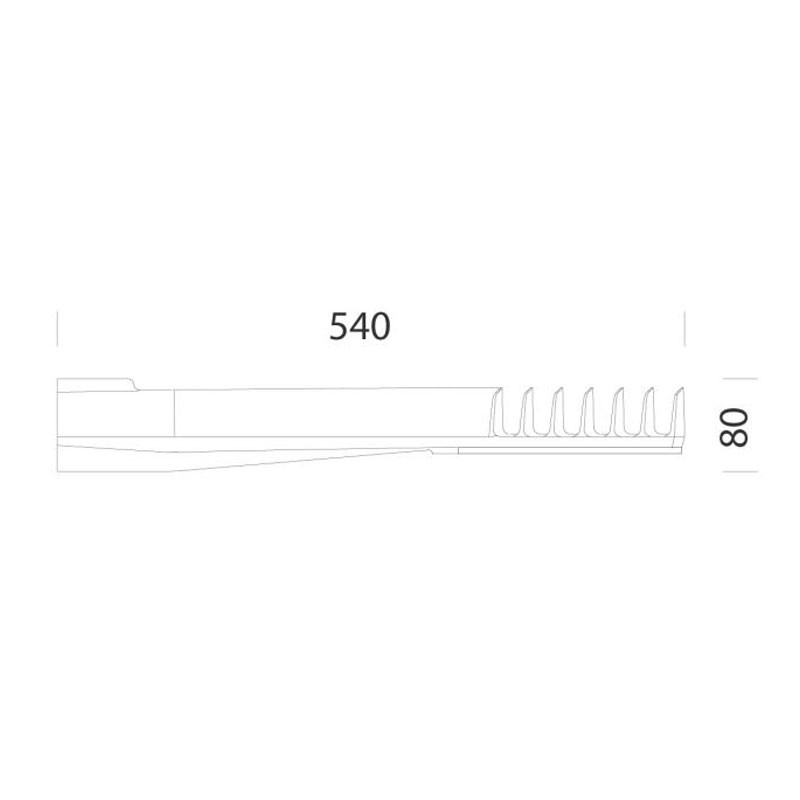

- Dimensions: Length 540 mm - Width - 156 mm - Height 80 mm
- Weight (kg) 2.5 kg
- Wind exposure area (mm): L 32600 mm², F 65900 mm²
- Protection: (differential/common) (EN 61547): 6 kV, 10 kV
- Insulation Class II
- Control and regulation None
- Distribution type Medium / Comfort
- LED light source
- CRI 70
- Colour: grey
- Photobiological safety class RG0 Ethr Markings and tests CE, ENEC
- Reference standards EN60598-1. They have a degree of protection according to EN60529.
There are no reviews
Data sheet
- Colour:
- Grey
- Type:
- Street lights
- Staining:
- Natural
- Degree of protection:
- IP66
- Watts:
- 51 to 100W
- Colour temperatures:
- 4000 Kelvin
