Mounting KIT for Air Conditioners 2.5/3.5 kW 9000/12000BTU 6 meters
KIT 90-12
The 2.5/3.5 kW (9000/12000 BTU) Air Conditioner Mounting Kit is designed for safe and reliable installation of the air conditioner's outdoor and indoor units. It includes high-quality components to ensure durability, electrical safety, and perfect management of condensate and refrigerant piping.

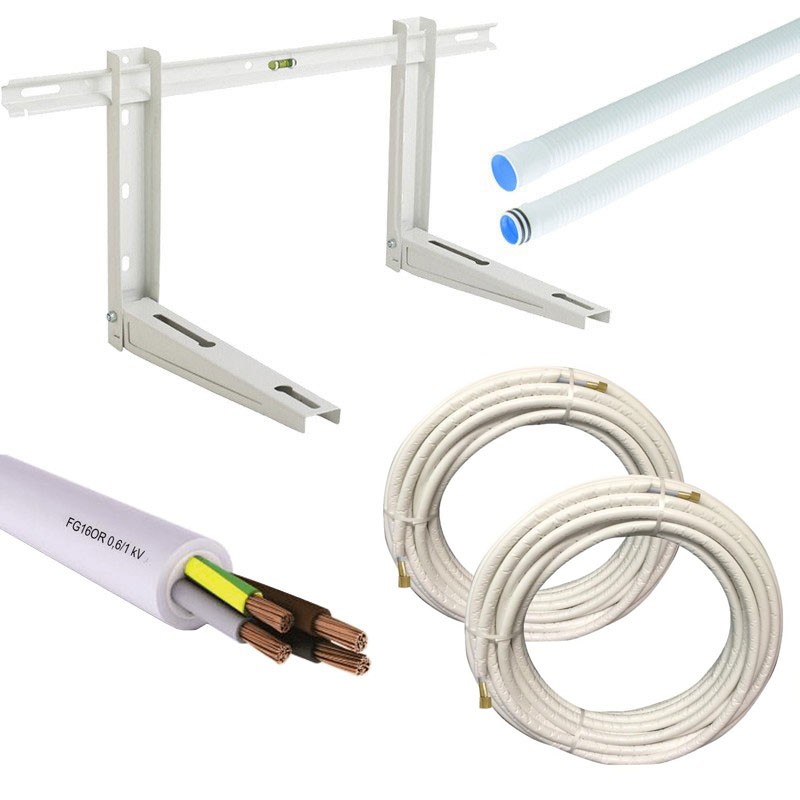

The kit consists of the following items:
-
Sturdywall brackets for attaching the outdoor unit (N080E)
-
10 meters of double-insulated flame-resistant cable (5x1.5 mm² FS18R5G1.5BV750)
-
10 meters of Ø 17-20 mm condensate hose (NTD17-20.10)
-
Tecnogas FAST PIPE fitting kit with 6-meter pipes (1/4 - 3/8 inches 000011074V2)
With the kit you save compared to individually purchased items
€202.19
€202.19
Tax included
Tax included
Free Shipping
Items Available: 2093
: 158
Frequently bought together
Products included in the Mounting Kit

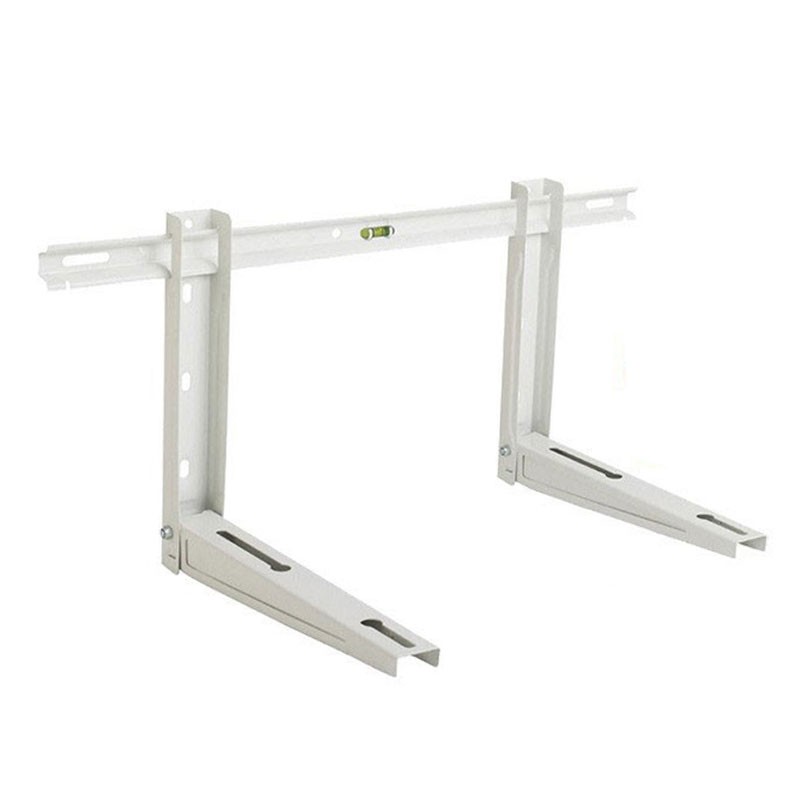

Adjustable Bracket for Outdoor Unit
| Feature | Description |
|---|---|
| Material | Epoxy powder coated steel |
| Installation Type | Wall bracket for outdoor unit of 9000 and 12000 BTU air conditioners |
| Max Certified Capacity | 80 Kg |
| Tested Capacity Max | 240 Kg |
| Delivery | Supplied disassembled |
| Thickness | 12/10 |
| Sliding Bracket | Easy and practical to install |
| Bubble Level | For secure fixing included |
| Anti-vibration feet | Included |
| Fastening screws | Included |
| Bubble | Included |

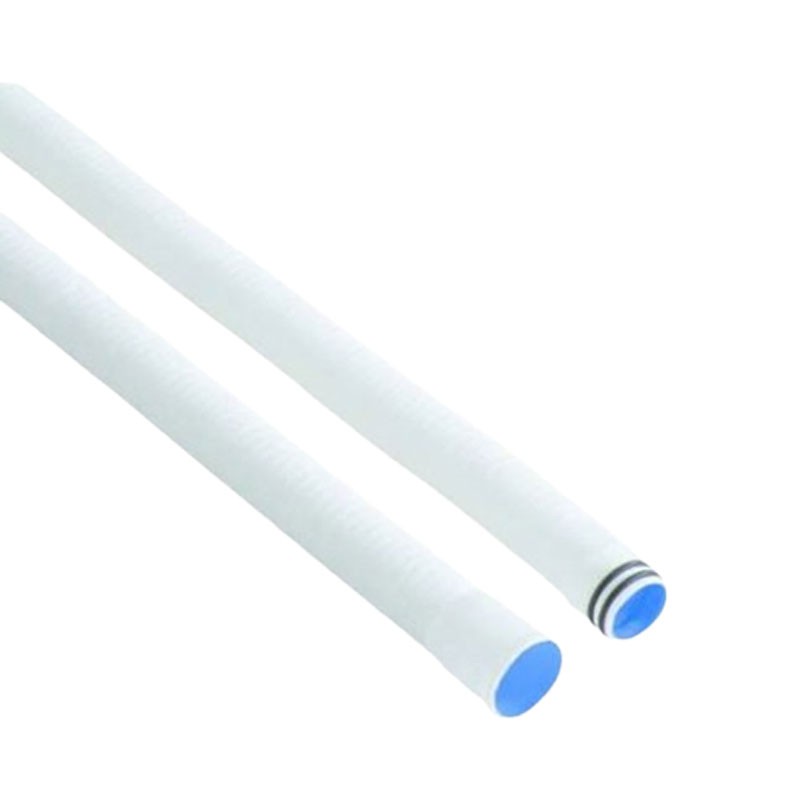

Flexible Condensate Hose
| Feature | Description |
|---|---|
| Type | Corrugated BIESTRUSO anti-crushing hose |
| Material | Double layer of Polypropylene |
| Stabilization | UV-resistant |
| Diameter | 17-20 mm |
| Length | 10 meters |
| Operating temperature | -30°C / +75°C |
| Use | Ideal for underground installation |

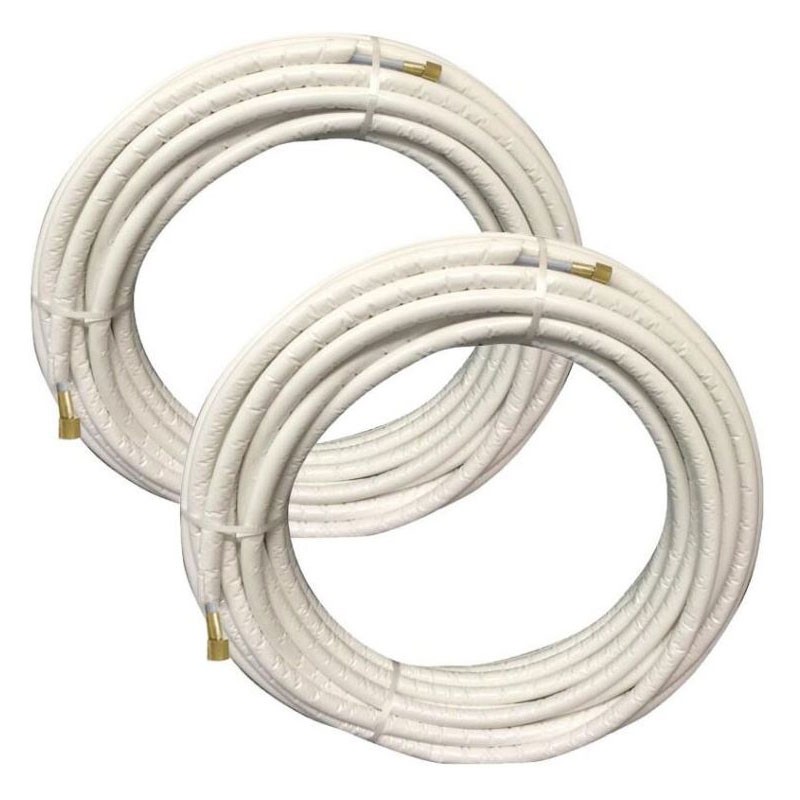

Tecnogas Fast Pipe Kit
| Feature | Description |
|---|---|
| Composition | 2 pipes of 6 meters each |
| Connections | Female-female |
| Pipe diameter 1 | 1/4" (6.35 mm) |
| Pipe diameter 2 | 3/8" (9.52 mm) |
| Type of fittings | Conical with copper gaskets included |
| Compatibility | Suitable for 9000/12000 BTU air conditioners |
| Insulation material | Closed-cell polyethylene foam |
| Protective layers | Polymer barrier, 4-layer aluminum film |
| Reinforcement | Polyamide long-chain, high-tenacity synthetic fiber |
| Protection | Anti-UV and anti-IR coating, anti-UV film |
Flameproof cable
| Feature | Description |
|---|---|
| Type FS18OR18 | Double insulated flame-resistant electrical cable |
| Conductor cross section | 5 x 1.5 mm² with yellow/green |
| Length | 10 meters |
| Insulation | Double layer for added protection |
| Fire resistance | Flame-retardant material |
| Use | Suitable for electrical installations and air conditioning connections |
Ça vaut pas grand chose. Les équerres sont en tôle trop fine et se plient sous le poids d’un groupe de 3,5 kw et les liaisons qui ne sont apparemment pas en cuivre, ne sont pas recoupables
contient le nécessaire pour l'installation
Je suis complètement satisfait. Tout est très bien.
Kit complet et de bonne qualité , montage facile
Exact à mes attentes super matériel très conrent
Parfait conforme
Reçu avec la clim
Bien emballé
Efficace et complet.
Je recommande.
Bien emballé.
OK... ça se pose dans le mur et ça supporte le matériel, c'est ce qu'on lui demande.
Je n'ai pas reçu le kit complet.
Problème avec la livraison
Reçu conforme et en très bon état de fonctionnement
Data sheet
- KIT: Mounting Kit
- Type: Multilayer pipes
