Samsung CEBU Trial Split Air Conditioner 9000+12000+18000BTU WIFI

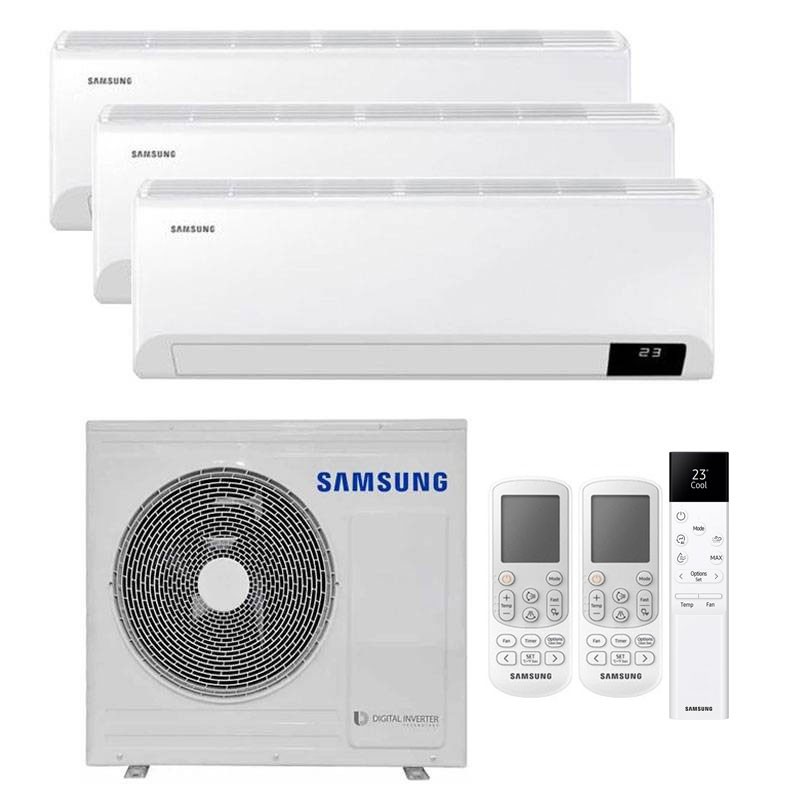

Samsung CEBU 9000+12000+18000BTU (2.5-3.5-5.0kW) Inverter Trial Split Air Conditioner with Inverter technology, R32 gas and A++ energy class. Compact and stylish design with smart connectivity and advanced purification, ideal for modern environments. Set consists of:
-
1 outdoor unit 8.0KW with 4 connections (AJ080TXJ4KG/EU)
-
1 Split indoor unit 9000BTU 2.5KW (AR09TXFYAWKNEU)
-
1 Split Indoor unit 12000BTU 3.5KW (AR12BXFYAWKNEU)
-
1 Split Indoor unit 18000BTU 5.0kW (AR18BXFYAWKNEU)
-

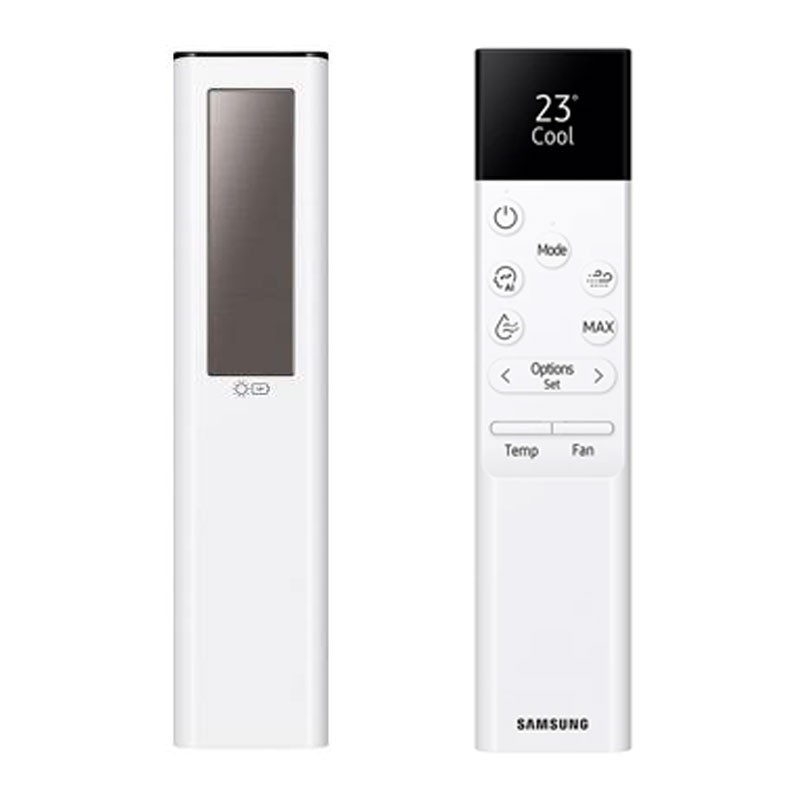

3 standard remote controls included
-
Built-in Wi-Fi control
-
New R32 gas included
-
Energy Class Cooling/Heating A++/A+

Tax included
Air conditioners of the same series
Samsung CEBU Trial Split Air Conditioner

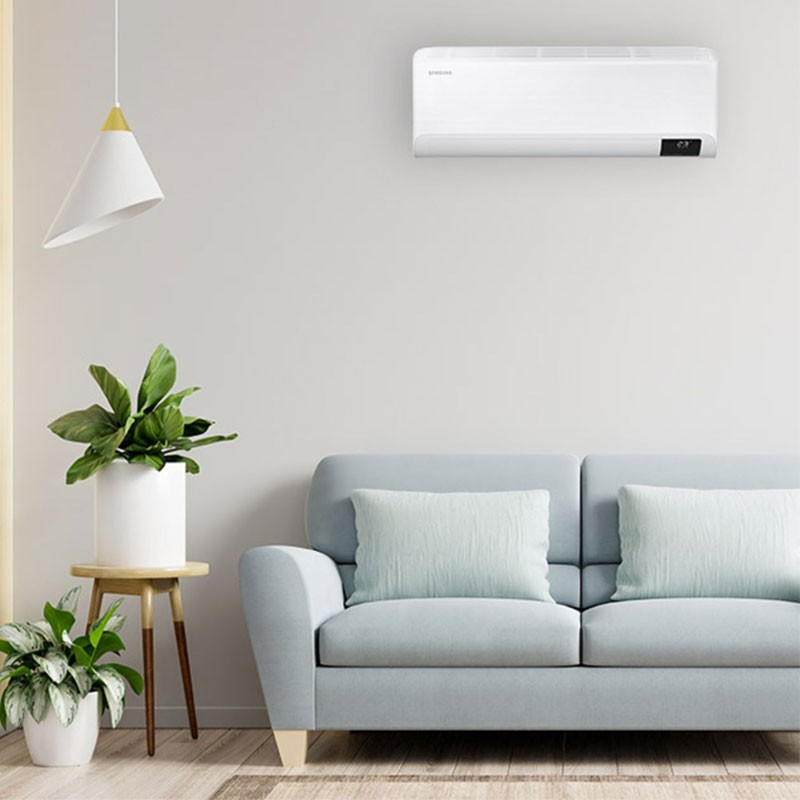

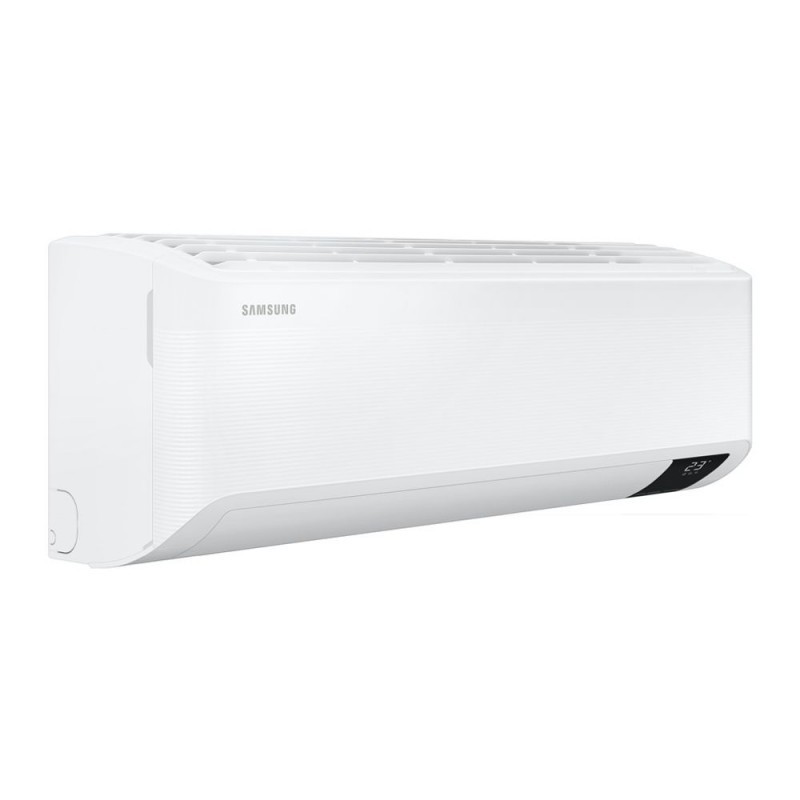

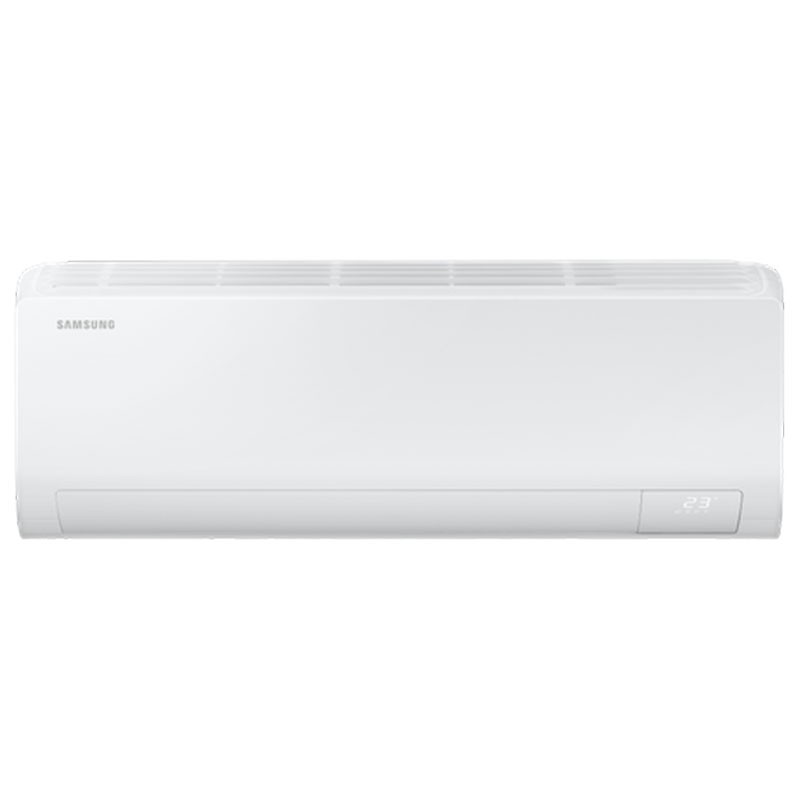

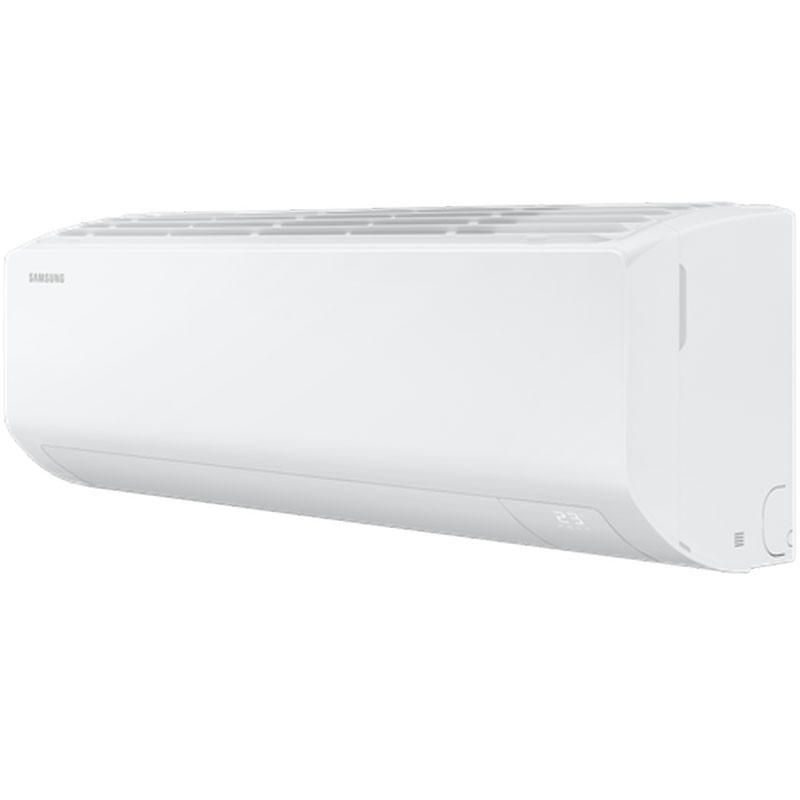

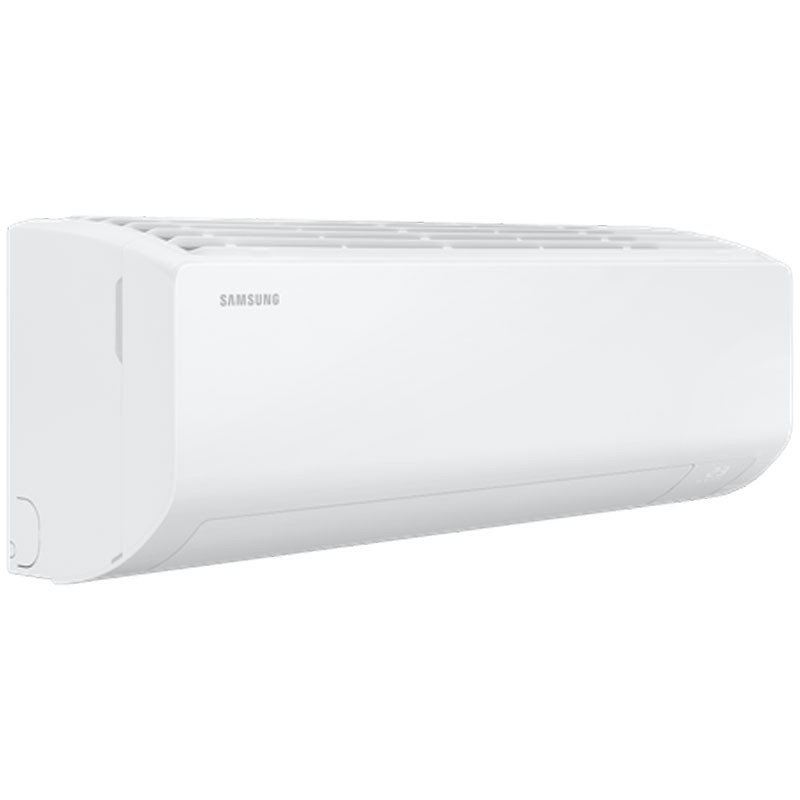

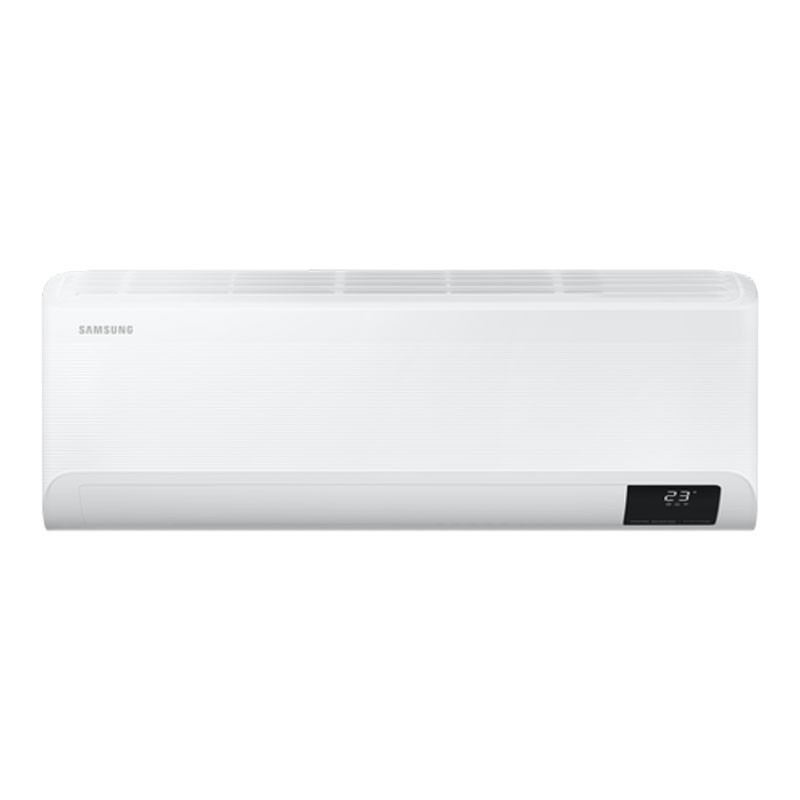

The Samsung Cebu air conditioner is distinguished by its soft, compact shape. Rounded corners and a wraparound front panel combine with a large black display, giving it a modern and sophisticated look. Its compact size makes it ideal for rooms of any style and makes it easy to install and maintain.
Strengths of the Samsung Cebu Trial Split
Smart connectivity
With the SmartThings App, you can control the air conditioner directly from your smartphone, setting the temperature, operating modes, and scheduling on/off. It is compatible with leading voice assistants, offering easy control via voice commands. Thanks to the Artificial Intelligence feature, the device learns your habits to provide you with maximum comfort in every situation.
Advanced Air Purification
The Easy Filter Plus system captures contaminants and allergens, ensuring clean, healthy air. Located on the top of the indoor unit, the filter is easily accessible and washable. The Auto Clean function prevents the buildup of moisture, bacteria and odors, improving air quality and the life of the unit.
Quiet operation
Designed to minimize vibration and noise, the Samsung Cebu air conditioner ensures total comfort even at night. The indoor units achieve a noise level of only 19 dB(A), creating a quiet and relaxing environment.
Ideal applications
Perfect for apartments, offices and residential environments, the Trial Split Samsung Cebu offers exceptional performance and advanced comfort, making it ideal for modern, high-tech spaces.
Samsung Cebu Trial Specifications
Cebu Wifi 9000 BTU Indoor Unit
Feature | Detail |
---|---|
Cooling Capacity | 2.5 kW |
Heating Capacity | 3.2 kW |
Dimensions (WxHxD) | 820x299x215 mm |
Weight | 9.1 kg |
Treated air (max) | 10.5 m³/min |
Sound Power Level | 54 dBA |
Cebu Wifi 12000 BTU Indoor Unit
Feature | Detail |
---|---|
Cooling Capacity | 3.5 kW |
Heating Capacity | 3.5 kW |
Dimensions (WxHxD) | 820x299x215 mm |
Weight | 9.1 kg |
Processed air (max) | 10.9 m³/min |
Sound Power Level | 56 dBA |
Cebu Wifi 18000 BTU Indoor Unit
Feature | Detail |
---|---|
Cooling Capacity | 5.0 kW |
Heating Capacity | 6.0 kW |
Dimensions (WxHxD) | 1055x299x215 mm |
Weight | 11.5 kg |
Treated air (max) | 16.5 m³/min |
Sound Power Level | 58 dBA |

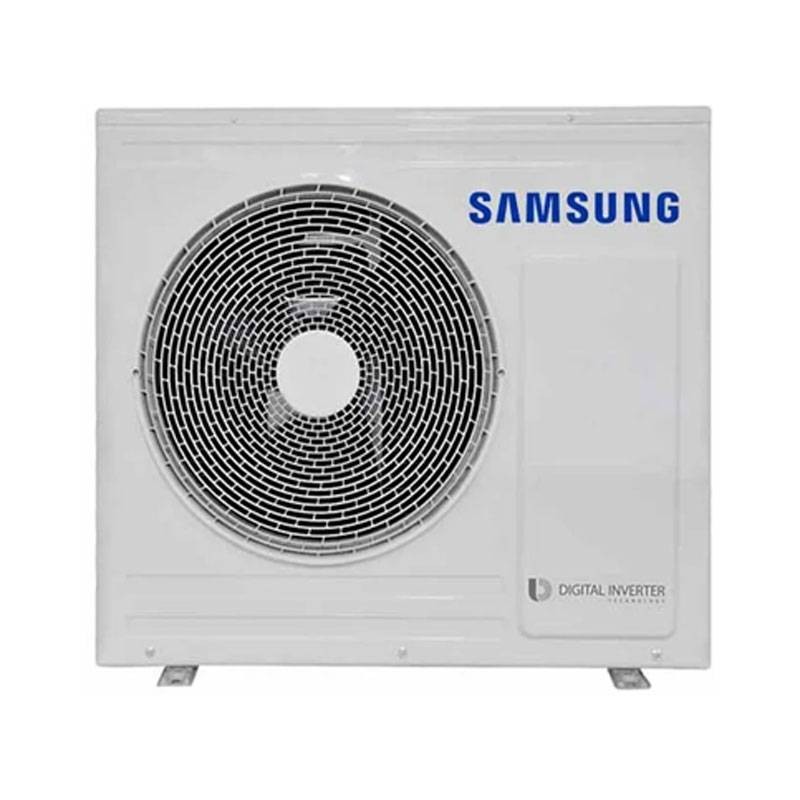

External unit square 8kW
Feature | Detail |
---|---|
Refrigerant Type | R32 |
Max Matching Indoor Units | 4 |
Rated Capacity (Cooling / Heating) | 8.0 / 9.3 kW |
Sound Pressure (Max) (Cooling/Heating) | 48 / 50 dBA |
Sound Power (Max) | 64 dBA |
Operating Range Cooling | -10°~46°C |
Heating Operating Range | -15°~24°C |
Power Supply | 220~240 V / 50 Hz / 1 F |
Dimensions (WxHxD) | 880x798x310 mm |
Weight | 57.5 kg |
Connection Pipes (Liquid) | Ø 4x6.35 (1/4") |
Connecting Piping (Gas) | 2 x Ø 9.52 (3/8") + 2x 12.70 (1/2") |
Length of Piping (Max distance U. Internal-U. External) | 25 m |
Piping Length (Min per unit) | 3 m |
Piping Length (Max Total) | 70 m |
Piping Length (Max without adding refrigerant) | 30 m |
Max Height difference (U. indoor-outdoor) | 15 m |
Max height difference (U. internal-internal) | 7,5 m |
Refrigerant Charge | 2000 g |
Additional refrigerant charge | 20 g/m |
tCO2e | 1,35 |
Data sheet
- Air conditioners: Wall-mounted
- Gas: R32
- Power: 9+12+18 BTU
- System: Trialsplit
- WIFI: Integrated
- Room Size: 27m²+35m²+55m²
- Energy class: A++
- Series: Cebu
