Advantages:

• WindFree mode to avoid direct air jets thanks to 9,000 microholes
• Guaranteed comfort thanks to the humidity sensor
• New fins with a depth of 66 mm, increased air delivery
• Air supply with individually adjustable air control blades between ߤ3 and 75°.
• Pre-cut for external air inlet; Fan with inverter motor; Turbo Mode available
• Built-in condensate drainage pump (750 mmH2 O); antibacterial filter included
• Communication with "Nasa" protocol; manageable by app via Smartphone and Tablet
• Panel with reduced dimensions 620x620
• Power supply: Single-phase 220 V - 50 Hz
• Compressor outdoor unit Inverter Twin Rotary (except for 2.6/3.5kW Single Rotary models)



Technical features



Cooling:

• Min/Max Capacity: 3.5 kW 0.88/4.5
• Absorption Cooling: 2.00 kW
• SEER 7.0
• Energy Class: A++
• EER n/a
• Indicative annual energy consumption kW/a N/A
• performance capacity 1.50 - 7.10 - 8.70

Heating:

• Min/Max Capacity: KW 4.0 (1.0-4.8)
• Absorption Heating: 2.10 kW
• SCOP: 4.3
• Seasonal energy efficiency class A+
• COP 3.74
• Indicative annual energy consumption: kWh/a N/A

Indoor Unit Features:

• Dimensions: (WxHxD) 575x250x575 mm
• Weight 12Kg
• Indoor Unit Air Handling: 10.5 m³/min
• Dehumidification Capacity l/hr N/A
• Sound Pressure Level dBa 16-40
• Sound Power Level dBA 57

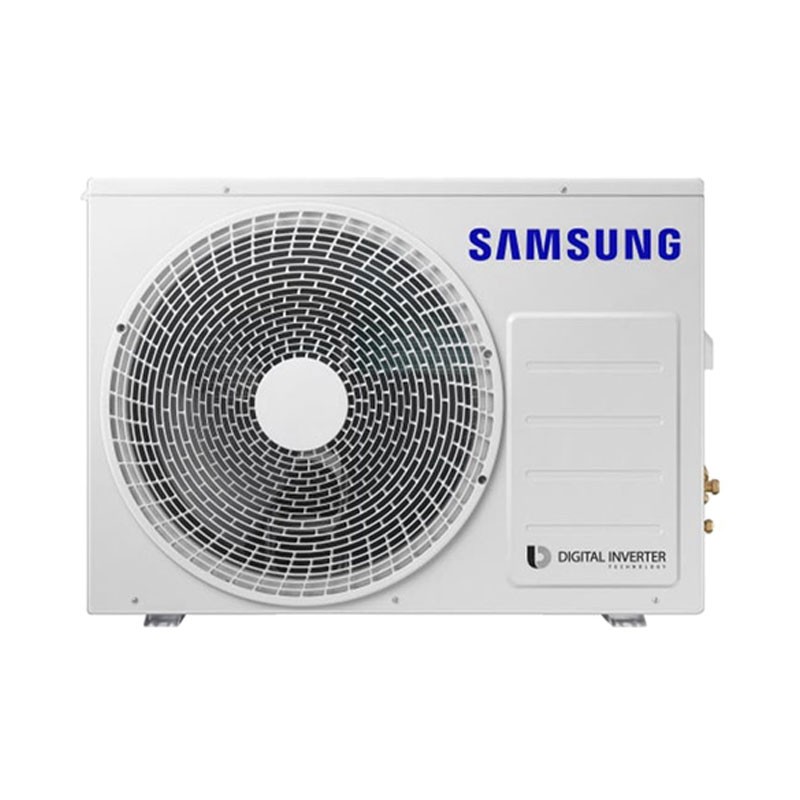

Outdoor Unit Features:

• Dimensions: (WxHxD) 790 x 548 x 285 mm
• Weight 32,5Kg
• Sound Pressure Level dBa 46
• Sound Power Level dBA 62
• Power supply Single phase 220-240 / 50Hz
• Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8)
• Max/min pipe length 20/5 meters
• Max height difference between indoor/outdoor unit 15 meters
• Refrigerant Type: Gas R32
• Operating range Cooling: -15° ~ 50° C - Heating: -20° ~ 24° C



Panel:

• Panel (WxHxD) : 620x46x620 mm
• Panel weight: 2,7 Kg
