Samsung Windfree 1-way Cassette Air Conditioner 3.5kW 12000BTU


KIT SMSCAS1V12 8801643606886

The Samsung WindFree 12000 BTU (3.5 kW) 1-Way cassette air conditioner provides uniform cooling without annoying direct drafts. Thanks to WindFree™ technology with 10,000 microholes, it maintains the optimal temperature naturally, ensuring maximum comfort and quietness.

The set includes:

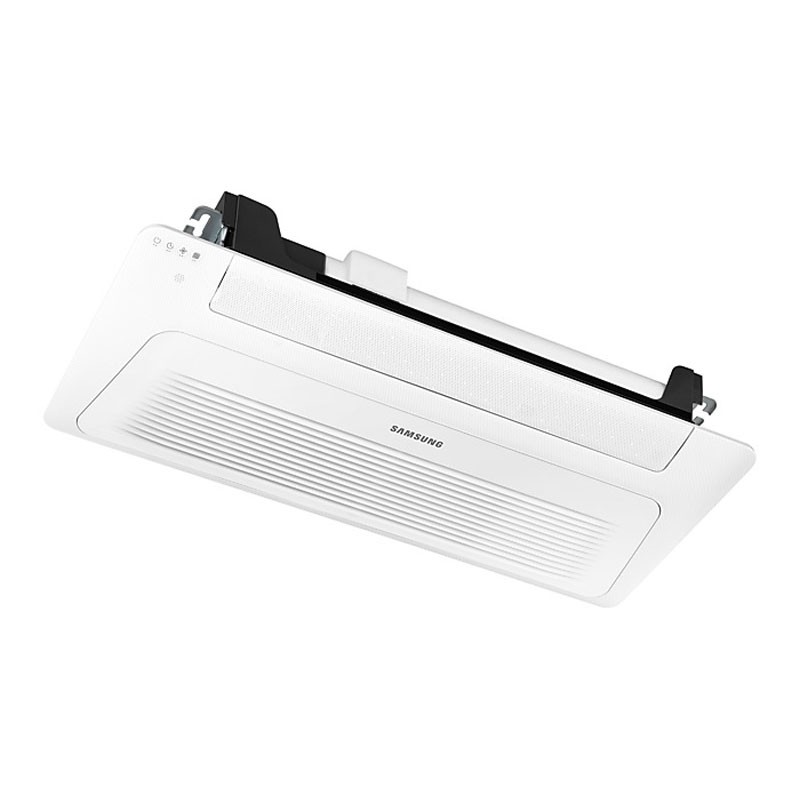

  • 1 Cassette Indoor Unit 3.5kW 1 Way (AC035RN1DKG/EU)

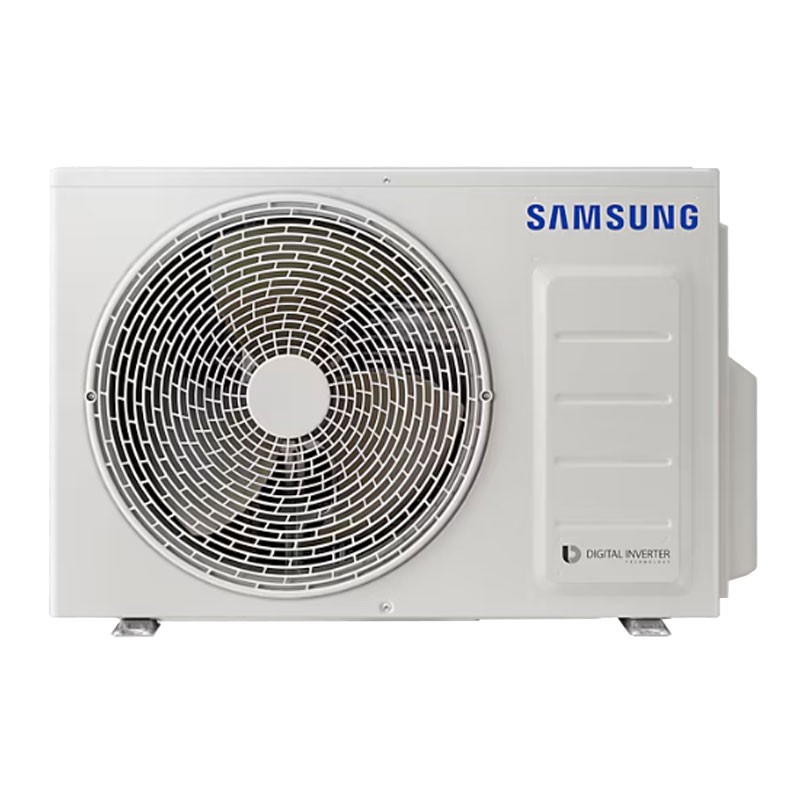

  • 1 Outdoor Unit 3.5kW (AC035RXADKG/EU)

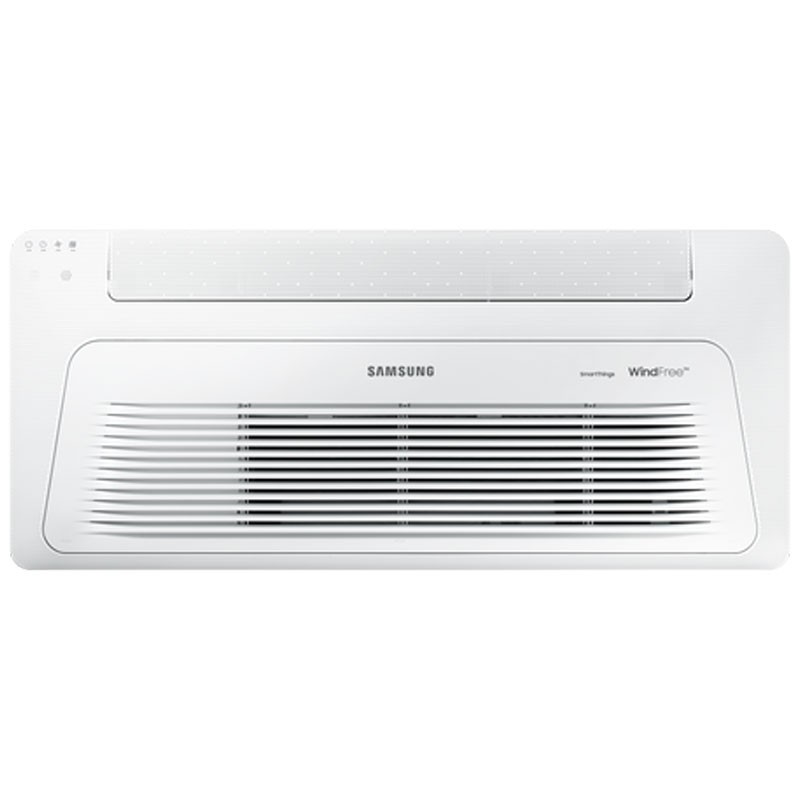

  • 1 1-Way Cassette Panel (PC1NWFMAN)


Compatible controls to be purchased separately are as follows:

  • AR-EH03E wireless remote control
  • Simplified wired remote control MWR-SH11N
  • MWR-WG00KN wired remote control.
  • Nasa MIM-H04EN Wi-fi kit for remote control
  • r32
  • taga+v
  • taga++v
  • For a room of approximately 35m²
    The air conditioner will be delivered pre-charged with gas R32
    The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.

    Do you have questions about this product or did you not find what you were looking for? Ask us!
    Samsung Windfree 1-way Cassette Air Conditioner 3.5kW 12000BTU
    €1,759.97
    €1,759.97

    €1,759.97
    Tax included
    Free Shipping

    €1,759.97

    Buy it within and receive it from Monday, 24 March
    Two-year warranty
    Easy return within 14 days

    Samsung Advanced Comfort Single-split Cassette with WindFree™ Technology

    WindFree™ technology performs temperature maintenance, without annoying direct cold air jets. It performs temperature maintenance through 10,000 microholes. The optimized fin of the 1 Via WindFree™ Cassette allows for greater air throw and better air distribution in the room.


    Optimized distribution fins

    The optimized fin of the Cassette 1 Via WindFree™ allows, unlike the conventional fin, a greater air throw and better air distribution in the room. The Cassette 1 Via WindFree™ allows users to change, using the remote control, the angle of the directing fin (adjustable between 30° and 80°).


    Windfree Technology Operation

    • Phase 1 Fast Cooling: Cooling through the "Fast Cooling" mode for fast set-up
    • Phase 2 Windfree Cooling: Temperature maintenance and uniformity with "WindFree™" mode to avoid direct air jets thanks to 10,000 microholes.


    Windfree Cassette Air Management and Exhaust Pump

    Filtration

    Pure Air Panel: PM1.0 filter captures ultrafine dust as small as 0.3 μm and sterilizes up to 99% of bacteria trapped in the filter


    Wide air distribution

    The wide, wide fin cools large spaces much faster, without neglecting any areas.


    Quietness

    The baffle is designed to reduce noise emissions from the unit


    Non-return valve

    The check valve in the drain pump prevents condensate from returning to the drip pan. This keeps the water level in the tray under control, preventing stagnant water.


    Strengths of the Windfree 1-Way Cassette System

    • WindFree™ mode to avoid direct air jets thanks to 10,000 microholes
    • One-way air supply with adjustable directing fin; height of only 135 mm
    • Built-in condensate drainage pump (750 mmH2O); antibacterial filter included
    • "Nasa" protocol communication; Wi-Fi kit (optional)
    • Auto-restart function in case of power failure shutdown


    Technical specifications of the Samsung Cassette 1-Way


    Cooling

    Feature Value
    Capacity Std (Min~Max) 3.50 (0.85~4.20) kW
    Absorption Std (Min~Max) 1.09 (0.18~1.40) kW
    SEER (Seasonal Energy Efficiency) 6,2
    Seasonal energy efficiency class A++
    Theoretical heat load (Pdesignc) 3.5 kW
    Indicative annual energy consumption (QCE) 201 kWh/a


    Heating

    Feature Value
    Capacity Std (Min~Max) 4.00 (1.00~5.00) kW
    Absorption Std (Min~Max) 1.28 (0.19~1.80) kW
    SCOP (Seasonal Energy Efficiency) 4
    Seasonal energy efficiency class A+
    Theoretical heat load (PdesignH) 2 kW
    Declared capacity 2 kW
    Indicative annual energy consumption (QCE) 700 kWh/a


    Indoor Unit

    Feature Value

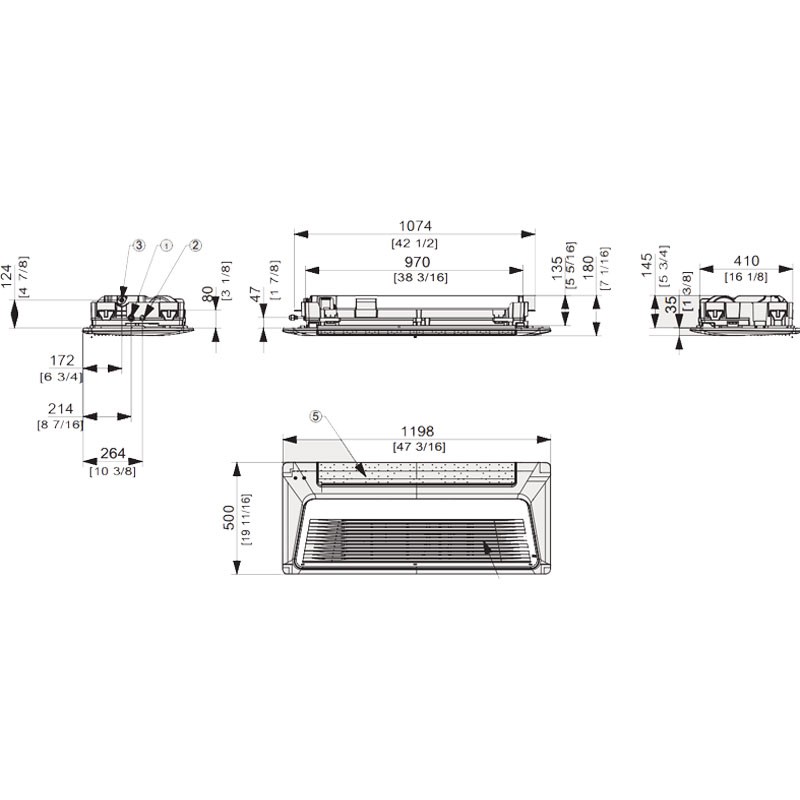

    Dimensions (WxHxD) 970x135x410 mm
    Panel Dimensions (WxHxD) 1198x35x500 mm
    Weight 9.2 kg
    Panel Weight 4.3 kg
    Processed air (max) 9 m³/min
    Sound Power Level (Heating) 55 dB(A)


    Outdoor Unit

    Feature Value
    Dimensions (WxHxD) 790x548x285 mm
    Weight 32.5 kg
    Sound Power Level 61 dB(A)
    Power Supply (Ø, V, Hz) 1, 220-240, 50
    Operating range (Cool./Risc.) -15 ~ 46 / -25 ~ 24 °C
    Piping Liquid / Gas Ø6.35 (1/4") / Ø9.52 (3/8")
    Max. piping length 20 meters
    Max height difference (U. Internal/U. External) 15 meters
    Max piping length without adding refrigerant 20 meters
    Refrigerant Type / GWP R32 / 675
    Factory precharge 0.9 kg
    Tons CO₂ equivalent 0.61 tCO₂ e

    Data sheet

    Air conditioners:
    Cassette
    Gas:
    R32
    Power:
    12000 BTU (3,5 Kw)
    Room Size:
    35m²
    Energy class:
    A++
    Series:
    WindFree
    Contact details of the manufacturer and the responsible person
