Samsung Windfree Quadrisplit Cassette Air conditioner 1-way 2.6+2.6+2.6+3.5kW
The Samsung WindFree Quadrisplit 1 Way cassette air conditioner 9000+9000+9000+12000 BTU (2.6+2.6+2.6+3.5 kW) ensures uniform cooling without annoying direct drafts. Thanks to WindFree™ technology with 10,000 microholes, it maintains the optimal temperature naturally, ensuring maximum comfort and quietness.
The set includes:

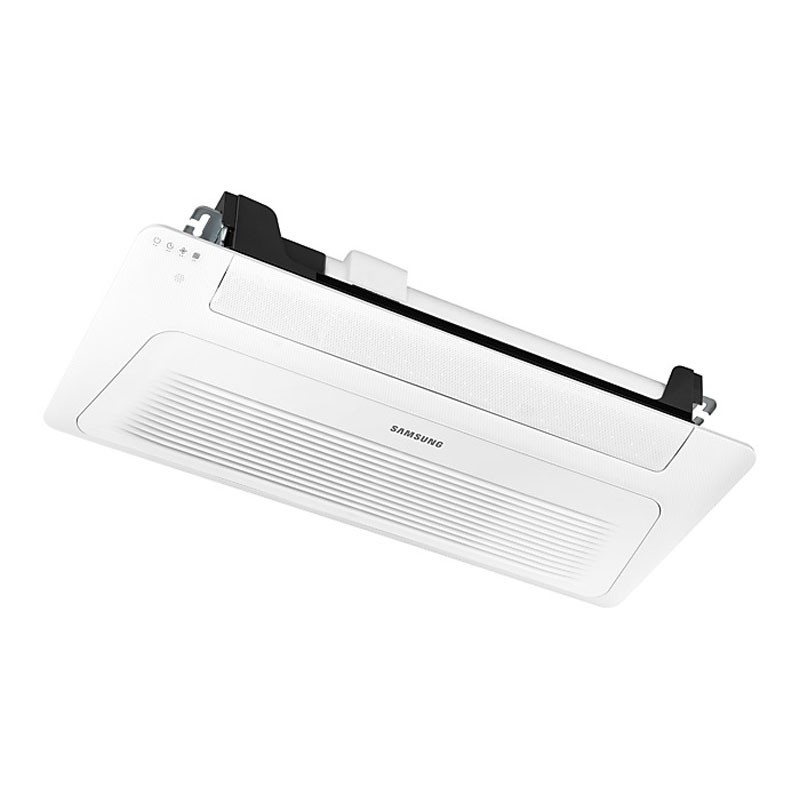

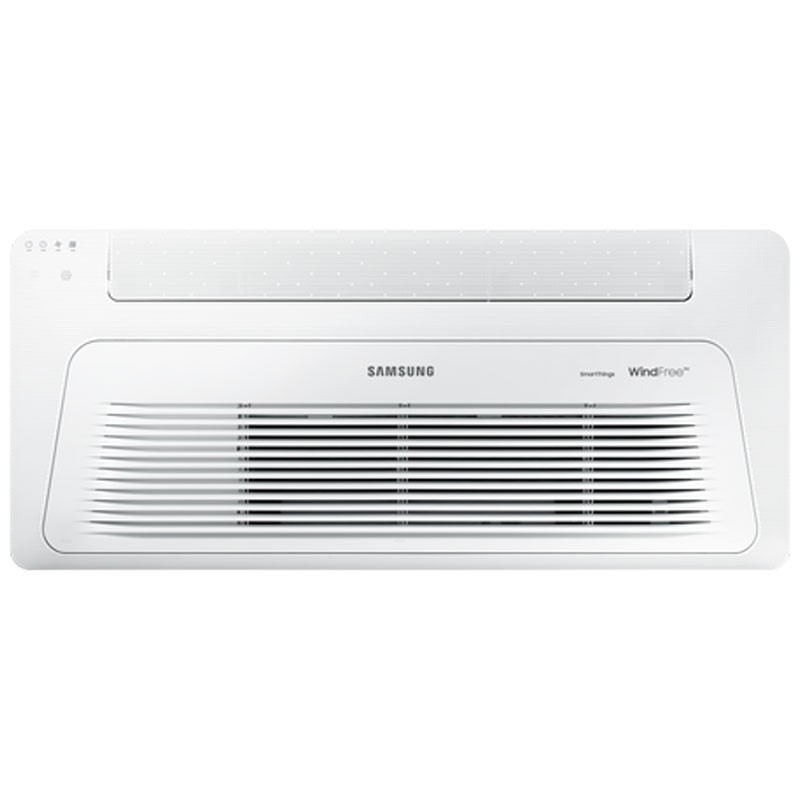

- 3 Cassette Indoor Units 2.6kW 1 Way (AJ026TN1DKG/EU)
- 1 Cassette Indoor Unit 3.5kW 1 Way (AJ035TN1DKG/EU)

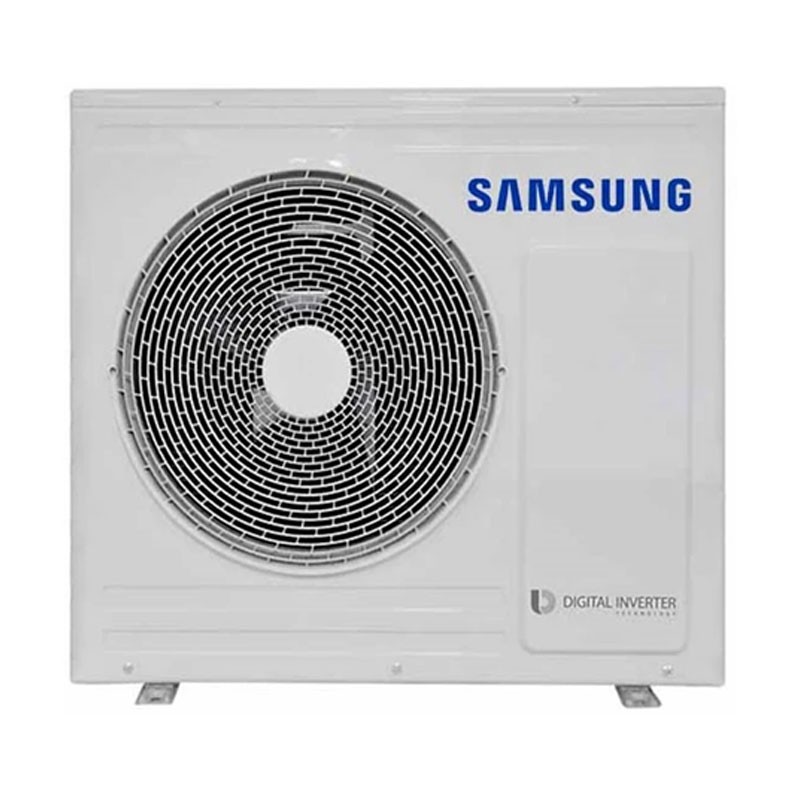

- 1 Quadri Outdoor Unit 8.0kW (AJ080TXJ4KG/EU)
- 4 Cassette Panels 1 Way (PC1NWFMAN)
Compatible controls to be purchased separately are as follows:
- AR-EH03E wireless remote control
- Simplified wired remote control MWR-SH11N
- MWR-WG00KN wired remote control.
- Nasa MIM-H04EN Wi-fi kit for remote control




Tax included
Air conditioners of the same series
Frequently bought together
Samsung Advanced Comfort Cassette Quadrisplit with WindFree™ Technology
WindFree™ technology performs temperature maintenance, without annoying direct cold air jets. It performs temperature maintenance through the 10,000 microholes. The optimized fin of the 1 way WindFree™ Cassette allows for greater air throw and better air distribution in the room.
Optimized distribution fins
The optimized fin of the Cassette 1 way WindFree™ allows, unlike the conventional fin, a greater air throw and better air distribution in the room. The Cassette 1 way WindFree™ allows users to change, using the remote control, the angle of the directing fin (adjustable between 30° and 80°).
Windfree Technology Operation
- Phase 1 Fast Cooling: Cooling through the "Fast Cooling" mode for fast set-up
- Phase 2 Windfree Cooling: Temperature maintenance and uniformity with "WindFree™" mode to avoid direct air jets thanks to 10,000 microholes.
Windfree Cassette Air Management and Exhaust Pump
Filtration
Pure Air Panel: PM1.0 filter captures ultrafine dust as small as 0.3 μm and sterilizes up to 99% of bacteria trapped in the filter
Wide air distribution
The wide, wide fin cools large spaces much faster, without neglecting any areas.
Quietness
The baffle is designed to reduce noise emissions from the unit
Non-return valve
The check valve in the drain pump prevents condensate from returning to the drip pan. This keeps the water level in the tray under control, preventing stagnant water.
Strengths of the Windfree 1-Way Cassette System
- WindFree™ mode to avoid direct air jets thanks to 10,000 microholes
- One-way air supply with adjustable directing fin; height of only 135 mm
- Built-in condensate drainage pump (750 mmH2O); antibacterial filter included
- "Nasa" protocol communication; Wi-Fi kit (optional)
- Auto-restart function in case of power failure shutdown
Specifications of the Samsung Cassette 1 way
Indoor Units 2.6kW
Feature | Value |
---|---|
Cooling Capacity | 2.6kW |
Heating Capacity | 2.9 kW |
Dimensions (WxHxD) | 970 x 135 x 410 mm |
Weight | 9.5 kg |
Max flow rate | 7.3 m³/min |
Sound Pressure | 32 dBA |
Panel Dimensions (WxHxD) | 1198 x 35 x 500 mm |
Panel Model (Required) | PC1NWFMAN |
Feature
Feature | Description |
---|---|
WindFree Mode | Avoids direct air jets |
Antibacterial filter | Present |
Air supply | One-way with adjustable directing fin |
Fan | Tangential with single-phase motor |
Condensate drainage pump | Built-in (750 mmH2O) |
Indoor Unit 3.5kW
Feature | Value |
---|---|
Cooling Capacity | 3.5kW |
Heating Capacity | 3.8 kW |
Dimensions (WxHxD) | 970 x 135 x 410 mm |
Weight | 9.5 kg |
Max flow rate | 9 m³/min |
Sound Pressure | 37 dBA |
Panel Dimensions (WxHxD) | 1198 x 35 x 500 mm |
Panel Model (Required) | PC1NWFMAN |
Feature
Feature | Description |
---|---|
WindFree Mode | Avoids direct air jets |
Antibacterial filter | Present |
Air supply | One-way with adjustable directing fin |
Fan | Tangential with single-phase motor |
Condensate drainage pump | Built-in (750 mmH2O) |
Quadrisplit Outdoor Unit 8.0kW
Feature | Description |
---|---|
Refrigerant Type | R32 |
Max Matching Indoor Units | 4 |
Rated Capacity (Cooling / Heating) | 8.0 / 9.3 kW |
Sound Pressure (Max) (Cooling/Heating) | 48 / 50 dBA |
Sound Power (Max) | 64 dBA |
Operating Range Cooling | -10° ~ 46°C |
Operating Range Heating | -15° ~ 24°C |
Power Supply | 220~240V / 50Hz / 1 Phase |
External Unit Dimensions (WxHxD) | 880 x 798 x 310 mm |
Weight | 57.5 Kg |
Liquid Connection Piping | Ø 4 x 6.35 mm (1/4") |
Gas Connection Piping | Ø 2 x 9.52 mm (3/8") + 2 x 12.70 (1/2") |
Max Distance between Indoor and Outdoor Units | 25 meters |
Minimum Piping Length per Unit | 3 meters |
Total Max Piping Length | 70 meters |
Max Piping Length (Without Adding Gas) | 30 meters |
Max height difference Indoor-Exdoor Unit | 15 meters |
Max height difference Indoor-Outdoor unit | 7.5 meters |
Refrigerant Charge - additional | 2000 g - 20 g/m |
tCO₂e | 1,35 |
Data sheet
- Air conditioners: Cassette
- Gas: R32
- Power: 9+9+9+12 BTU
- Room Size: 35m²+27m²+27m²+27m²
- Energy class: A++
- Series: WindFree
