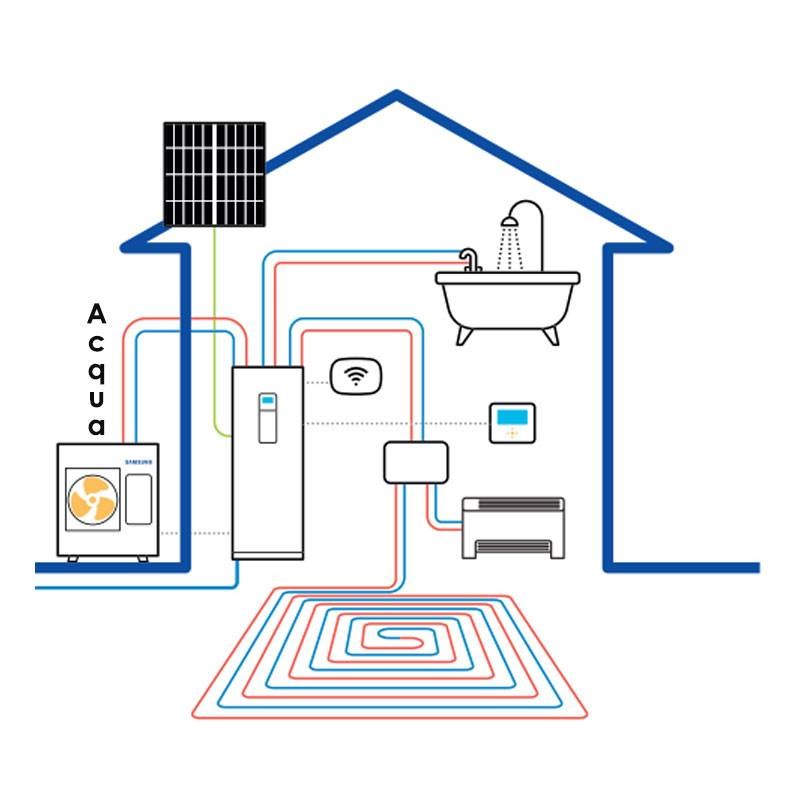

Samsung EHS ClimateHub R32 is the integrated indoor system that enables heating, cooling, and domestic hot water production in association with outdoor heat pump units of the EHS Split R32 series. The ClimateHub system includes all major plumbing components within it: this saves useful space inside the home.



Special features:

• Photovoltaic contact: Allows you to optimize the self-consumption of electricity produced by photovoltaic panels. The contact is already arranged on the hydronic and ClimateHub modules of Samsung EHS systems Emergency mode: In case of an interruption in the operation of the outdoor unit, ClimateHub ensures the production of domestic hot water and heating thanks to the included heating elements
• Concrete curing: This is the function that facilitates the curing of concrete by taking advantage, for this purpose, of the adaptation of supply water temperatures in the radiant system
• Silent function: The silent function makes it possible to reduce with 4 progressive steps the noise of the outdoor machine up to 35 dB, ideal for operation at night. Activation is programmable through the control panel
• Tax incentives and energy efficiency: The high energy efficiency of Samsung EHS R32 systems allows access to incentive systems such as Deductions 65% and Conto Termico for interventions that involve the installation of a heat pump system and increasing the energy efficiency of the building.



Kit component specifications:



Samsung EHS MONO 12.0KW R32 AE120RXYDEG/EU External Heat Pump Unit:

• Rated capacity Cooling/Heating 12/12 kW
• New GAS R32 included
• Power Supply 1/2 / 220-240 / 50 F/V/Hz
• Inlet/Outlet Connections mm (inch) 28/28
• MCA/MFA 28.00 / 35.00 A
• Efficiency COP/EER 4.53 / 4.33 kW
• Efficiency SCOP/SEER 4.69 / 5.22 kW
• Sound pressure Heating / Cooling 50/50 dB(A)
• Sound power Heating / Cooling 64/65 dB(A)
• Dimensions (WxHxD) 940x1,420x330
• Net weight 110 Kg
• Refrigerant gas: R32
• Twin Rotary Inverter Compressor
• Connection to optional Wi-Fi kit or centralized control systems code MIM-H04EN
• Communication with Nasa protocol
• Air-water side for floor heating/cooling or low temperature radiators
• Air-water side for domestic hot water production (ClimateHub required)
• Dual temperature management (DHW/heating)
• Possibility of outdoor climate setting
• Output of maximum 90% of capacity even at outdoor temperature of -10°C
• Operation up to an outdoor temperature of -25°C



Integrated System Samsung EHS Climatehub MONO 260 liters code AE260RNWMEG/EU:

• Volume/Isolation 260 liters/PU Foam
• Efficiency Class °C A+++/A++
• 8-liter expansion tank
• Intuitive consumption monitoring with special electronic flow switch
• Flow temperature reaches up to 65°C with guaranteed operation down to -25°C
• Intelligent management via SmartThings APP (accessory to be purchased separately code MIM-H04EN)



Connections:

• Technical Water (In/Outlet) 28/28mm (inch)
• Heating (In/Outlet) 28/28mm (inch)
• DHW (Inlet/Outlet/Recirculation) 22/22/22 mm (inch)

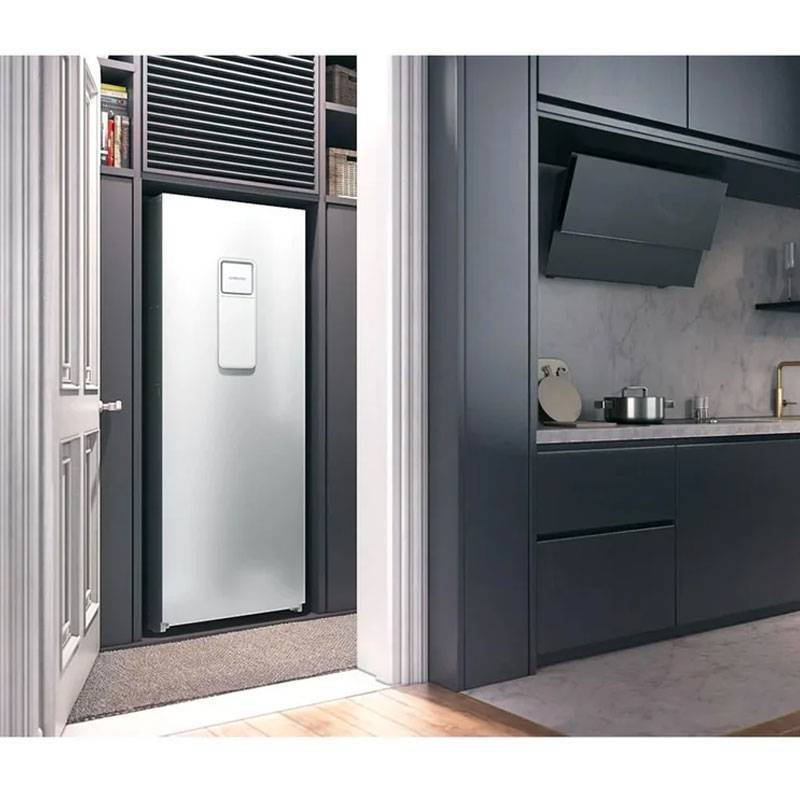

It is an indoor integrated system that enables heating, cooling and domestic hot water production in association with outdoor heat pump units of the EHS MONO R32 series.



The ClimateHub system includes all the main plumbing components inside: this saves useful space inside the home.



Advantages:

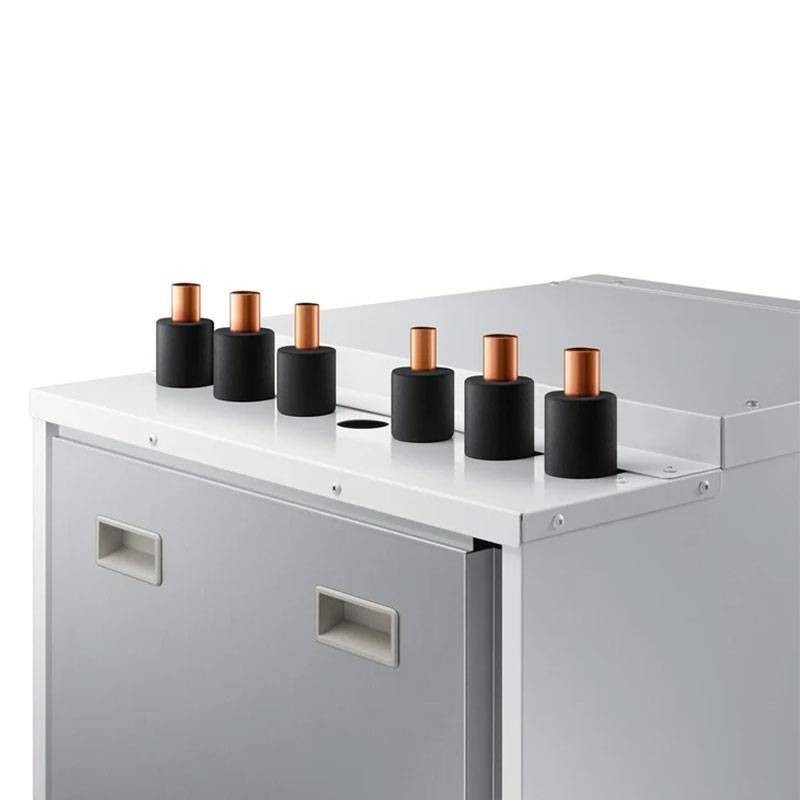

• Connections Placed at the top for simplified installation
• For 260-liter ClimateHubs, there is provision for recirculation of the sanitary circuit
• Dimensions Fits perfectly into the service areas of the home due to its standard size and compact shape
• High-efficiency brazed plate heat exchanger
• 3 kW electrical heating element
• Polyurethane insulation
• Maximum pressure of 12 bar
• Circulation pump included with inverter PWM control, 25LPM/7mAq
• Electronic flow switch: enables, in conjunction with wired control MWR-WW10N, an estimation of consumption
• 8-liter expansion tank
• Maximum efficiency with energy class A++/A+
• Simplified installation thanks to the connections placed at the top and easy maintenance from the front panel
• Intuitive consumption monitoring thanks to the special electronic flow switch
• Flow temperature reaches up to 65°C3 with guaranteed operation down to -25°C



Features:

• Power supply F/V/Hz 1/2 / 220-240 / 50
• Flow temperature Cooling / Heating °C 5~25 / 15~65
• MCA/MFA 22.7 / 28.4 A
• Water flow rate Minimum/Max 7-48 liters/minute
• Water Pressure 3 bar
• Hydronic/anti-legionella electric heater kW 2/3
• Sound Pressure Heating/Cooling 26/26 dB(A)
• Sound Power 40 dB(A)
• Dimensions: (WxHxD) 595x1800x700mm
• Net Weight Kg 140
• Positioning: Floor standing
• Compact design
• Simplified maintenance
• High-efficiency brazed plate heat exchanger
• 2 kW backup heater
• Water supply temperature 5~65°C
• Polyurethane insulation
• Removable panel for maintenance and management of internal components
• Provision for wired control
• Emergency mode to ensure DHW production in case of outdoor unit failure.



Energy saving:

• Save energy with advanced features. Two-zone control enables high and low temperature thermostats. Photovoltaic contact feature monitors the status of solar panels and reduces grid power consumption.



Simplified installation and maintenance:

• With its intuitive maintenance options, commissioning and maintenance, by the service center, can be accomplished with little effort by taking advantage of a PBA converter and a Micro SD card or the Samsung S-Checker Mobile app.



Convenient and intuitive control (accessory):

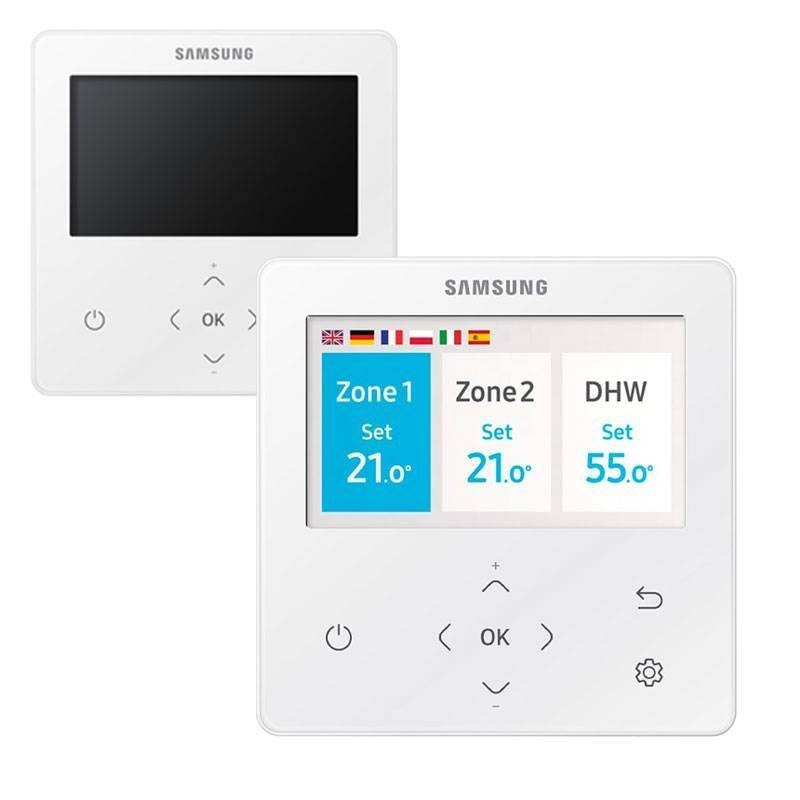

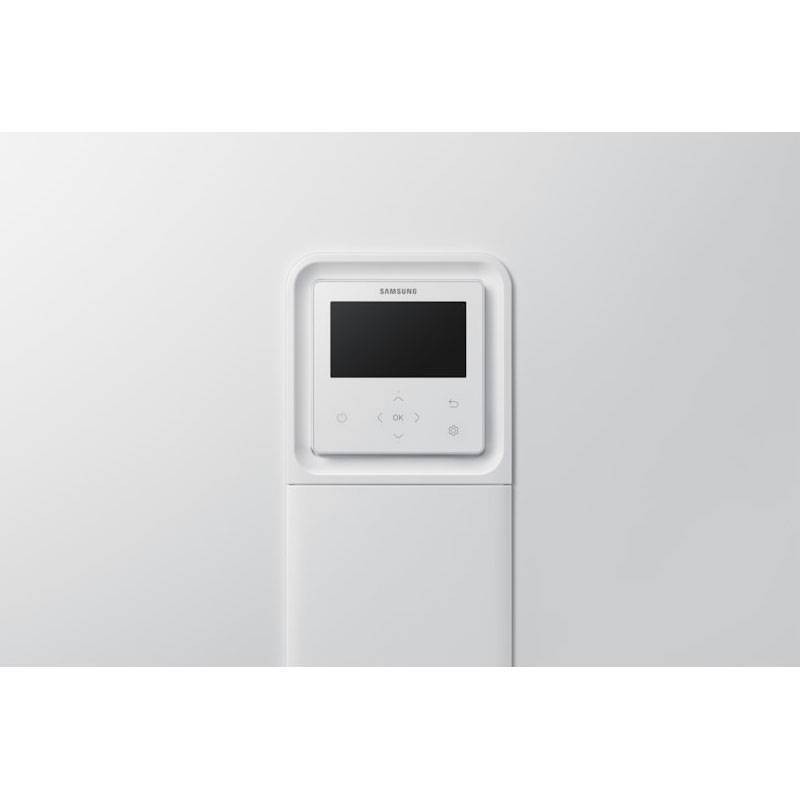

• Control and adjust the condition of your home quickly and intuitively. The wired control features a large, bright color touch display and various language options.



Smart connectivity:

• Control your Samsung EHS system while on the move. Smart Connectivity allows you to manage your Samsung air conditioning/heating system anytime, anywhere via the SmartThings app. Plus, with the touch controller, you can manage the mode and settings, schedule startup/shutdown, monitor energy consumption, adjust daylight saving time settings, and identify errors.

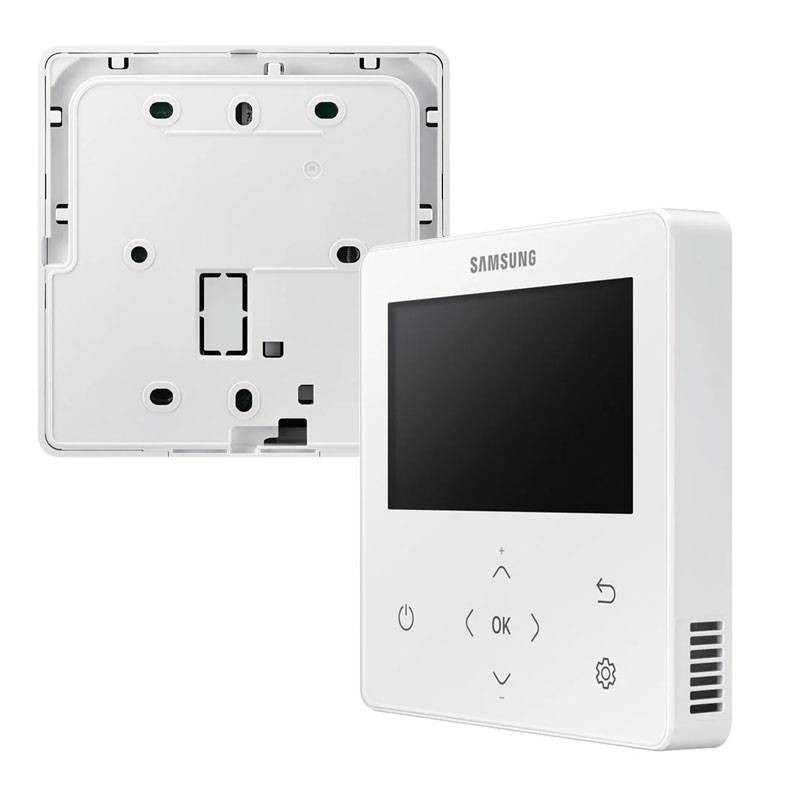

EHS R32 System Adjustment Command code MWR - WW10N:



The EHS R32 System Adjustment Command (mandatory), allows simplified and intuitive management of all settings:

• Consumption estimation: The user can view directly on the control how much energy is consumed and produced by the system
• Dual climate curve: Once the climate curve is set, the flow temperature to the system is automatically adjusted according to the outdoor temperature, adjusting the heat supply to the building's heating needs. In this way, the best performance in terms of comfort is guaranteed while keeping the room temperature constant; in addition, heat loss and energy waste are reduced
• Multizone Management: Through the control, two different temperature zones can be created and managed.



Option to purchase SmartThings separately: Through a single SmartThings APP, intuitive and simplified management of the heat pump, Samsung appliances and all devices from partner companies already integrated in the application is possible, even remotely.
