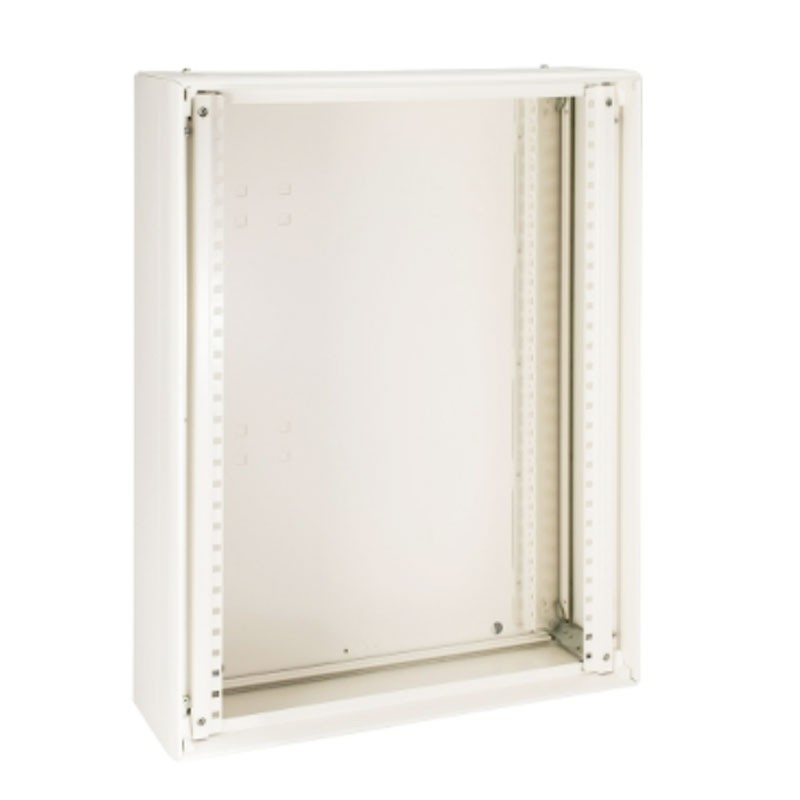

Schneider Prisma G L600 15M IP30 Switchboard Box LVS08105
SNR LVS08105
3303430081050
Schneider switchgear box with the following characteristics:
- Rated insulation voltage [Ui]: 1000 V on main rear bus ducts complying with IEC 61439-2
- Mains frequency: "50/60 Hz"
- Rated current [In]: 630 A at 40 °C complying with IEC 61439-2
- Short-circuit current: 50kA
- Rated allowable short-time withstand current [Icw]: 25 kA 1 s complying with IEC 61439-1
- Peak rated allowable current [Ipk]: 53 kA complying with IEC 61439-1
- Electrical insulation class: Class I
- Material: treated sheet steel
- Number of vertical modules (50 mm): 15
- Number of modules 18 mm per row: 24
Schneider Prisma G L600 15M IP30 Switchboard Box LVS08105
€339.66
€339.66
Tax included
Tax included
Items Available: 5
Other technical features:
- Protective treatment: electrophoresis treatment and polymerized polyester epoxy powder
- Surface finish: textured - matte
- Color: white (RAL 9003)
- Dimensions: width 595 mm - height 780 mm - depth 205 mm
- Weight: 13 kilograms approx.
- IP protection ratings: IP30 with front plate - IP40 with door - IP41 with door and cover - IP43 with door, cover and gasket
- IK degrees of protection: IK07 with front plate - IK08 with transparent door - IK10 with plain door
- Mechanical robustness: seismic testing - 2.5G complying with IEC 60068-2-57
- Product range: PrismaSet G
- Application: low-voltage electrical distribution
- Enclosure type: Functional enclosure supplied in kit form
- Additional information: possibility of side-by-side and one-on-one association
- Without front plate (to be ordered separately)
- Reference Standards: IEC 61439-1, IEC 61439-2, IEC 62208
There are no reviews
Data sheet
- Type:
- Mailbox
- Modules:
- 15
