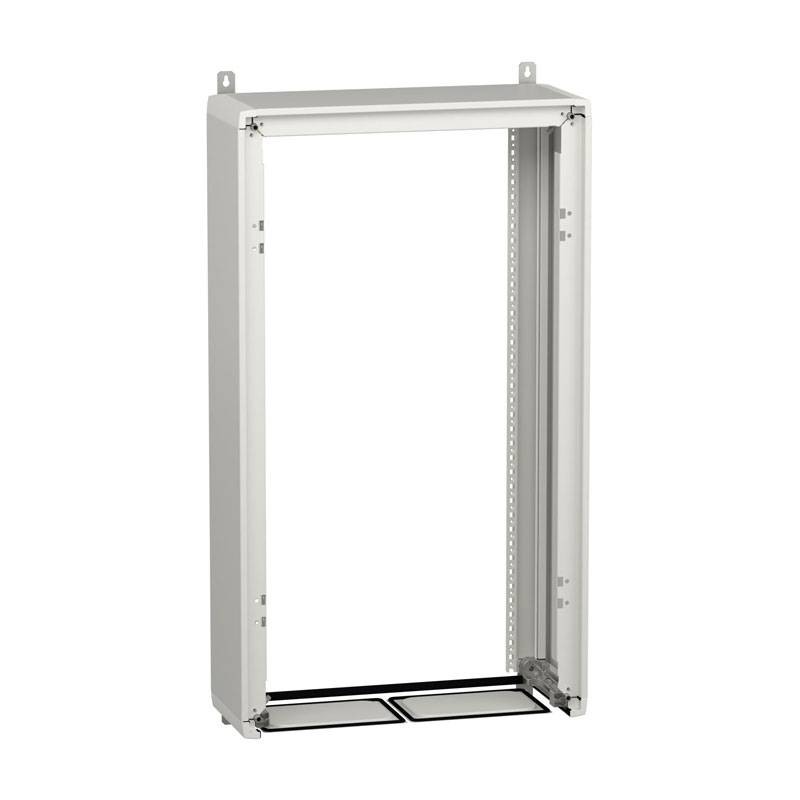

Schneider PrismaSeT Box G L600mm H1050mm 19M IP55 LVS08305
SNR LVS08305
3606481876539
Schneider PrismaSeT G L600mm H1050mm 19M box without socket with the following features:
- Product range: PrismaSet G
- Device application: low-voltage electrical distribution
- Description of enclosure/cabinet: Floor standing cabinet - width 600mm
- Can be combined side by side
- Number of vertical modules (50 mm): 19
- Number of 18mm modules per row: 24
- Degree of protection: IP55
- Rated insulation voltage: 1000V on the rear main busbars according to IEC 61439-2
- Rated current: 630A at 40°C in accordance with IEC 61439-2
- Short-circuit current: 50 kA
- Rated short-time withstand current: 25 kA 1 s complying with IEC 61439-1
- Rated peak withstand current: 53 kA complying with IEC 61439-1
Schneider PrismaSeT Box G L600mm H1050mm 19M IP55 LVS08305
€607.08
€607.08
Tax included
Tax included
Items Available: 8
Specifications:
- Housing type: Functional enclosure delivered as a kit
- Weatherproofenclosure
- Indoorenclosure
- Metalcasing
Kit composition:
- Uprights
- Back plate
- 2 side panels
- Upper plate
- Bottom plate
- 4 mounting brackets
Features:
- Electrical insulation class: Class I
- Material: treated sheet steel
- Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder
- Surface finish: Matt textured

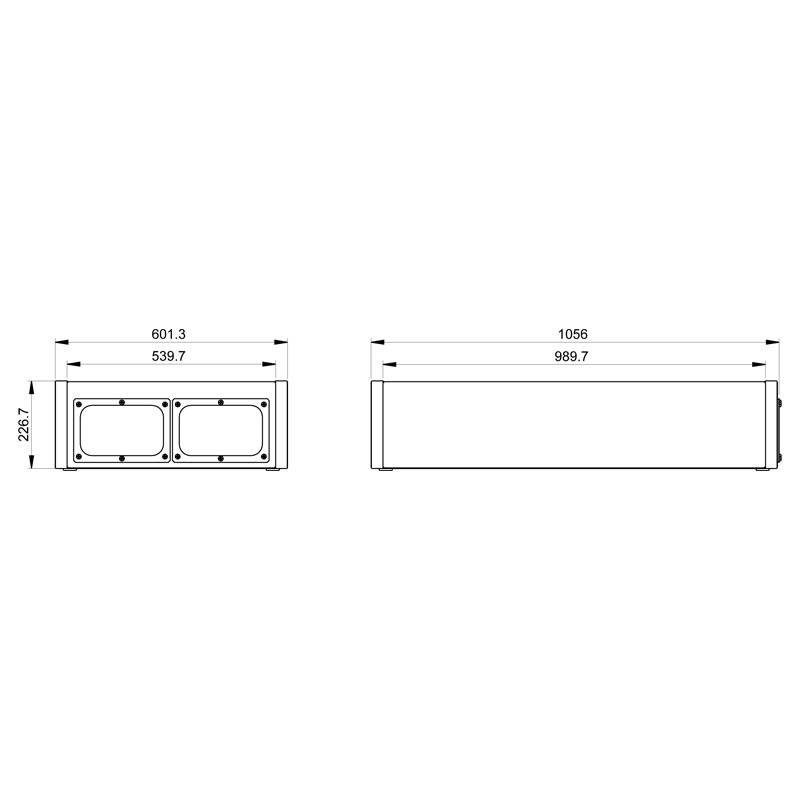

- Dimensions: height 1050 mm with plinth - width 575 mm - depth 260 mm
There are no reviews
Data sheet
- Type:
- Mailbox
- Modules:
- 19
- Degree of protection:
- IP55
