Fror Shielded Flameproof Cable FROHH2R 2X2.25 sq. mm.
9X9 ED105R010024

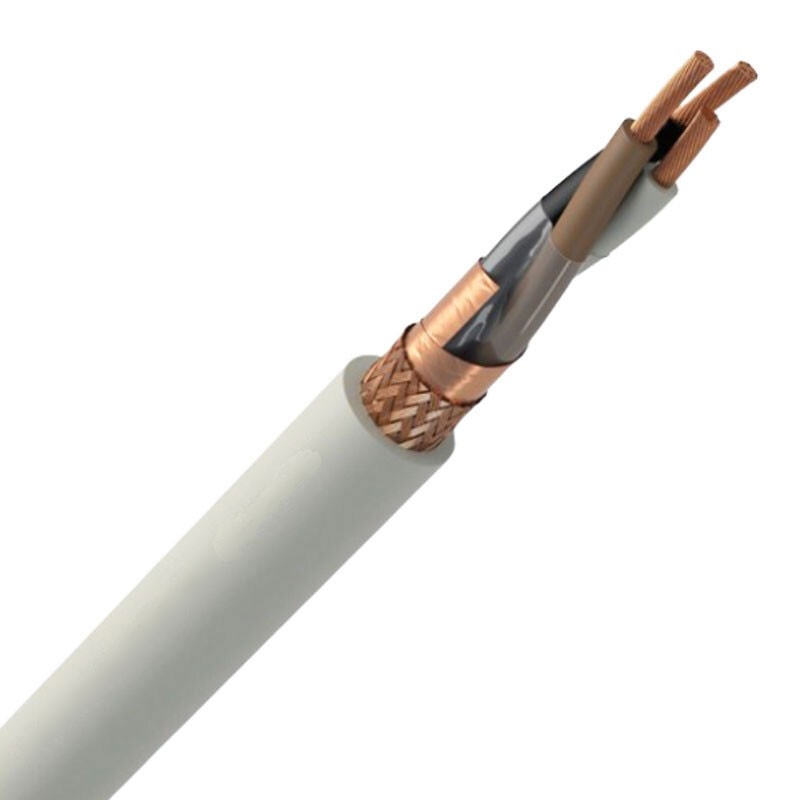

Flameproof shielded F ror cable FROHH2R 2X2.25 sq mm with the following characteristics:
- Conductor: red copper, flexible formation, class 5 Insulation: PVC, TI2 quality
- Core wrapping: polyester tape
- Screen 1: aluminum/polyester tape
- Screen 2: red copper wire braid
- Sheathing: PVC, TM2 quality
- Color: gray
- Rated voltage: 450/750V
Sale by the meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Fror Shielded Flameproof Cable FROHH2R 2X2.25 sq. mm.
€1.67
€1.67
Tax included
Tax included
Items Available: 1485
: 724
Two-year warranty
Power cable suitable for fixed installation in places with fire hazards such as trade fairs, civil, commercial, public entertainment buildings; in industrial construction limited to laying in pipes and ducts. Cable with rated voltage 300/500 V is suitable only for signaling and control circuits. Suitable when a special degree of protection against electrostatic (aluminum/polyester tape) and electromagnetic (copper braid) interference is required. Can be installed indoors in normal or humid environments and temporarily outdoors. Underground installation is not allowed.
Features:
- Maximum operating temperature: 70°C
- Minimum operating temperature: -15°C (in the absence of mechanical stress)
- Maximum short circuit temperature: 160°C
- Shield transfer impedance: max 100 m /m (100 KHz to 30 MHz)
- Good resistance to mechanical stress and chemical agents
- Good flexibility and behavior at low temperatures
- Minimum laying temperature: 0°C
- Recommended minimum bending radius: 8 times the cable diameter
- Maximum recommended tensile stress: 50 N/mm2 of copper cross section
There are no reviews
Data sheet
- Colour:
- Grey
- Type:
- FROHH2R
- Cross-Section:
- 2.2 mmq
- With yellow/green:
- No
- Number of cables:
- 2
