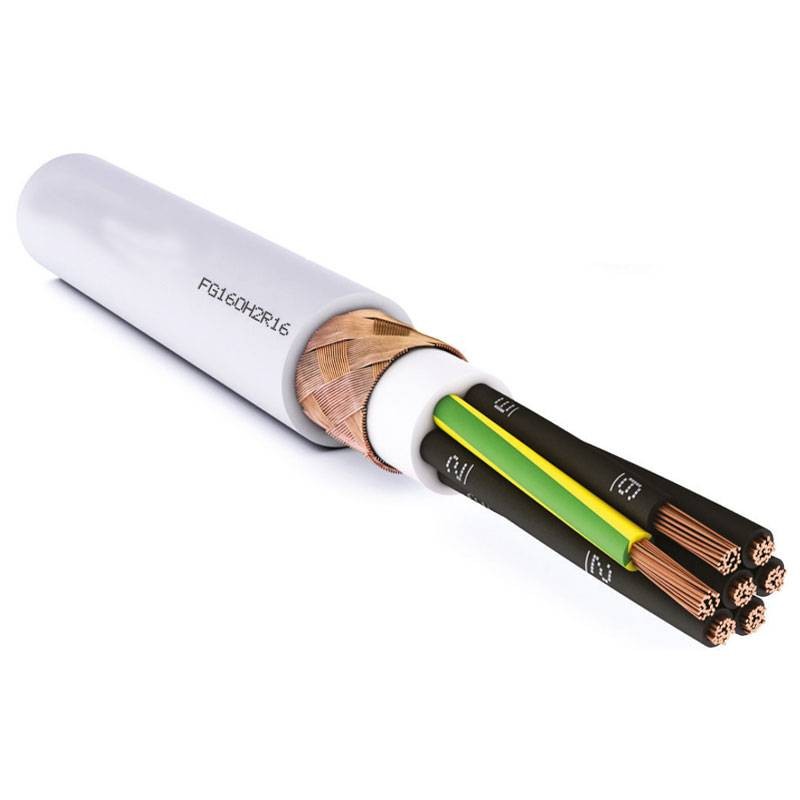

Multi-core shielded cable with yellow/green FG16OH2R16 7x1.5 sq. mm 0.6/1 kV

Brand: Cavi

Code: 9X9 FG16OH2R167G1,5 EAN:

FG16OH2R16 7x1.5 sq. mm 0.6/1 kV braided shielded multi-core cable with yellow/green with the following characteristics:

Conductor diameter: 1.5 mm
Insulation thickness: 0.7 mm
Sheath thickness: 1.8 mm
Sheath outer diameter: 16.1 mm
Electrical resistance: 13.3 ohm/km
Current flow rate in air: 13A
Current carrying capacity in pipe: 11.5A

Sold by the meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Multi-core shielded cable with yellow/green FG16OH2R16 7x1.5 sq. mm 0.6/1 kV

€4.57

Multi-core shielded cable with yellow/green FG16OH2R16 7x1.5 sq. mm 0.6/1 kV

€4.57
Tax included

Items Available: 195

: 156

Further availability of the manufacturer

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Multi-core shielded red copper wire braid cable for energy, insulated with high modulus ethylpropylene rubber of G16 quality, under PVC sheath, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).

Features:

Conductor: Flexible annealed red copper cord, class 5
Insulation: High-modulus ethylpropylene rubber compound of G16 quality
Filler: Compound of nonhygroscopic material
Screen: Red copper wire braid
Outer sheath: R16-quality PVC compound
Sheath color: gray
Rated voltage Uo/U: 0.6/1 kV
Maximum operating temperature: 90°C
Minimum operating temperature: -15°C (in the absence of mechanical stress)
Minimum laying temperature: 0°C
Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 8 times the maximum outer diameter

Conditions of use: Protection against electromagnetic interference for energy transport in industrial and/or residential construction. To be used for fixed installation indoors even in wet environments and outdoors. Suitable for installation on masonry and metal structures, ducts, pipes and similar; underground laying also permitted.
