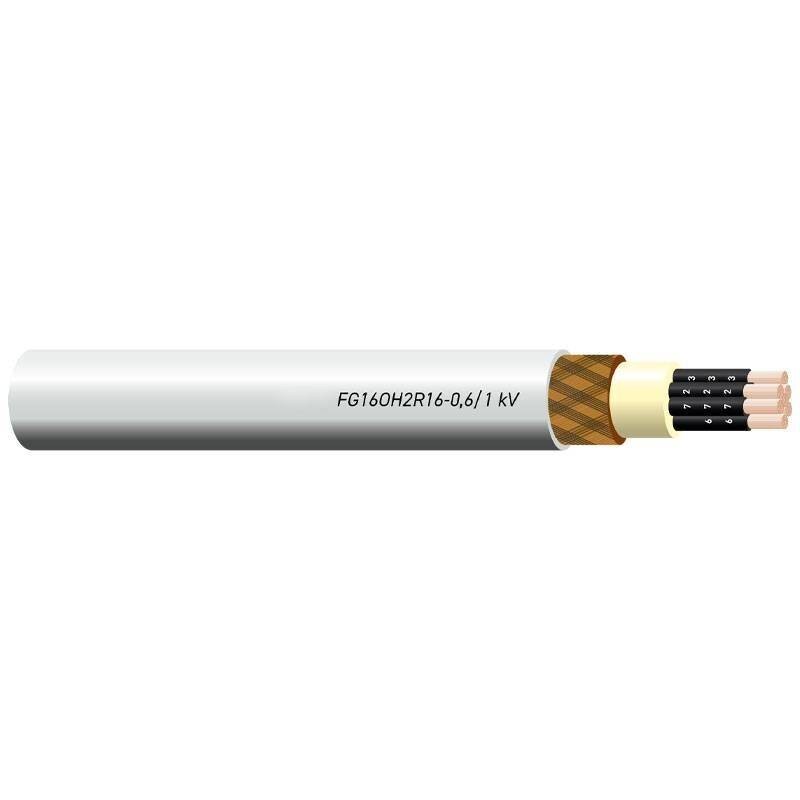

Multi-pole shielded cable FG16OH2R16 7 x 2.5 sq. mm 0.6/1kV

Brand: Cavi

Code: 9X9 FG16OH2R7X2,5 EAN:

Multi-pole shielded FG16OH2R16 7 x 2.5 sq mm cable with the following characteristics:

Section: 7 x 2.5 sq. mm
Outer diameter: 16.6 mm
Conductor diameter: 1.9 mm
Insulation thickness: 0.7 mm
Sheath thickness: 1.8 mm
Conductor resistance: 7.98 Ohm/km
Current carrying capacity in air: 15.5A
Current carrying capacity buried: 21A

Sale by the meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Multi-pole shielded cable FG16OH2R16 7 x 2.5 sq. mm 0.6/1kV

€6.71

Multi-pole shielded cable FG16OH2R16 7 x 2.5 sq. mm 0.6/1kV

€6.71
Tax included

Items Available: 300

: 240

Further availability of the manufacturer

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Multi-pole shielded red copper wire braid cable for signaling and control, insulated with high modulus ethylpropylene rubber of G16 quality, under PVC sheathing, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).

Features:

Conductor: Flexible annealed red copper cord, class 5
Insulation: High-modulus ethylpropylene rubber compound of G16 quality
Filler: Compound of nonhygroscopic material
Screen: Red copper wire braid
Outer sheath: R16-quality PVC compound
Sheath color: gray
Rated voltage Uo/U: 0.6/1 kV
Maximum operating temperature: 90°C
Minimum operating temperature: -15°C (in the absence of mechanical stress)
Minimum laying temperature: 0°C
Maximum short-circuit temperature: 250°C up to 240 mm² section, over 220°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 8 times the maximum outer diameter

Conditions of use: Protection against electromagnetic interference for signaling and control in industrial and/or residential construction. To be used for fixed installation indoors even in wet environments and outdoors. Suitable for installation on masonry and metal structures, conduits, pipes and the like; underground installation also permitted.
