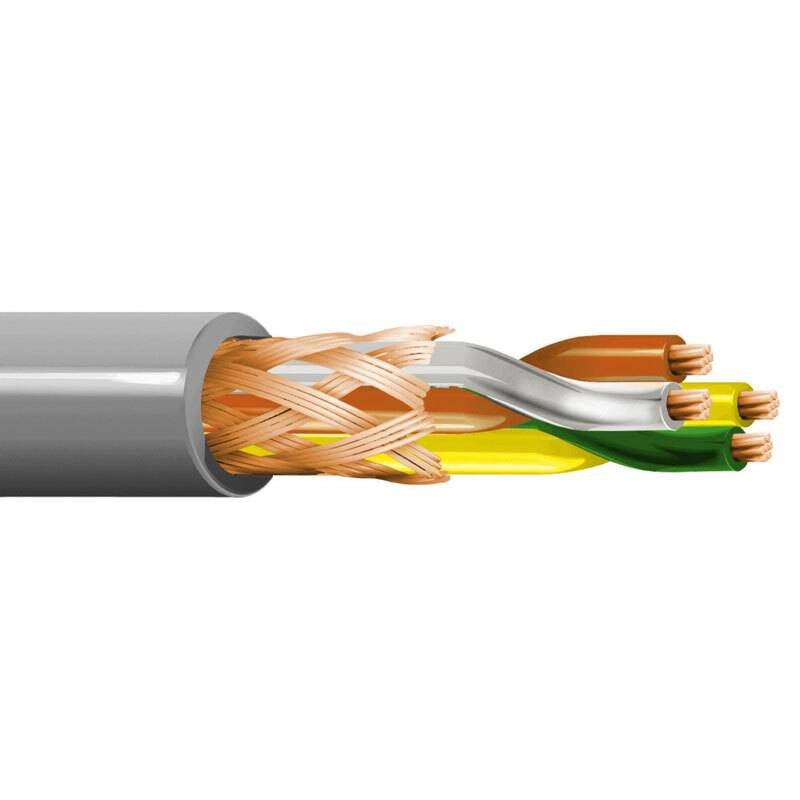

Shielded Flameproof Cable FROH2R 2x2x0,75 mmq 100 m
ITC LX-27GRM100
8029427033332
ITC Belden FROH2R Flame-retardant shielded energy cable with the following characteristics:
- Cross-section: 2x2x0.75 sq. mm
- Conductor diameter: 1.1 mm
- Insulation thickness: 0.4 mm
- Sheath thickness: 0.7 mm
- Outer diameter: 5.8 mm
- Maximum electrical resistance: 26 /km
The sales price is per metre.
Minimum saleable quantity: hank of 100 metres.
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Shielded Flameproof Cable FROH2R 2x2x0,75 mmq 100 m
€2.26
€2.26
Shielded Flameproof Cable FROH2R 2x2x0,75 mmq 100 m
The minimum purchase order quantity for the product is 100.
€2.26
Tax included
Tax included
Items Available: 1500
Shielded Flameproof Cable FROH2R 2x2x0,75 mmq 100 m
€2.26
The minimum purchase order quantity for the product is 100.
Buy it within and receive it from Monday, 11 November
Two-year warranty
Characteristics:
- Conductors: Annealed red copper CEI EN 60228
- Insulation: PVC of R2 quality CEI EN 50363
- Shielding: Al/Pet tape
- Shielding: Annealed red copper braid
- Sheathing: TM2 quality PVC CEI EN 50363
- Sheath colour: Grey
- Low halogen emission: (< 22%) IEC 60754-1
- Oil resistant: CEI 20-34/0-1
- Electrical resistance: (0.22 mm² <= 91 ohm/km) (0.35 mm² <= 57 ohm/km)
- Rated voltage Uo/U: 450/750 V
- Maximum voltage: 825 V
- Test voltage: 2500 V
- Max. operating temperature: 70 degrees
- Short-circuit temperature: 160 degrees
Use:
- For fixed installation indoors in normal or humid environments and temporarily outdoors. They can be installed on catwalks, pipes, conduits and similar systems. Underground installation is not permitted
- For cross-sections of less than 1.5mmq they are suitable for the transmission of signals and commands for the interconnection of instrumentation and control systems with digital or analogue signal transmission
- For larger cross-sections they are suitable for the transport of energy and the transmission of signals and commands, intended for interconnection between parts of construction machines, equipment in general including machine tools, where a certain degree of protection against electromagnetic (copper braid) and electrostatic (aluminium/polyester tape) interference is required
- In rooms that do not present a high risk in the event of fire such as buildings intended for civil use, with a fire height of less than 24 m, waiting room, bar, restaurant, doctor's surgery
Data sheet
- Colour:
- Grey
- Cross-Section:
- 0.75mmq
- With yellow/green:
- No
- Number of cables:
- 4
