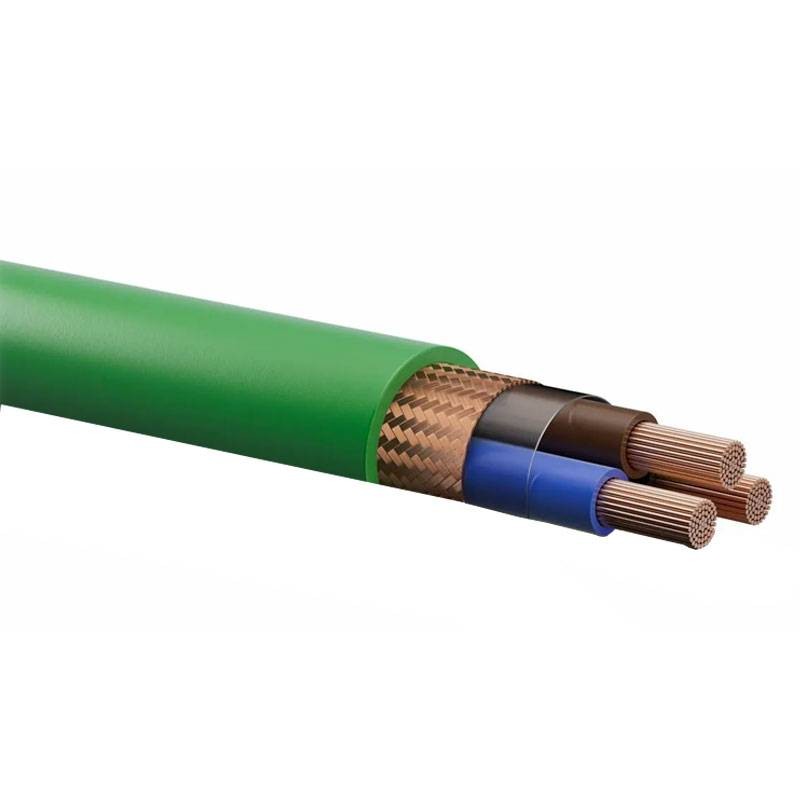

Shielded multi-core cable 2x2.5 mmq 0.6/1kV LSZH FG16OH2M16
9X9 FG16OH2M162X2,5
FG16OH2M16 2 x 2.5 sq mm shielded multi-core cable with the following characteristics:
- Section: 2 x 2.5 sq. mm
- Outer diameter: 11 mm
- Conductor resistance: 7.98 Ohm/km
- Capacitance dc - cs: 120 - 220 pF/m
- Inductance: 0.9 L H/m
Multi-core LSZH cable for power and signaling with very low smoke and toxic gas emission.
Sold by the meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Shielded multi-core cable 2x2.5 mmq 0.6/1kV LSZH FG16OH2M16
€1.83
€1.83
Tax included
Tax included
Items Available: 1292
: 1034
Two-year warranty
Features:
- Conductor: Flexible red copper, class 5
- Insulation: HEPR rubber-based compound, G16 quality
- Shielding: Red copper braid on the total
- Outer sheath: LZH compound based on thermoplastic material, M16 quality
- Outer sheath color: Green
- Core operating voltage: 0.6/1kV
- Sheath operating voltage: 0.6/1kV
- Test voltage: 4000V
- Min. insulation resistance at 20°C > 200 M:xKm
- Operating temperature: -40/+90 degrees
- Maximum short circuit temperature: +250 degrees
Multi-core LSZH cable for power and signaling with very low smoke and toxic gas emission. It is especially suitable in places with fire danger and high presence of people such as schools, offices, theaters, hospitals, etc.
It is suitable for installation inside even wet environments and can be installed on masonry and metal structures, on walkways, in pipes, ducts and similar systems. Shielding contributes to protection against electromagnetic interference. The cable, if stored/placed outdoors, must be UV protected. Underground, direct or indirect laying permitted.
There are no reviews
Data sheet
- Colour:
- Green
- Type:
- FG16OH2M
- Cross-Section:
- 2.5 mmq
- With yellow/green:
- No
- Number of cables:
- 2
