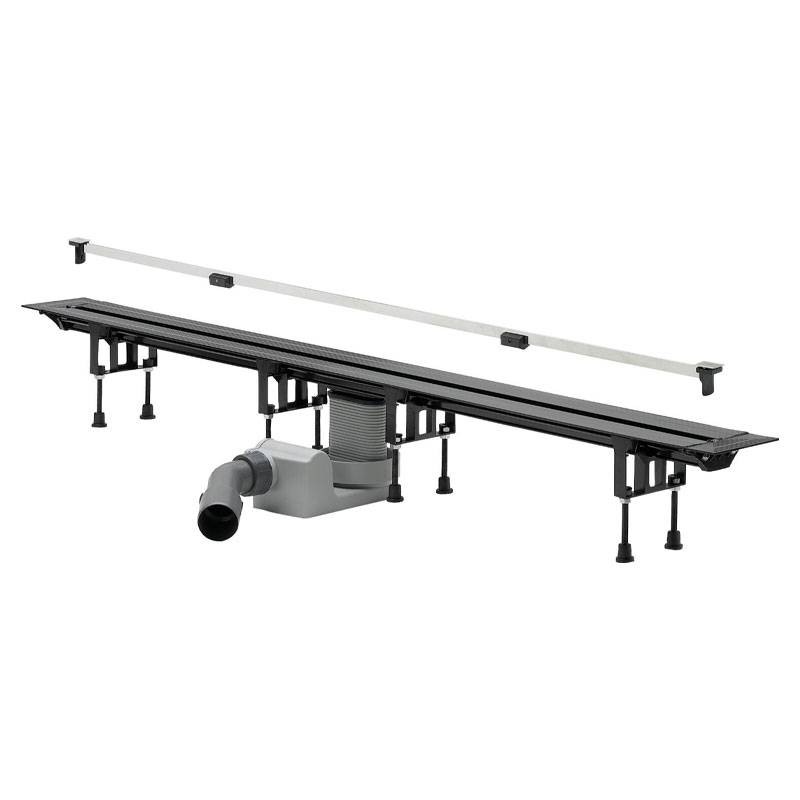

Viega Advantix Vario Base Body cut to size 95 mm 686277

Viega
VGA 686277 4015211686277

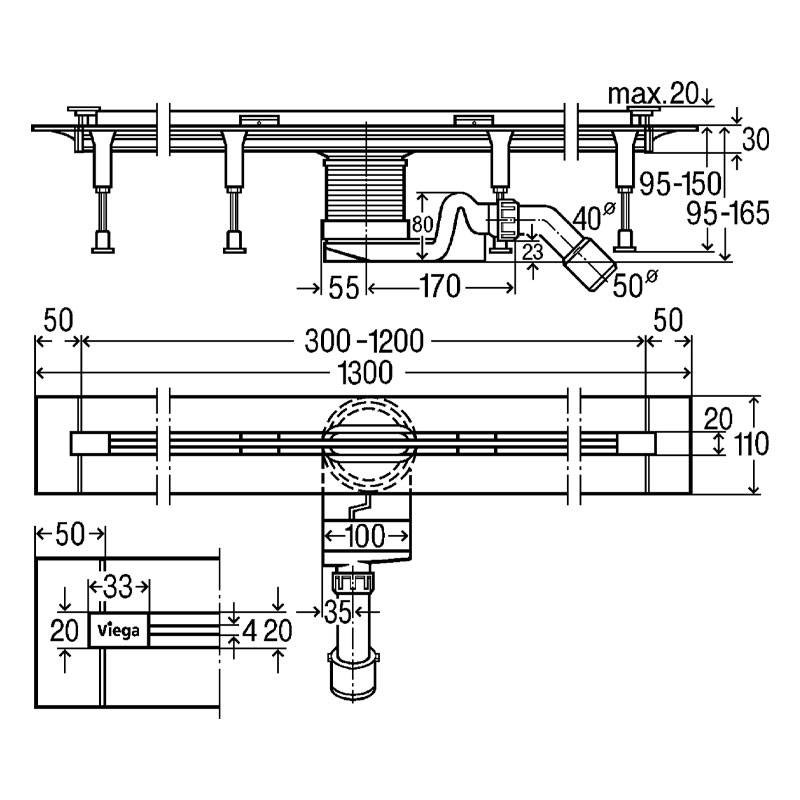

Advantix Vario Viega Base Body can be cut to size 95 mm with the following features:



  • Water column height: 50 mm
  • Discharge capacity 10 mm: 0.4l/s
  • Discharge capacity 20 mm: 0.8l/s
  • Length: 300-1200 mm
  • Installation height: 95-150 mm
  • Nominal diameter: 40/50 mm
  • Material: plastic



Suitable for: fluid waterproofing (tiled showers) or waterproofing liner.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Viega Advantix Vario Base Body cut to size 95 mm 686277

€398.59
€398.59

Viega Advantix Vario Base Body cut to size 95 mm 686277

€398.59
Tax included
Items Available: 3
Further availability of the manufacturer

Viega Advantix Vario Base Body cut to size 95 mm 686277

€398.59

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Supply:

  • Adjusting feet set
  • End caps
  • Siphon with good self-cleaning properties
  • Height-adjustable lath grating support
  • Supporting waterproofing flange
  • Waterproofing accessories
  • Cutting jig




Warnings: Due to the elevated position of the connection pipe, laying the screed in the overlying layer may be difficult as it is thin. It is recommended to take this into account by acting on the size of the tiles and/or applying a suitable filler product.

There are no reviews

Data sheet

Type:
Drains
