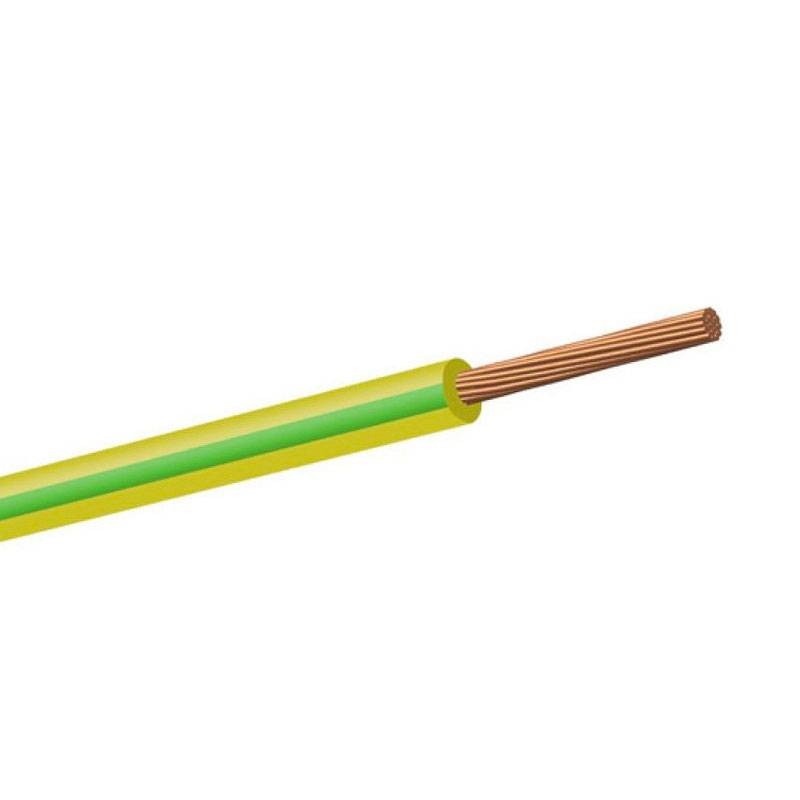

FG17 cable 1x120 qmm 450/750 V
9X9 FG171X120GV
FG17 1x120 sq mm 450/750 V cable with the following characteristics:
- Conductor diameter: 13.7 mm
- Insulation thickness: 1.6 mm
- Production diameter: 16.9 mm
- Maximum electrical resistance at 20°C: 0.161 ohm/ km
- Current carrying capacity at 30°C in air tube: 312A
Sale per meter.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
FG17 cable 1x120 qmm 450/750 V
€20.15
€20.15
Tax included
Tax included
Items Available: 283
: 101
Two-year warranty
Energy cable insulated with G17-quality elastomeric compound, with special fire reaction characteristics and complying with the Construction Products Regulation (CPR).
Features:
- Rated voltage Uo/U: 450/750 V
- Maximum operating temperature: 90°C
- Minimum operating temperature: -30°C (in the absence of mechanical stress)
- Minimum installation temperature: -15°C
- Maximum short-circuit temperature: 250°C
- Maximum tensile stress: 50 N/mm2
- Minimum bending radius: 4 times the maximum outer diameter
Conditions of use: Especially suitable in places with fire hazards and high presence of people. For installation within exposed or recessed piping or similar closed systems. For fixed and protected installation within lighting fixtures or switching and control equipment. When the installation is protected within switchgear and control equipment these cables are permitted for voltages up to 1000 V AC or 750 V DC to ground. The 1 mm² cross-section is intended only for electrical circuits of elevators and hoists or for internal connection of switchgear for signaling and control. Not suitable for outdoor installation. (ref. IEC 20-40).
There are no reviews
Data sheet
- Colour:
- Yellow Green
- Cross-Section:
- 120mmq
- With yellow/green:
- No
- Number of cables:
- 1
