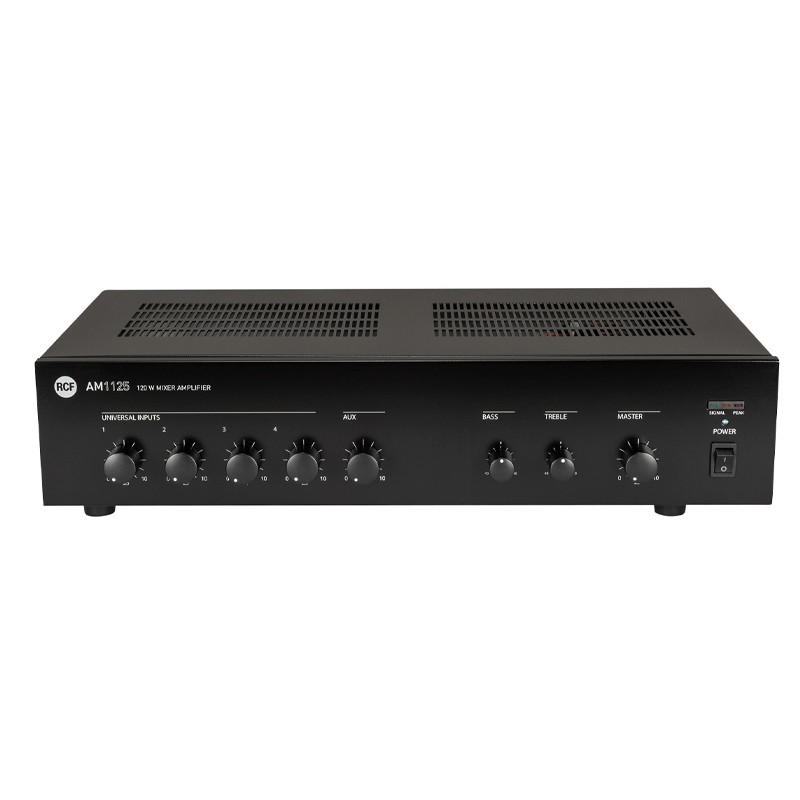

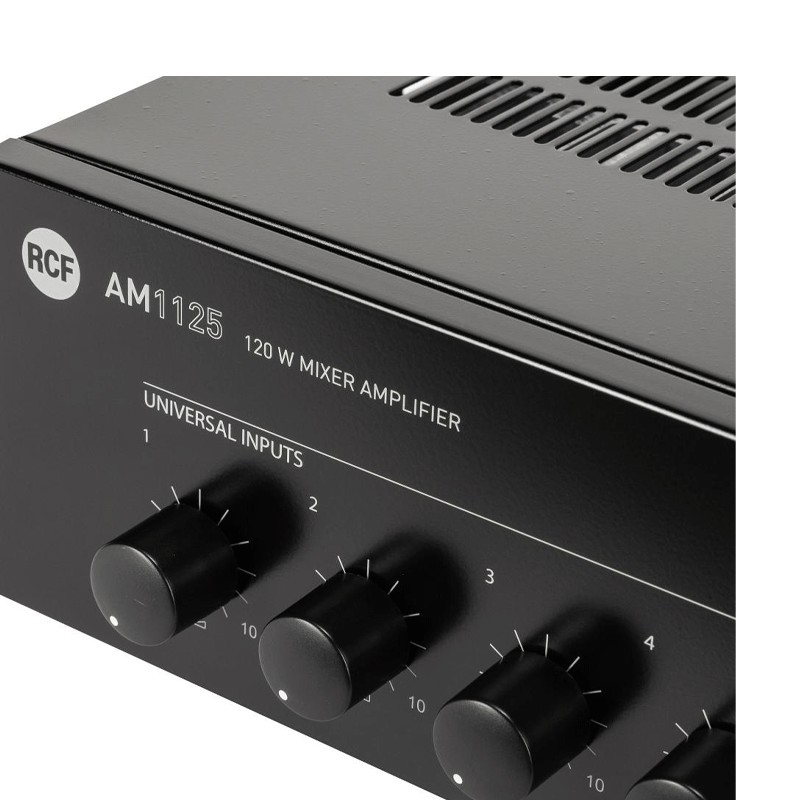

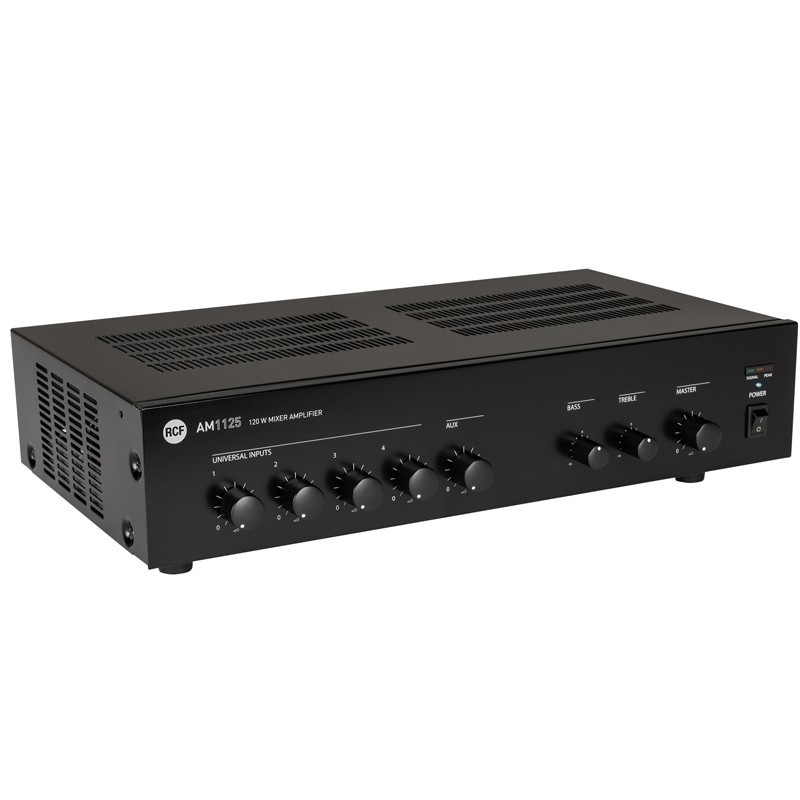

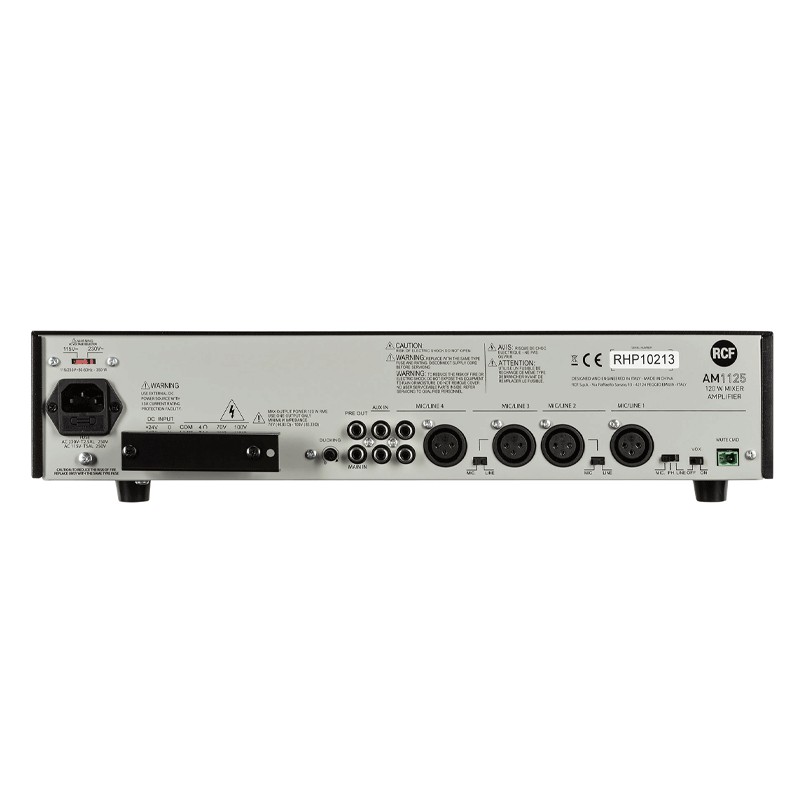

RCF MIXER 120W 4-input Audio Amplifier 12135082 AM1125
MAD 12135082
8024530007638
RCF MIXER 120W Audio Amplifier, with the following characteristics:
- Operating voltage 220-240/115V
- Frequency: 50/60 Hz
- Voltage selection: external
- Power consumption ( max ): 350W
- Number of channels: 1
- Output power @ 4 ohms (W): 120W RMS
- Output power @ 100 V (W): 120W RMS
- Frequency Response (-3dB): 60 Hz ÷ 15 Hz
- Signal-to-noise ratio (A-weighted) >80 dB
- Distortion (THD+N) @ 1 kHz at rated power: <1.5 %
RCF MIXER 120W 4-input Audio Amplifier 12135082 AM1125
€426.65
€426.65
Tax included
Tax included
Items Available: 2
AM 1125 is a 120W power amplifier-mixer having 4 audio inputs. Input 1 has phantom power and can have priority over the other inputs via an external control or automatically thanks to the "VOX" signal detection circuit.
The dual RCA connectors can be used to connect unbalanced stereo music sources (e.g., CD - MP3 player, radio tuner, etc.).
It can be powered by direct current via batteries (voltage: 24 V), to ensure its operation even when mains power is not available.
Strengths:
- 120W mixer amplifier with 3 inputs
- 4 XLR inputs
- VOX function and phantom power on input 1
- Dual additional RCA connectors on input 3
- Auxiliary input with dual RCA connectors
- DUCKING function for controlling the level of the auxiliary input
- Output on RCA connector that sends the same signal sent to the amplifier
- Input on RCA connector that connects an external device directly to the internal amplifier
Other technical features:
- Total number of inputs: 6
- Balanced: 4
- Unbalanced: 6
- Mono: 5
- Stereo: 2
- Line inputs: 2
- Line Connections: RCA
- Mic+Line inputs: 4
- Mic+Line Connections: RCA, XLR
- Phantom Mic+Line 18V DC
- Voice: yes
- Page connection: XLR
- General Purpose Input (GPI): 1
- Number of signal outputs: 1
- Signal output connections: RCA
- Power connections: Euroblock
- Tone controls: yes
- CE marked
- Body material: metal
- Colour: black
- Rack mounting: 19", 2U
Configuration and control:
- Configuration: front panel
Protections:
- Cooling: Convention
- Short Circuit: yes
- Thermal protection: yes
- DC: yes
- Fuses: yes
Dimensions and weight:
- Height: 88 mm / 3.46 inches
- Width: 431 mm / 16.97 inches
- Depth: 385 mm / 15.6 inches
- Weight: 7.3 kg
