RCF Microphone Base with RJ45 post 14322008 BM3001
MAD 14322008
8024530006228

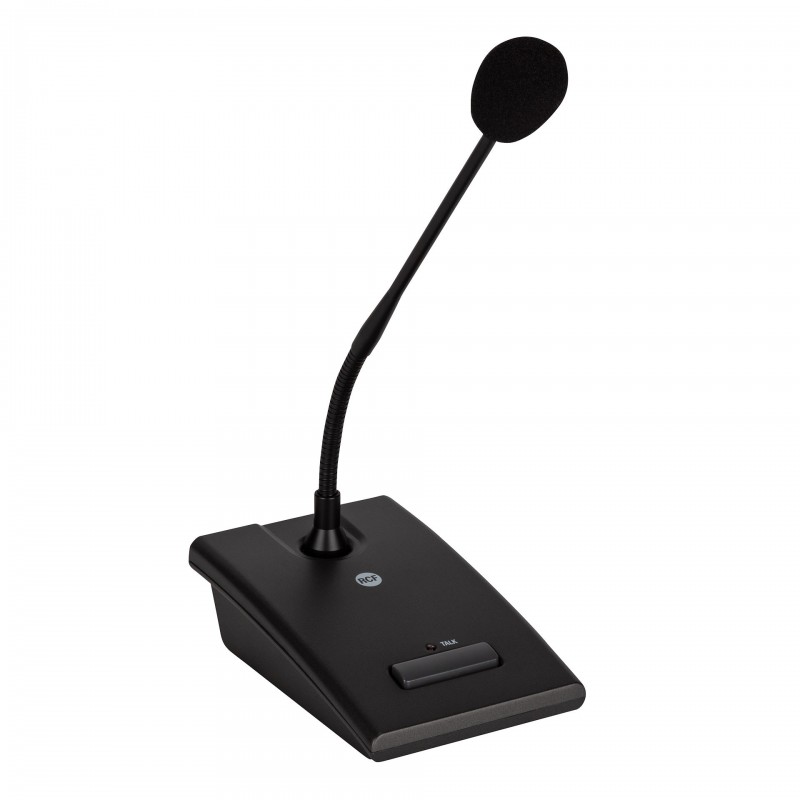

Microphone base RCF ads, with the following features:
-
Type: Desktop paging microphone with electret capsule
-
Directivity: Cardioid
-
Sensitivity (dB): -65 dB
-
Power consumption (mA): 2.80 mA
-
Connections: Connectors: RJ45
-
Functionality: Smart PTT: yes
-
Frequency response (-3dB): 50 Hz ÷ 18 kHz
-
Minimum Load Impedance (ohm): 470.00 ohm
RCF Microphone Base with RJ45 post 14322008 BM3001
€156.73
€156.73
Tax included
Tax included
Items Available: 8
: 1
The desktop microphone stand BM 3001 allows announcements to be made to a single zone and is the ideal complement to the RCF ES 3160 mixer-amplifier (with radio tuner and built-in CD/USB-MP3 player). It can also be used with other mixer-amplifiers having "Phantom" power supply (18 ÷ 48 VDC). Inputs 2 and 3 of the RCF ES 3160 mixer-amplifier have (each) an RJ 45 connector for quick connection of a BM 3001 microphone stand (via CAT5 cable).
Advantages:
-
Particularly shock and chafing resistant plastic housing with 300 mm long flexible arm
- Microphone insertion keys with LED indicator
- Phantom microphone power supply from 18 to 48 Vdc
- Prepared for direct connection to amplifiers ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080, UP 2161, UP 2321, UP 2081
- Chime activation in ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080
- Windshield made of polyurethane foam
- CAT5 FTP cable for connection with amplifier 5 m long with RJ45 connector
Other technical features
- Nominal output voltage @3.3 kohm (mV RMS): 100.00 mV RMS
- Phantom power supply: yes
- Phantom power supply: 18V DC - 48V DC
- Console Type: Paging
- General Calling: Yes
- Number of zones: 1
- LED indicators: Yes
- Cable included: yes
- Cable length: 5 meters
- Cabinet/Case Material: plastic
Dimensions:
- Height: 48 mm / 1.89 inches
- Width: 100 mm / 3.94 inches
- Depth: 159 mm / 6.26 inches
- Weight: 0.73 kg / 1.61 lbs
There are no reviews
Data sheet
- Type:
- Microphone stands
