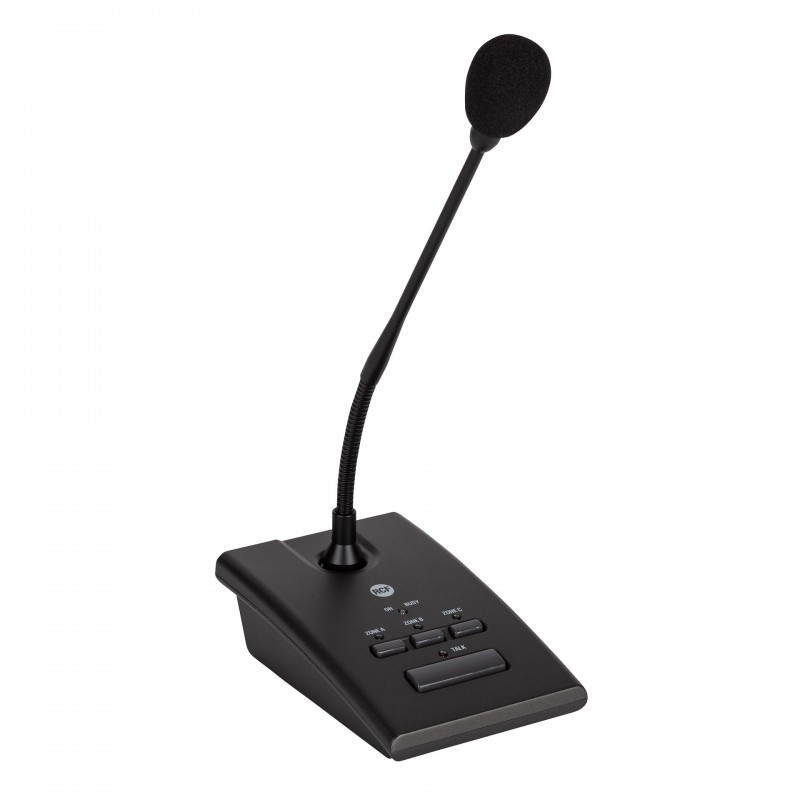

RCF microphone base with column for ES3323 14322012 BM 3003
MAD 14322012
8024530006617
Announcement microphone base with RCF 3-zone selection, with the following characteristics:
- Rated output voltage @3.3 kohm (mV RMS): 100.00 mV RMS
- Power consumption (mA): 2.80 mA
- Type/model: tabletop with electret capsule
- Directivity: Cardioid
- Sensitivity (dB): -65 dB
- Frequency Response (-3dB): 50 Hz ÷ 18 kHz
- Minimum Load Impedance (ohms): 470.00 ohms
- Console type: paging
RCF microphone base with column for ES3323 14322012 BM 3003
€261.21
€261.21
Tax included
Tax included
Items Available: 3
It allows selective announcements to 3 zones and is the ideal complement to the RCF ES 3323 mixer-amplifier (with radio tuner and built-in CD/USB-MP3 player).
Inputs 2 and 3 of the RCF ES 3323 amplifier have (each) an RJ45 connector for quick direct connection of a BM 3003 microphone base (via CAT5 cable) or a line consisting of up to 12 BM 3003 microphone bases using one or more additional power supplies.
Strengths:
- Plastic body particularly resistant to impact and chafing, with 300 mm long flexible arm

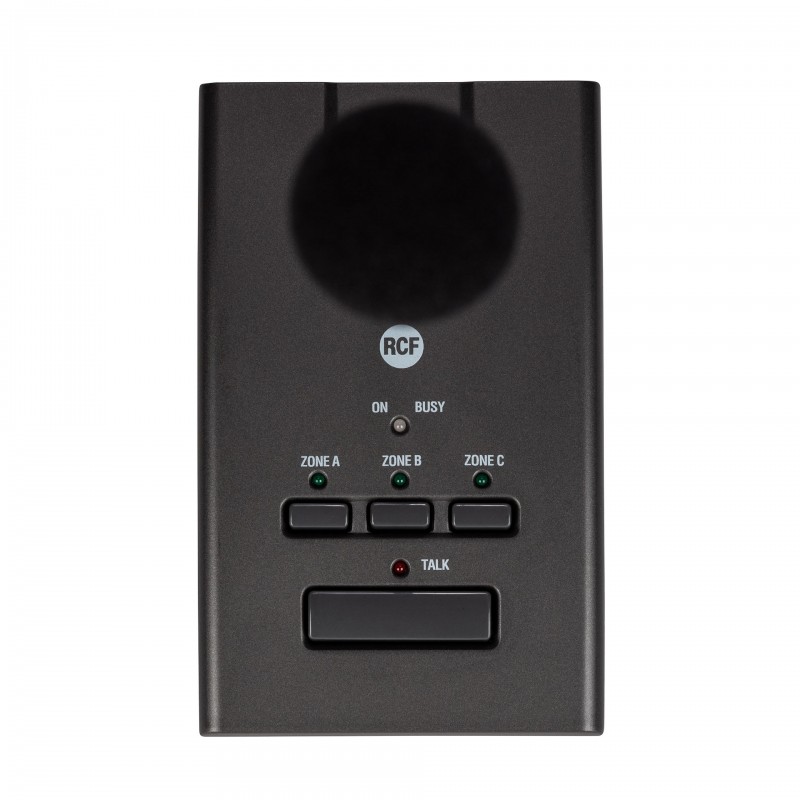

- Keys for microphone and zone insertion with LED indicator
- Phantom microphone power supply from 18 to 48 VDC for the first BM 3003 connected ES 3323
- Prepared for direct connection to ES 3323 amplifiers
- External power supply to be used from the second BM 3003 microphone base onward
- 2 Lines consisting of up to 12 BM 3003 microphone bases
- Polyurethane foam wind cap
- Cable for connection with amplifier (5 meters long equipped with RJ45 connector)
Other technical features:
- General call: yes
- Selective call: yes
- Number of zones: 3
- LED indicators: yes
- Connectors: RJ45
- With functionality: Smart PTT
- With cable included, (cable length 5 meters)
- Conforms to CE mark
- Body material: plastic
Dimensions and weight:
- Height: 48 mm / 1.89 inches
- Width: 100 mm / 3.94 inches
- Depth: 159 mm / 6.26 inches
- Weight: 0.73 kg / 1.61 lbs
