RCF Mixer Amplifier with Mp3 player 80W 2 inputs 12135107
MAD 12135107
8024530012717
RCF ES 3080 mixer amplifier with Mp3 player 2 inputs with the following features:
- Audio source with 80W amplifier
- MP3 player controlled from front panel
- MP3 inputs: USB pens, SD card, AUX jack 3.5mm
- Bluetooth connection with external sources
- 2 universal inputs on removable connectors and one auxiliary input
- Gain and tone control on auxiliary input with RCA connector and MP3 player
RCF Mixer Amplifier with Mp3 player 80W 2 inputs 12135107
€583.38
€583.38
Tax included
Tax included
Items Available: 2

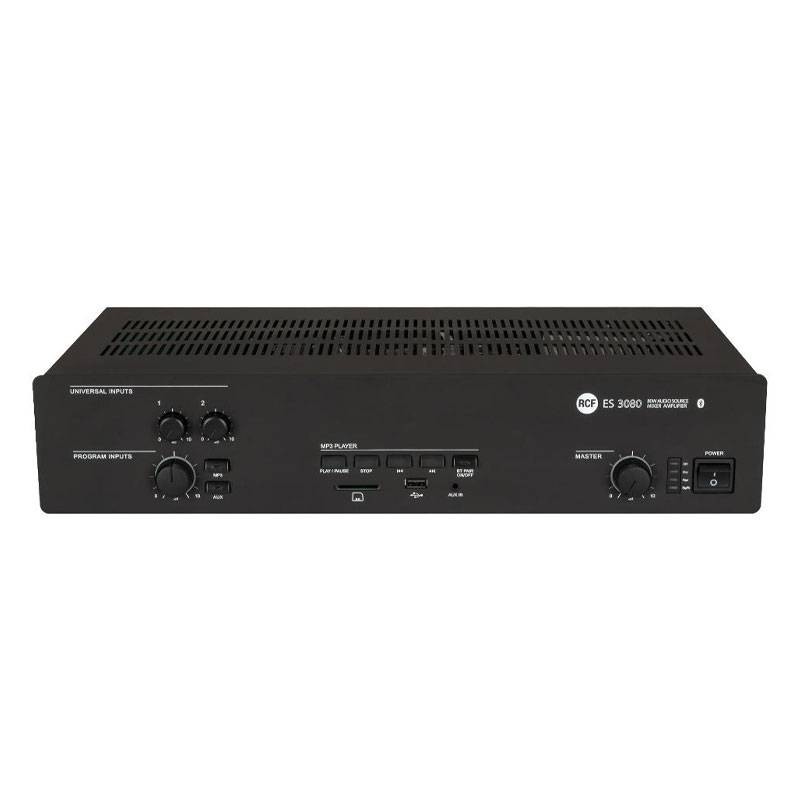

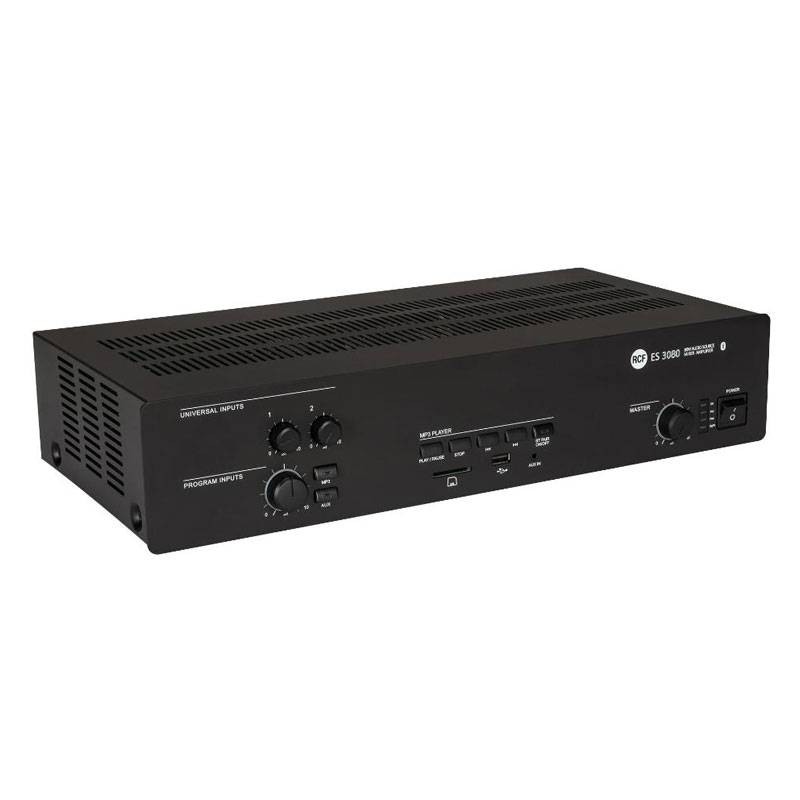

ES 3080 is an 80W power mixer-amplifier with MP3 player directly accessible on the front panel. It can read USB pens, SD cards, has an auxiliary input with 3.5 mm jack and Bluetooth technology for connection with external sources.

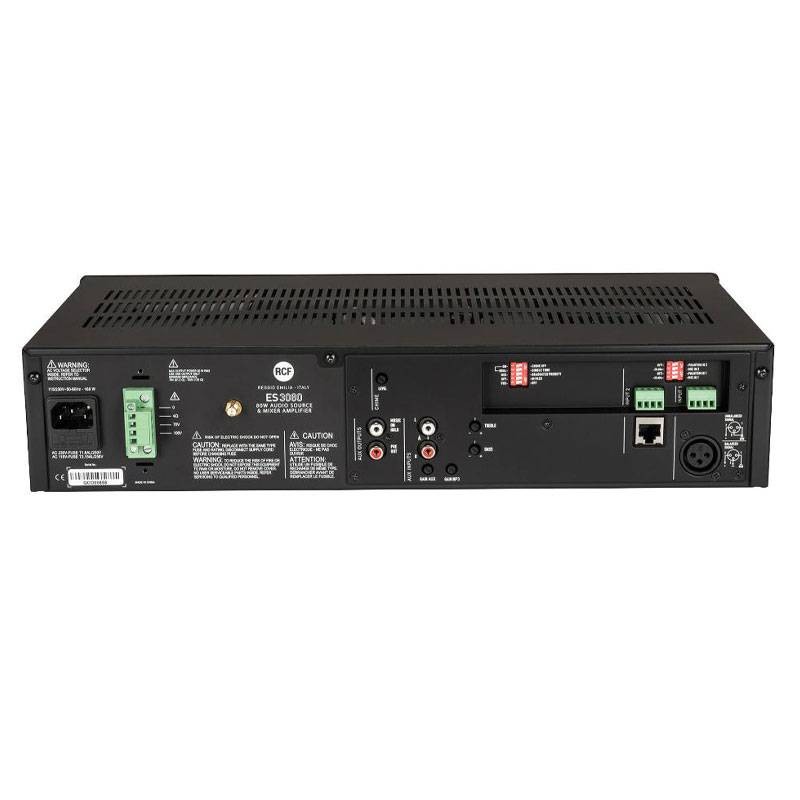

It also offers 2 universal audio inputs (microphone - line) on removable connectors (input 1 also has XLR connector). Input 2 also has an RJ 45 connector for quick connection of a dedicated BM 3001 microphone stand (using CAT5 cable). Inputs 1 and 2 can get priority (if enabled) via an external control (connected to the removable connector or RJ 45 port).
The MUSIC ON HOLD output sends the signal from the internal MP3 player to additional amplifiers or to a telephone exchange (as hold music). The PRE OUT output (reporting the signal sent to the internal amplifier) allows the connection of additional external amplifiers.
The 2 universal inputs have high-pass filters (switchable via a common microswitch) useful for improving voice intelligibility. The auxiliary AUX INPUT and MP3 player have tone controls. There are indicator lights related to device status (ON, PROT), priority circuit enable (PRIOR) and audio signal level (SIG/PK).
Features:
- Configurable input priority and VOX function on input 1.
- MUSIC ON HOLD auxiliary output for sending audio signal to external amplifiers or telephone switchboards
- PRE OUT output for connecting external amplifiers
- HI-PASS filter on inputs 1 and 2
- Gain and tone control on auxiliary input with RCA connector and MP3 player
- Number of signal outputs: 2
- Signal output connections: RCA
- Power connections: Euroblock
- Operating voltage: 220-240/115V - 50/60Hz
- Cabinet/case materials: Metal
- Color: Black
- Rack Mount: 19", 2U, optional rack mount accessory required
- Height 88 mm
- Width 442 mm
- Depth 230 mm
Input Section:
- Total number of inputs 5
- Balanced 5
- Unbalanced 1
- Mono 4
- Stereo 2
- Line inputs 2
- Line connections JACK, RCA
- Mic+Line Inputs 2
- Mic+Line Connections Euroblock, XLR
- Phantom Mic+Line 30 V DC
- Paging inputs 1
- RJ45 paging connection
- Paging Command Contact
