RCF PL 68-EN 6W ceiling lamp speaker 13133082
MAD 13133082
8024530011857

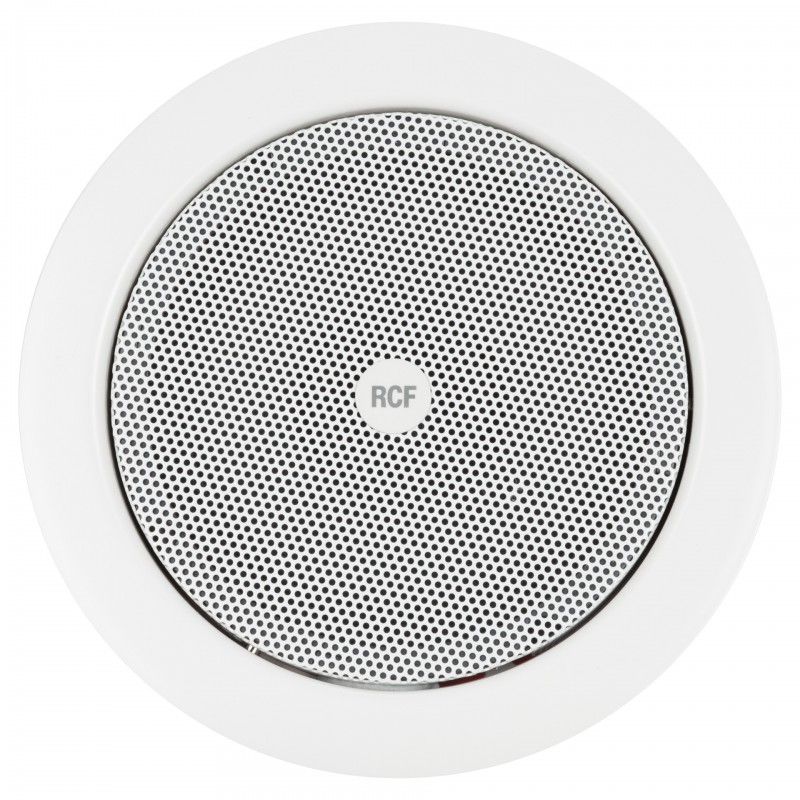

Recessed RCF ceiling/sound diffuser with the following features:
- 6" fullrange speaker
- Selectable power (100V): 6 W - 3 W - 1.5 W
- 94 dB sensitivity
- Color white RAL 9003
- Metal body, grille and back cover
- Ceramic connector for input and output
- Thermal protection fuse
RCF PL 68-EN 6W ceiling lamp speaker 13133082
€60.95
€60.95
Tax included
Tax included
Items Available: 21
: 3

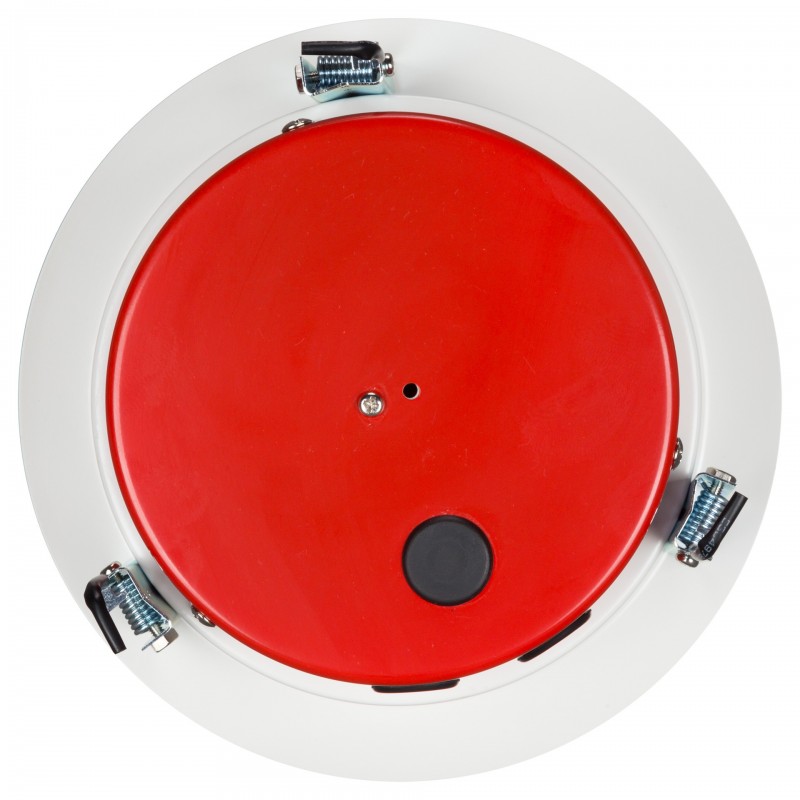

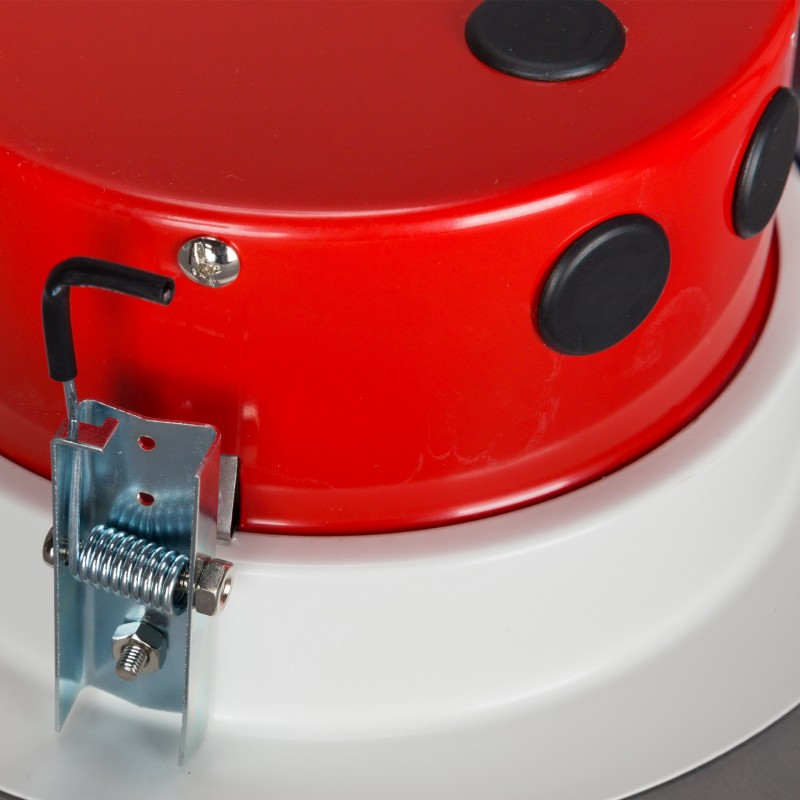

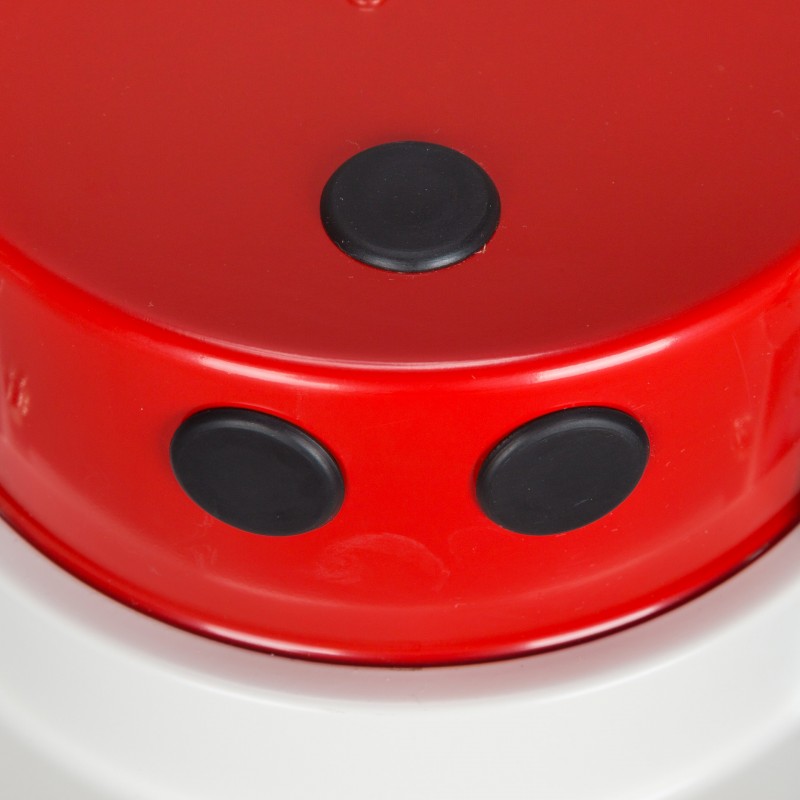

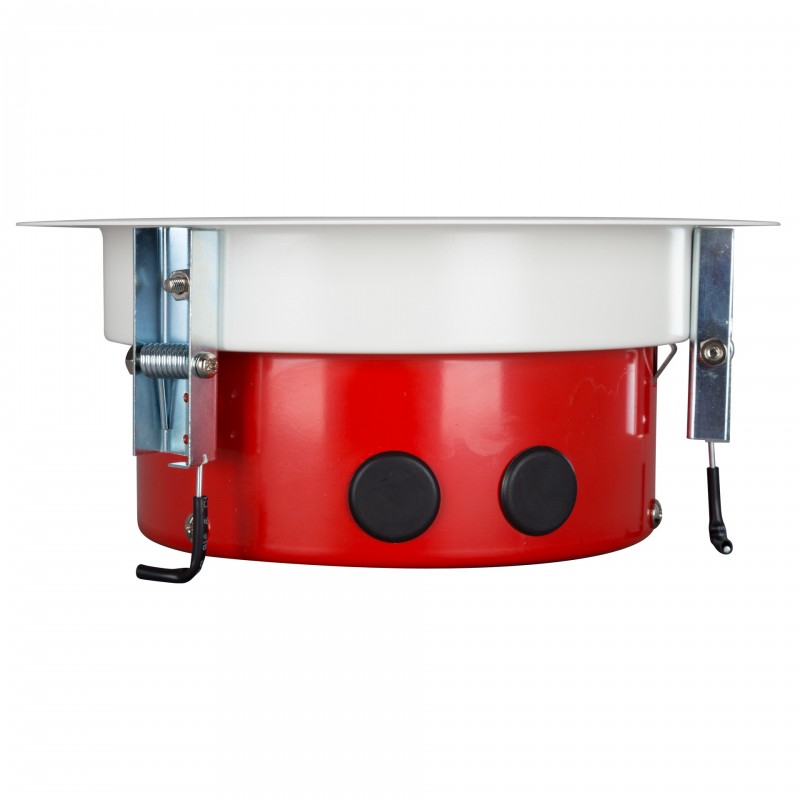

It is a ceiling-mounted loudspeaker, provided with a flame-proof steel back, which can be installed in false ceilings or panels. It is particularly indicated for the diffusion of alarm messages, thanks to the high intelligibility of voice reproduction and to the resistance to the high temperatures reached during a fire. The connection terminal blocks for the input and output flame-proof cables are made of ceramic material. A thermal fuse protects the integrity of the audio line in the event of high heat. Grounding screw available (if required for use). Internal wiring made with flame-resistant conductors.
Acoustic specifications:
- FREQUENCY RESPONSE (-10 DB): 230 Hz ÷ 20000 Hz
- MAX. A 1 M (DB): 102 dB
- MAX. A 4 M (DB): 90 dB
- COVERAGE ANGLE: 126°
- SYSTEM SENSITIVITY (DB): 94 dB
- SYSTEM SENSITIVITY 1 W AT 4 M (DB): 82 dB
Power section:
- POWER:6 W RMS
- PEAK POWER: 24 W PEAK
- RECOMMENDED AMPLIFIER: 12 W
- PROTECTIONS: Thermal fuse
TRANSDUCERS
- FULL RANGE: 6.0''
Input/Output section
- INPUT CONNECTORS: Ceramic screw terminals
- OUTPUT CONNECTORS: Ceramic screw terminals
- CONSTANT VOLTAGE TRANSFORMER: 100 V
- POWER SELECTION 1 (100 V): 6 W - 1667 ohm
- POWER SELECT 2 (100V):3 W - 3333 ohm
- POWER SELECT 3 (100V): 1.5W - 6667 ohms
Standards compliance:
- CPR NUMBER: 1488-CPR-0486/W
- EN 54-24 CERTIFIED: Yes
Physical Specifications
- COLOR: White - RAL 9003
- HARDWARE: Steel back cover
- GRID: Steel
- CABINET/CASE MATERIAL: Metal
Dimensions:
- RECESSED DEPTH: 90 mm / 3.54 inches
- DIAMETER: 220 mm / 8.66 inches
- HEIGHT: 91 mm / 3.58 inches
- WEIGHT: 1.12 kg / 2.47 lbS
- CUTTING DIAMETER: 200 mm / 7.87 inches
