Vivaldi Wall Mounted Speaker 10W/100V Black EN54-24 LARA9TB
VIL LARA9TB
8051272182613
Vivaldi wall-mounted loudspeaker with the following characteristics:
- Frequency response: 90 - 20000 Hz
- Rated power 100V: 1.25/2.5/5/10W
- Impedance 100V (@1kHz): 6.6k/3.3k/1.6k/0.97k Ohm
- Nominal impedance: 8 Ohm
- Maximum power 20W
- Rated working voltage: 100V
- IP32 degree of protection
- Color: Black
- Dimensions: 151x245x163 mm
Supplied with bracket for wall mounting.
Vivaldi Wall Mounted Speaker 10W/100V Black EN54-24 LARA9TB
€66.36
€66.36
Tax included
Tax included
Items Available: 5
: 2
The LARA9T speaker is a two-way speaker for wall mounting. It is equipped with a 10cm woofer and a 1 mylar tweeter unit. The ABS cabinet ensures excellent low-frequency performance, while the special workmanship of the tweeter housing promotes treble brilliance. It can be used in both 100V and low-impedance modes, thanks to the rear selector switch. It comes with metal bracket for mounting.

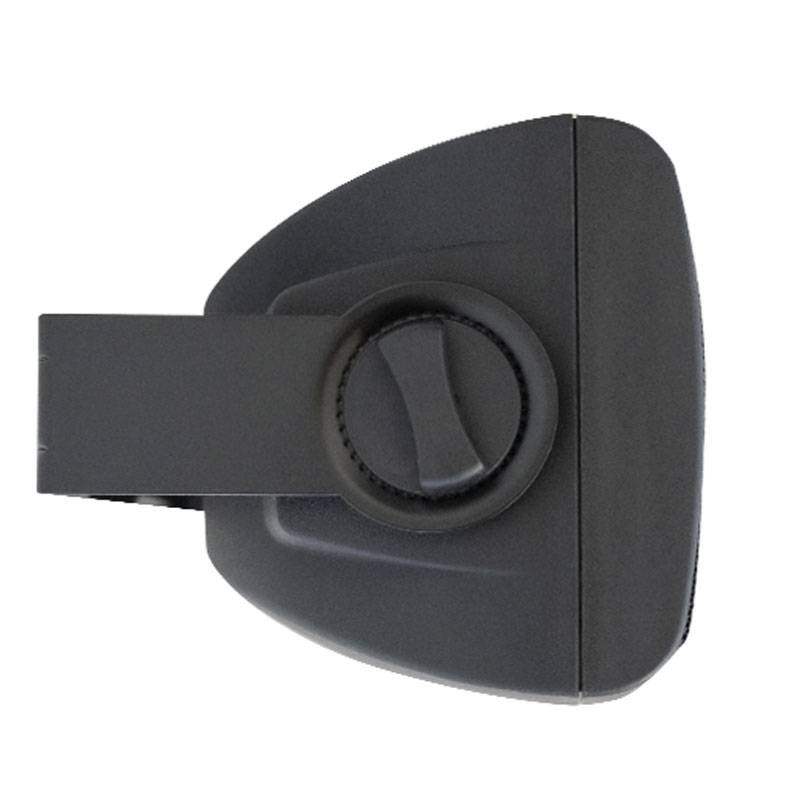

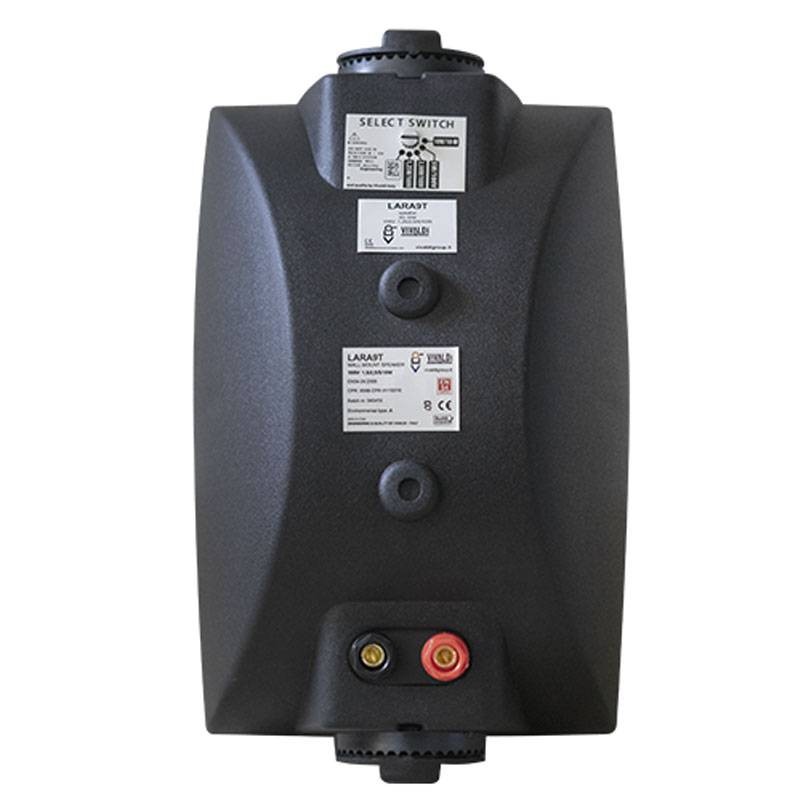

For proper installation of the speaker, attach the C-bracket using the holes on it, place the speaker inside the bracket and secure it using the provided threaded anchors. Once the speaker is secured, connect the audio line wires to the two screw terminals on the back. Connect the common of the line to the black colored terminal and the power wire to the red terminal. Select the desired operation mode and power by using the rear rotary switch. The speaker is factory set to 8 Ohm mode.
Features:
- Dimensions: 151x245x163 mm
- Weight: 1.9 kg
- Frequency response: 90 - 20000 Hz
- Sensitivity(PN 1W/1mt): 91 dB
- SPL max @10W: 101dB
- Rated power 100V: 1.25/2.5/5/10W
- Impedance 100V (@1kHz): 6.6k/3.3k/1.6k/0.97k Ohm
- Nominal impedance: 8 Ohm
- Maximum power 20W
- RNP: >= 100h
- Rated working voltage: 100V
- IP protection: 32
- Material: ABS diffuser, metal bracket
