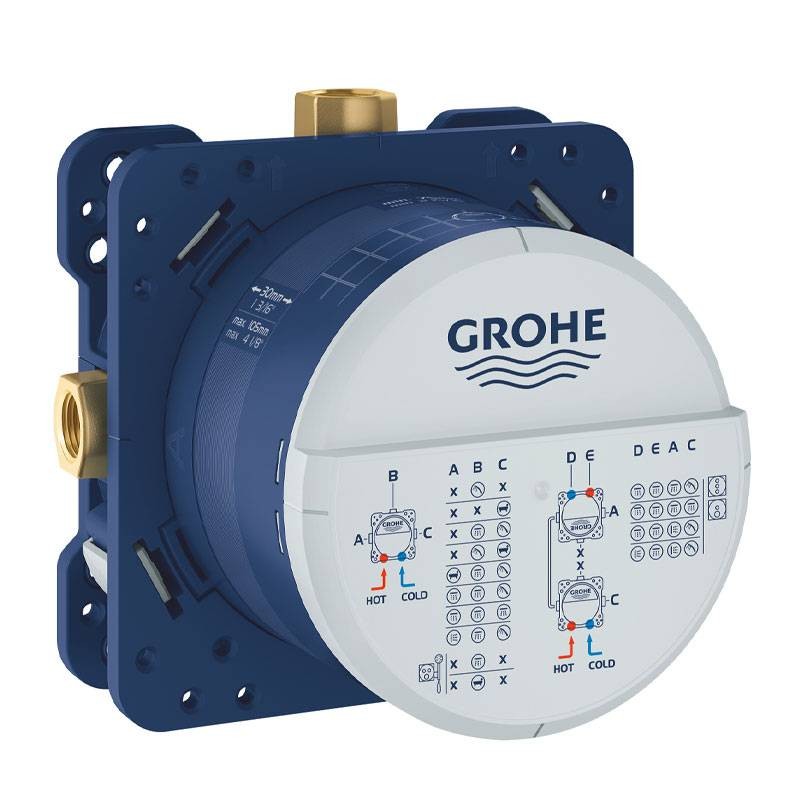

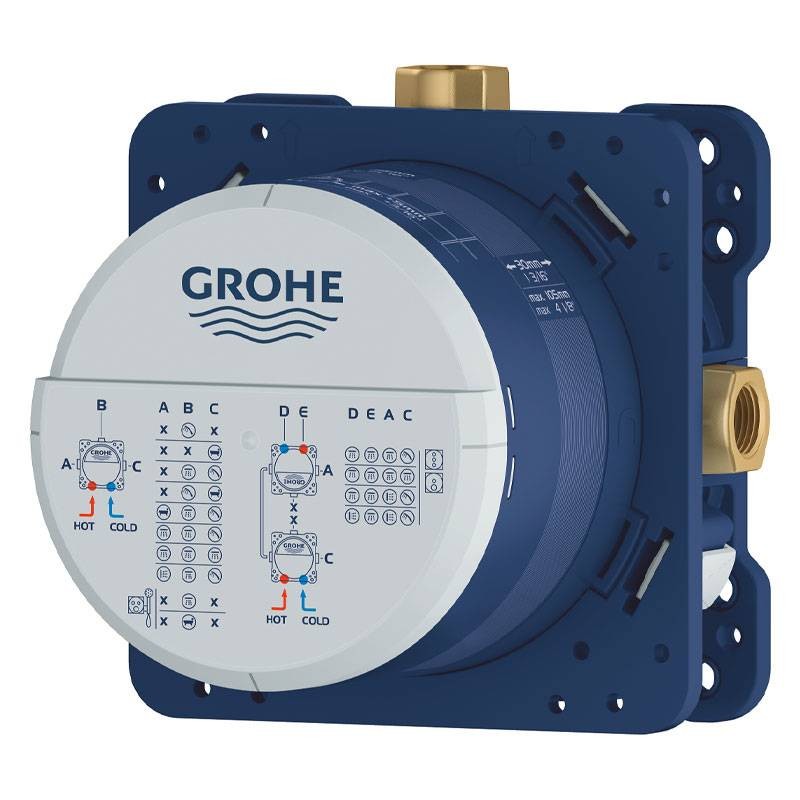

Grohe Rapido Smart Box Built-in body for shower/tub mixers 35604000
GRH 35604000
4005176698774
Grohe SmartBox Rapido flush-mounted body, universal designed for flexibility and reliability in all types of installation, versatile solution for showers and mixers, with the following features:
- 3 1/2-inch outlets
- 2 1/2-inch bottom inlets

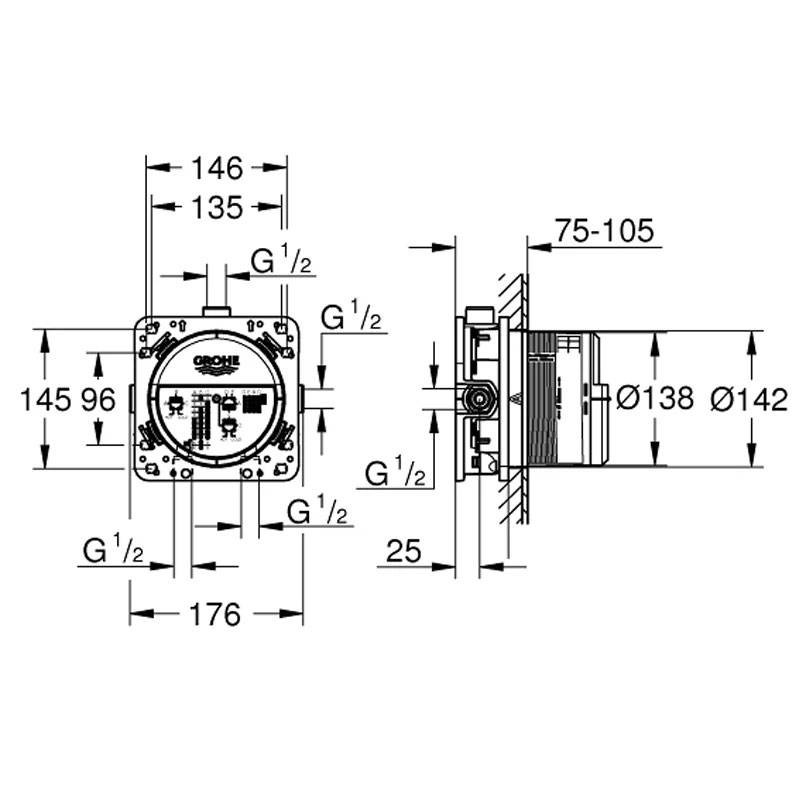

- Adjustable installation depth: 75-105 mm
- DR brass fittings for durability and strength
- Mounting template included for precise installation
- Gasket and pipe pre-wash couplers included
Grohe Rapido Smart Box Built-in body for shower/tub mixers 35604000
€60.51
€60.51
Tax included
Tax included
Items Available: 1
Grohe Rapido Smart Box concealed body for showers and mixers
The Grohe Rapido SmartBox concealed body is designed to fit a wide range of bathroom configurations, thanks to its 3 outlets and 2 inlets. It is compatible with leading Grohe faucet systems, offering maximum versatility for showers and mixers.
Easy and adjustable installation
With adjustable depths between 75 and 105 mm and an included mounting template, the Grohe Rapido SmartBox allows for precise and customized installation. Optional fasteners for solid masonry and drywall make the process even more versatile.
Strength and reliability
Made with DR brass fittings, the built-in body ensures long life and corrosion resistance. Gasket and pre-wash pipe couplings ensure optimal, trouble-free operation.
Grohe Rapido Smartbox System
- One universal basic basic body for three shower/tub functions, adjusted through a single mixing plate
- Efficient piping thanks to outlets at the bottom
- Plates adjustable up to 6°
- Minimum installation depth of only 75 mm
- Optional shut-off valves for all thermostatic mixers and SmartControl
- Compatible with check valves for two-function products
- Easy installation - side mounting without the need to use a bench vise
One universal built-in body, three outlets
With its three outlets, the GROHE Rapido SmartBox system offers a wide range of options in a single basic basic body for maximum savings in time and effort.
Standard 1/2-inch fittings
The GROHE Rapido SmartBox system makes adapters virtually obsolete-it has 1/2-inch connections compatible with all standard hoses. While other built-in bodies on the market with 3/4-inch outlets are less versatile, GROHE Rapido SmartBox is designed to be compatible with 90 percent of all pipes.
More benefits for your shower
More freedom in the shower
- All plates are ultra-thin
- All thermostatic mixers have a projection of only 43 mm
- Small plates-all plates have an extension of only 158 mm
- Perfect control
Intuitive control of shower functions
Precise control of temperature and water flow Controls up to three functions with one plate - a better shower with less expense
Wide range of different designs, shapes and colors
- Single-lever mixers to match all GROHE bathroom lines
- Two-knob thermostatic mixers, available round, square and cubic
- When renovating, replace your single-lever mixer with a SmartControl with ease
- Trustworthy quality
Universal solutions in one built-in body
Install now, choose design and technology later Meet every customer's needs Control up to nine different shower functions
Simple installation
Easy and efficient installation
- One built-in body for three functions
- Bottom outlets for functional piping
- Combination of shut-off and check valves for added safety
Subsequently adjustable up to 6 degrees
Doing a perfect job means achieving perfection even in the smallest details. Once the work is finished, it is usually difficult to fix mistakes. This is not the case with GROHE plates, which can be adjusted up to 6° even after installation, thanks to fixing holes in the functional unit that allow perfect alignment with tiles and tile joints. There is no need to use a drill, so there is no risk of damaging the wall.
Fits every wall, even the thinnest ones
With a minimum installation depth of only 75 mm, the GROHE Rapido SmartBox system is perfect for every type of wall, even the thinnest. Installation is even easier and faster in brick walls.
Maximum efficiency with pipe entry from below
Functional piping for efficient installation. The GROHE Rapido SmartBox system has outlets from below that allow a direct connection to the domestic water supply. This makes 90° fittings a thing of the past.
There are no reviews
Data sheet
- Type: Recessed bodies for taps
