Contact Female Connector Section 4/6 mm² for photovoltaic 10 pieces CNTF600
IIC CNTF600
8029045093206
Contact Solar Connector Female Section 4/6 mm² for photovoltaic with the following features:
- Dimensions: ø 19mm x L 71 mm
- Certification Mark: TUV
- Contact PIN material: silver-plated copper
- Rated current: 30A (12AWG)
- Degree of protection: IP67
- Operating temperature: -40/+85 degrees
- Flammability rating: UL94-V0
- Rated insulation voltage: 8000 VDC
- Body structure material: PC / PA
Package of 10 pieces.
Contact Female Connector Section 4/6 mm² for photovoltaic 10 pieces CNTF600
€1.84
€1.84
Tax included
Tax included
Items Available: 1339
: 1066

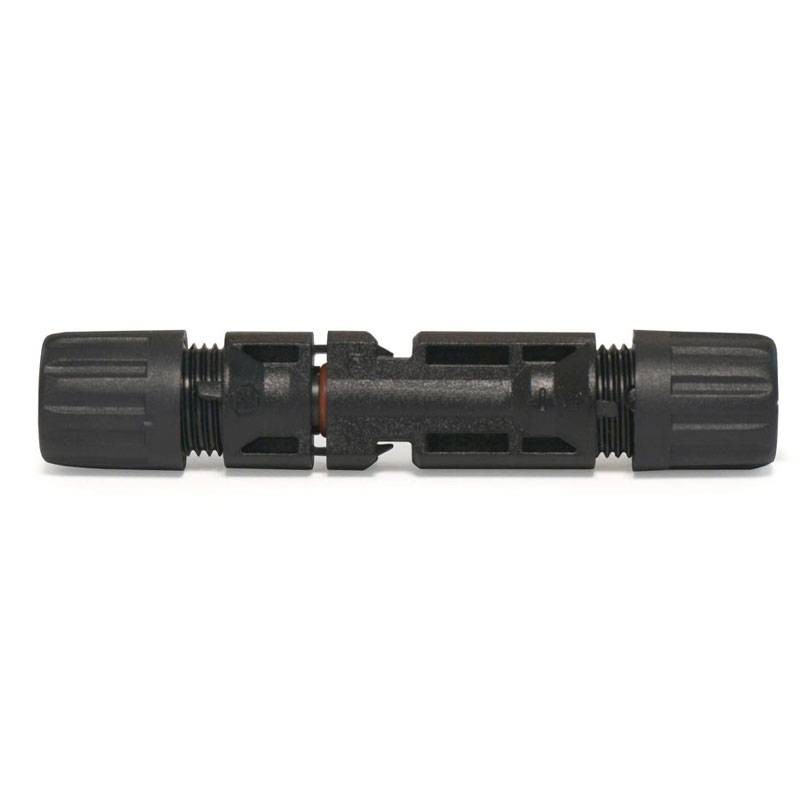

The solar connector (MC4 compatible) is used in connections between PV modules and inverters. In addition to being simple to install, it allows a quick connection that is extremely functional and reliable.

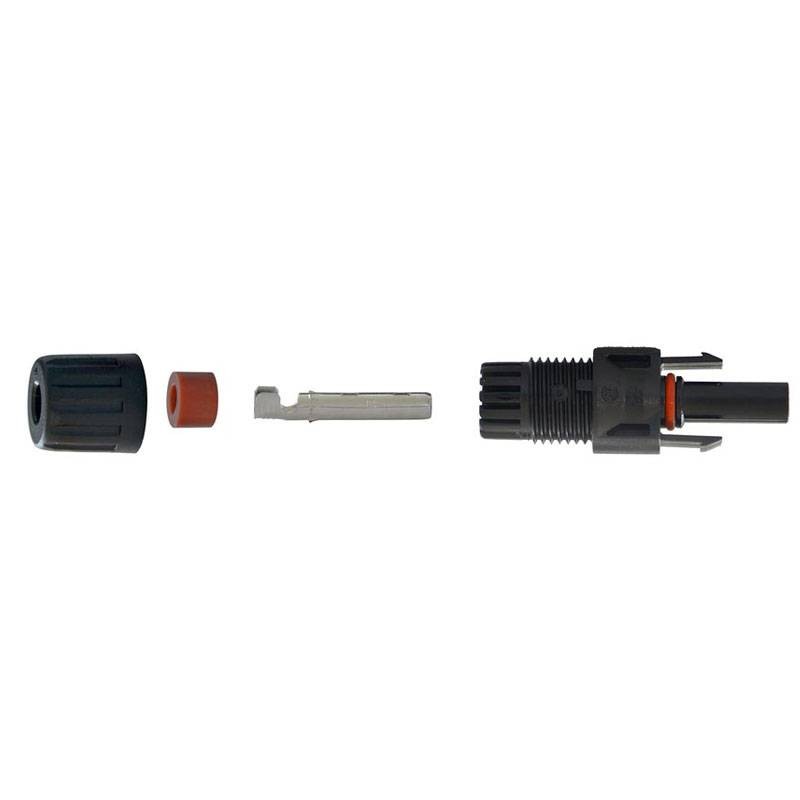

Materials:
- PC structure/body featuring a quick-connect locking mechanism.
- Silver-plated copper metal plugs (PINs) and lugs for fixing/crimping the cable
- Rubber gasket to ensure proper sealing against external agents such as moisture, dust and oils
- Conical shaped ferrule/cable crimp placed on the end of the connector
- Cable stripping and crimping using common tools
- Inserting the PIN into the body of the connector
- Tightening of the ferrule/cable gland
There are no reviews
Data sheet
- Type:
- Connectors
