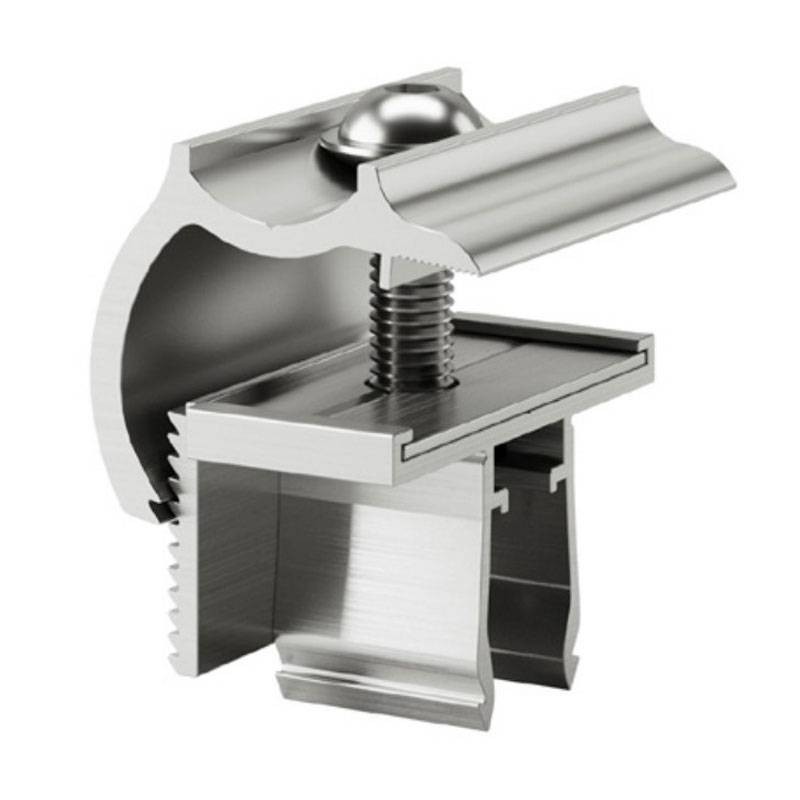

Contact Universal Terminal Clamp for Photovoltaic Frame 29/50mm KMTU2950

Contact Italia
IIC KMTU2950 8028045094510

Contact Italia universal terminal clamp for pre-assembled photovoltaics compatible with all types of module holder profiles with the following characteristics:


  • Surface treatment: T6
  • Tensile breaking load Rm: 230 Mpa
  • Elasticity limit load Rp 0.2: 200 Mpa
  • Elongation over 50 mm: 12%
  • Hardness HB: 72
  • Coefficient of linear thermal expansion between 20°C and 100°C (1/°K): 23*10^-6
  • Predisposition to oxidation surface treatment: excellent
  • Maximum Sensed Tear Load: 181.1 kg
  • Recommended tightening torque: 13 Nm
  • Tightenable module thickness: 29 50 mm

corr ACC0001 - ACC0001-M12 - VT0006 - VT0009 - VT0019 - VT0020 - VT0023 - VT0025 - VT1001
