Eaton Photovoltaic Switchboard IKA-SOL20-X11 EP-501984
EAO EP-501984
9010653063865

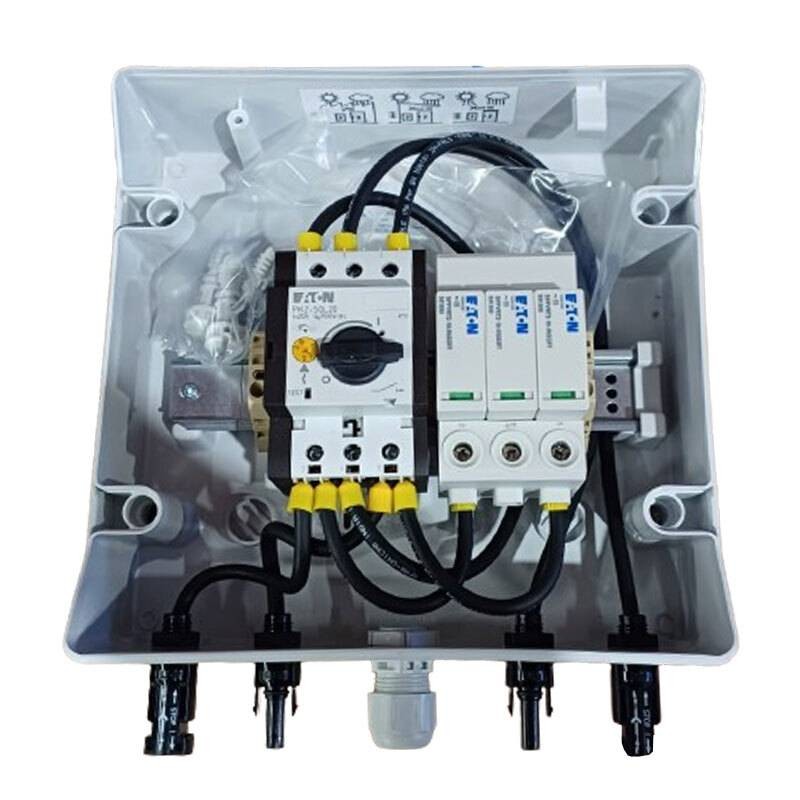

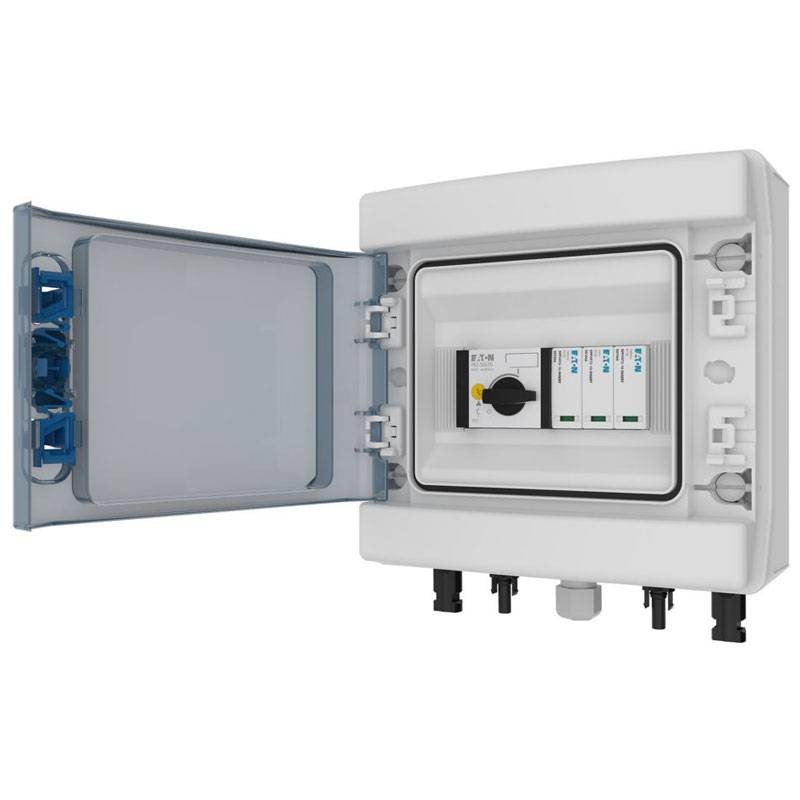

Eaton DC string switchboard for photovoltaic system IKA-SOL20-X11 consisting of:
- 1 String protection circuit breaker PKZ-SOL20 2poles 20A code 120938
- PV string on inverter input 1x IN + 1x OUT
- 1 Voltage arrester SPPVRT2-10-INSERT Type 2 1000V 3 modules
- Connection on MC4
- 1 Switchboard IKA-1/8 - 8 modules
€223.81
€223.81
Tax included
Tax included
Items Available: 4
: 2
Advantages:
- Safety: IKA-SOL Protects inverters and PV modules from both overcurrents and overvoltages on the DC side of the PV system
- IKA SOLAR Protects PV modules and inverters from both overcurrents and overvoltages on the DC side of the PV system
- Eaton certified for you according to IEC/EN 61439-2 Annex DD (PVA)
- IKA-SOL protects PV inverters & modules from short circuits and overvoltages
- String Switchgear Compliant with IEC/EN 61439-2 Annex DD (PVA)
- Designing and testing certified string switchgear (PVA) would be time-consuming for you: Eaton has prepared and certified them for you
- Effective protection is the first step to take. By using SPPVR series SPDs, IKA SOL first and foremost protects against overvoltages.
- The presence of the PKZ-SOL circuit breaker are then guaranteed safe disconnection and c.to c protection
Electrical data:
- Voltage protection level 3.8 kilovolts
- Input voltage DC max 900V
- Rated operating voltage (EU) 900V
- Rated INA current of the circuit breaker group 1x19.5A
- Rated INC current of one circuit 19.5A
- Input current per string max 19.5A
- Discharge current IN (8/20 MS) 20kA
- Total current (8/20 MS) Max 40kA
Mechanical data:
- ABS housing material (insulating material)
- Color Gray
- Housing Height 231 mm
- Length / Depth of housing 115 mm
- Width of housing 238 mm
- Exposed mounting method
- PE conductor cross section: 16 - 25 mm² - min./max.: 6 mm²
- Enclosure material Thermoplastic
- Degree of protection IP65
- Impact resistant IK10
- Min. operating temperature -5 degrees
- Max. operating temperature 40 degrees
- Number of inputs 1
- Number of module units per row 8
- Number of rows 1
- Number of string inputs 1

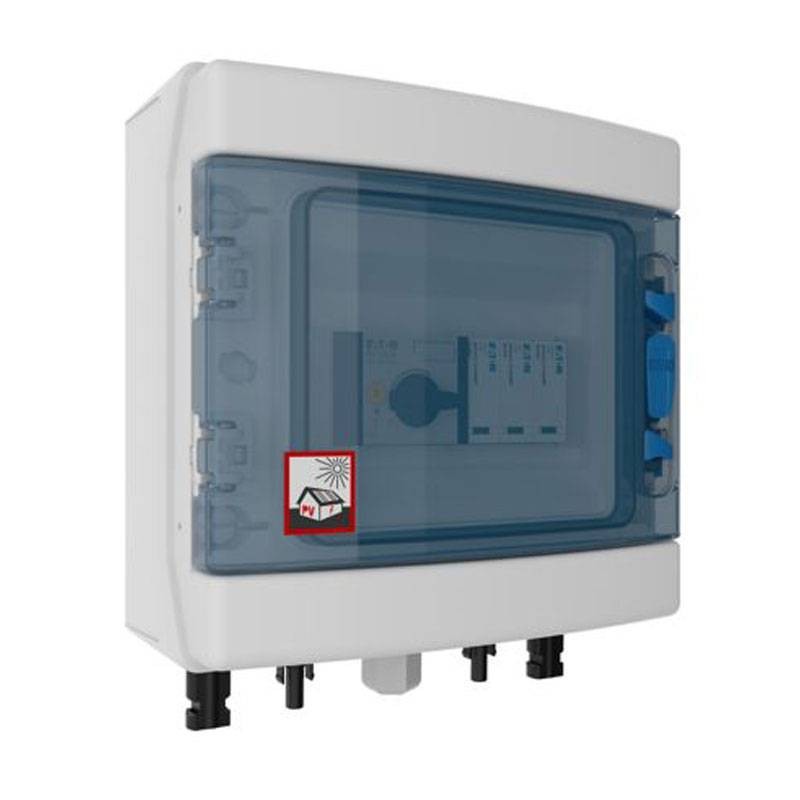

- Transparent switchboard door
- MC4 connection type
- Generator switch DC-21A
- DC 20A string circuit breaker
- PV string on inverter input 1 input + 1 output
- String protectors 2 poles
- PVA circuit breaker assembly
Features:
- Equipped with ground connection/disconnect switch
- Without monitoring function
These products comply with the IEC/EN 61439-2 Annex DD (PVA) standard:
- IKA SOLAR string switchgear has passed the rigorous tests required by IEC/EN 61439-2 Annex DD (PVA), including thermal cycling, temperature and solar radiation exposure tests. IKA SOLAR are therefore ready-to-connect.

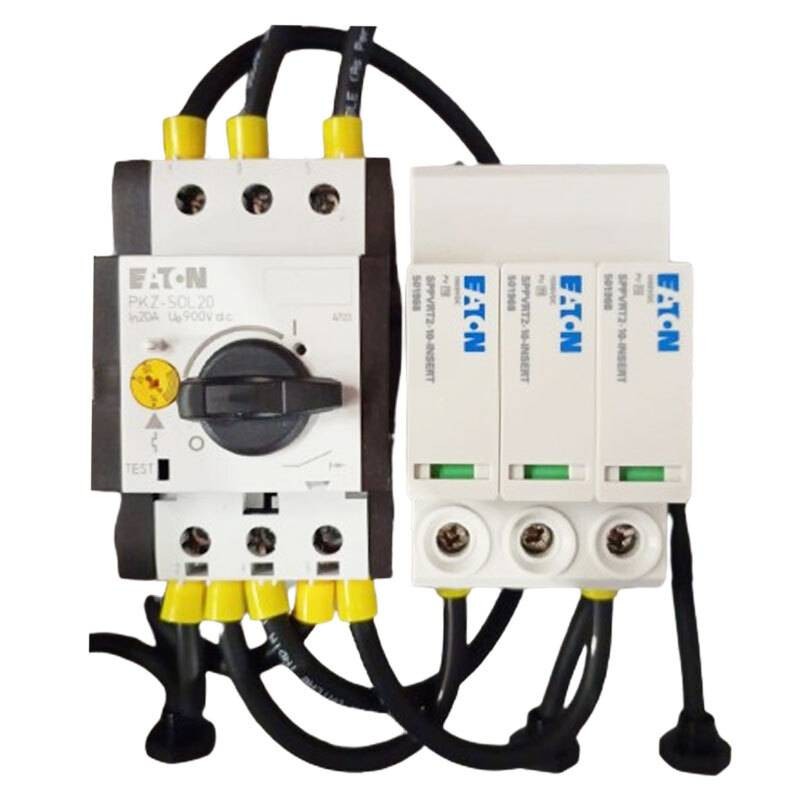

PKZ-SOL20 string protection circuit breaker:
- Eaton's PKZ-SOL Moeller series DC string circuit breaker offers protection against short-circuit currents. To ensure maximum protection, each PKZ-SOL device is installed inside a customer-specific junction box. An auxiliary contact provides information on the switching status, while the documentation contains diagrams illustrating the exact relationship between the tripping current of the protective device and the short-circuit current of the PV modules
