Fischer aluminum profile for photovoltaic 400 mm 00512195
FIS 00512195
8001132021972

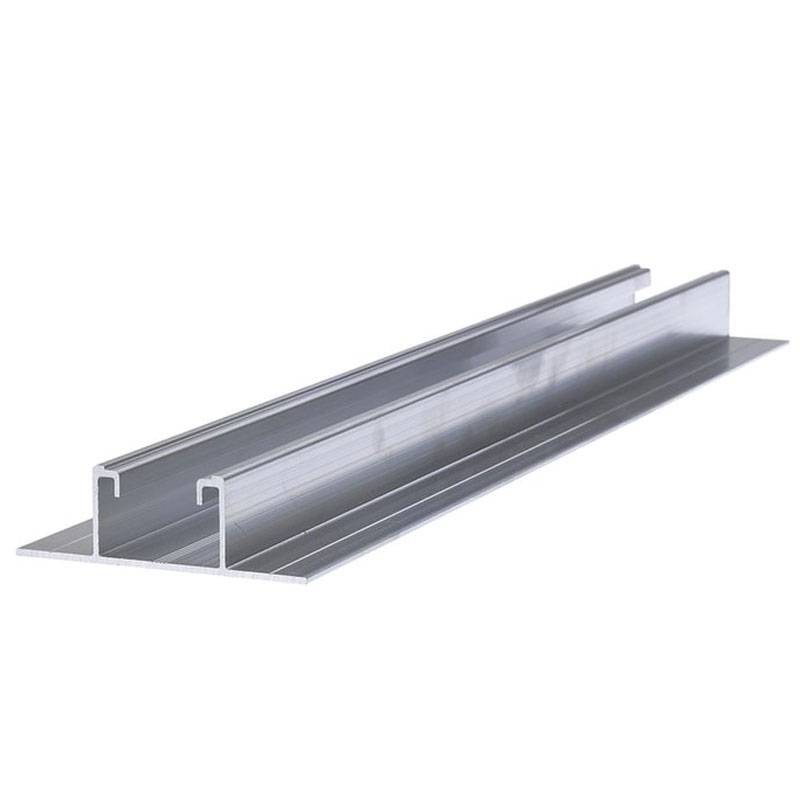

Fischer aluminum profile for photovoltaic SolarFlat P 400 with the following features:
- For mounting photovoltaic panels with potrait orientation on trapezoidal sheet metal roofs
- Split version with a length of 400 mm
- Ideal for optimizing the structure in systems with extensive layouts
- Made of aluminum
Suitable for installation of PV systems on trapezoidal sheet metal, in particular: Use Solar-flat 4.45 m or 5.50 m profiles for isolated layouts, Use Solar-flat P400 lengths for extended layouts.
Fischer aluminum profile for photovoltaic 400 mm 00512195
€4.22
€4.22
Tax included
Tax included
Items Available: 653
: 185

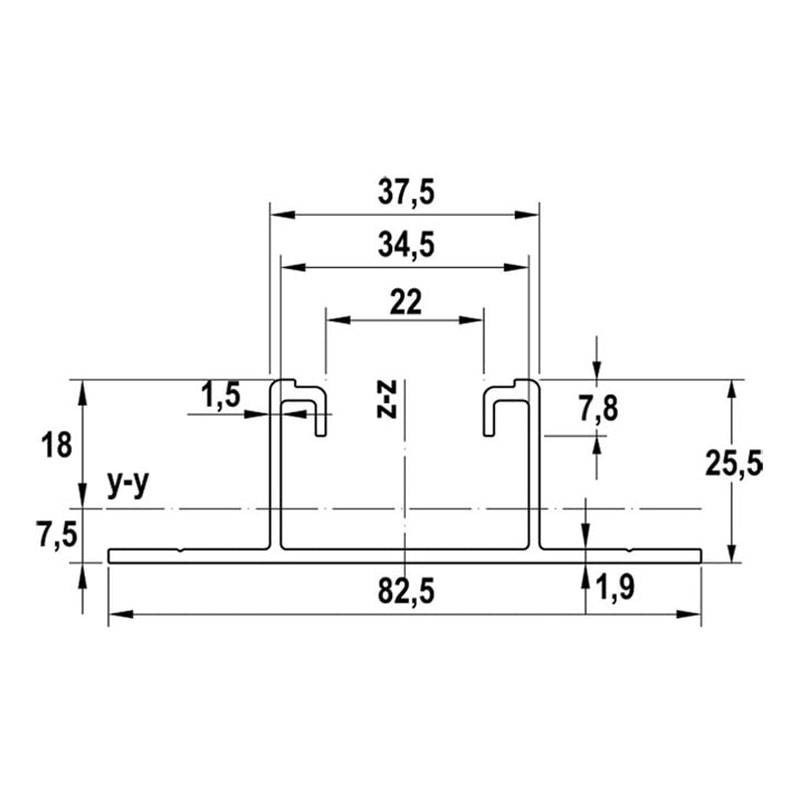

SolarFlat is an aluminum alloy profile designed to enable PV installations on flat or pitched roofs with trapezoidal sheet metal and orthogonal fastening. The application is fast, thanks to quick installation through ALG rivets, and convenient: the PV module can be installed quickly through clamps and easy cross joints through the top slot using FNC AL hammerhead nut, MW bracket and SKS M 8 hex head screw.
Assembly:
- Choose the most suitable installation between SolarFlat whole profile and define the spacing of the fasteners according to the pitch of the ribs of the trapezoidal sheet metal and the snow and wind loads of the system installation area
- Place a few pieces of CG INT butyl tape (minimum piece length 80 mm) on the contact surface between the SolarFlat/SolarFlat P 400 profile and the trapezoidal metal sheet ribs
- Place the profile on the trapezoidal sheet metal
- In case of fastening using ALG rivets, place the profile on the trapezoidal metal sheet and drill the profile and metal sheet together with a 5.5 mm diameter drill bit
- In case of fixing with SolarScrew 6x25 EPDM self-drilling screws, predrill only the SolarFlat profile at the position where the fixing is to be done. Place the already pre-drilled profile on the sheet metal and screw the self-drilling screw by driving it through the pre-hole
There are no reviews
Data sheet
- Type: Fixing Accessories
