Fischer double thread screw for photovoltaic installations M10x181mm 00533376
FIS 00533376
8001132046456
Fischer double thread screw for photovoltaic installations M10x181mm, on corrugated sheet roofing and steel supporting structure.
Fischer double thread screw for photovoltaic installations M10x181mm 00533376
€8.87
€8.87
Tax included
Tax included
Items Available: 29
: 24
Advantages:

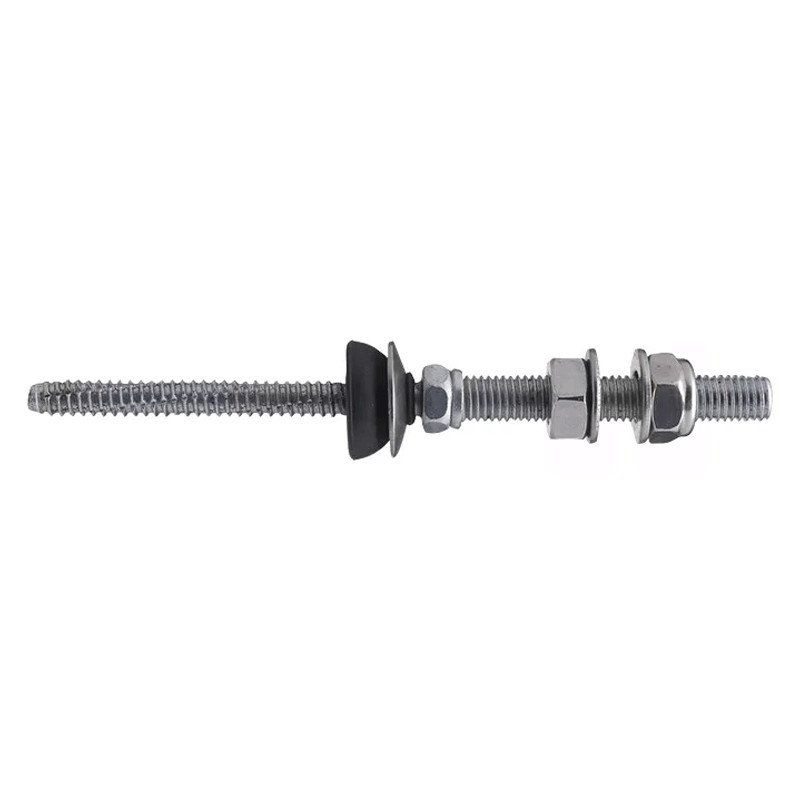

- Complete: the STSI double-threaded screw comes pre-assembled with EPDM gasket, tightening nut and nut pair for connection to MW or SSP brackets
- Fast: quick installation because the cover does not need to be removed during installation
- Waterproof: thanks to the EPDM gasket, the waterproofness of the cover is maintained

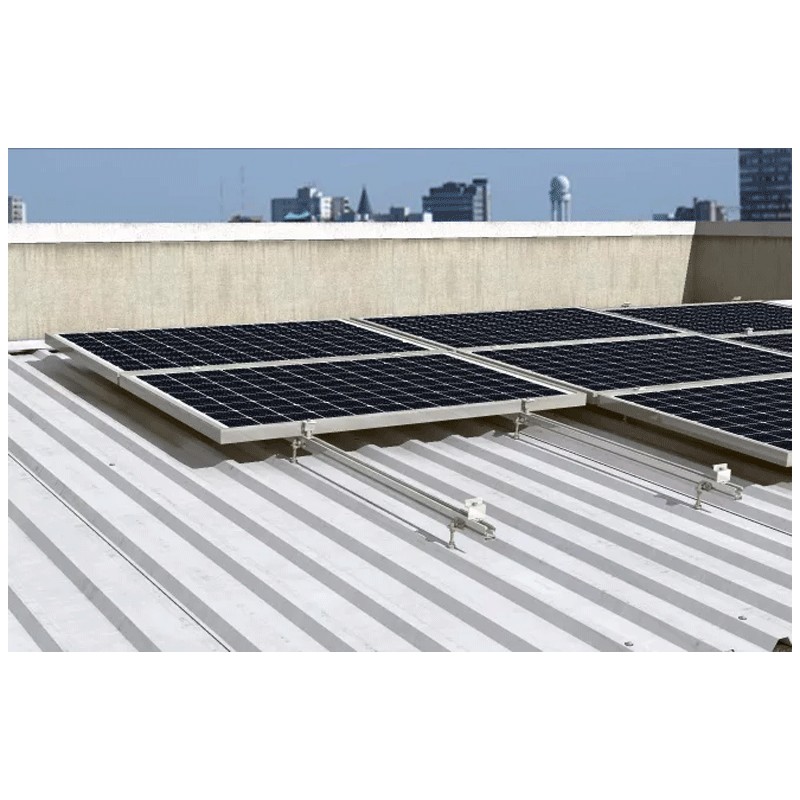

Suitable for: Corrugated slab roofing system with:
- Solar-light profile
- Solar-fish profile
STSI double thread screw fixing:
- Directly on steel trusses and profiles after drilling guide hole
Assembly:
- Locate the length of the double-threaded STSI screw according to the thickness of the supporting beam structure
- Define the spacing of the STSI double-threaded screws according to the snow and wind loads of the installation area of the system and roof slope
- Locate the position of the double-thread STSI screws according to the support structure and plant layout
- Drill the support according to the diameter of the screw and the type of support

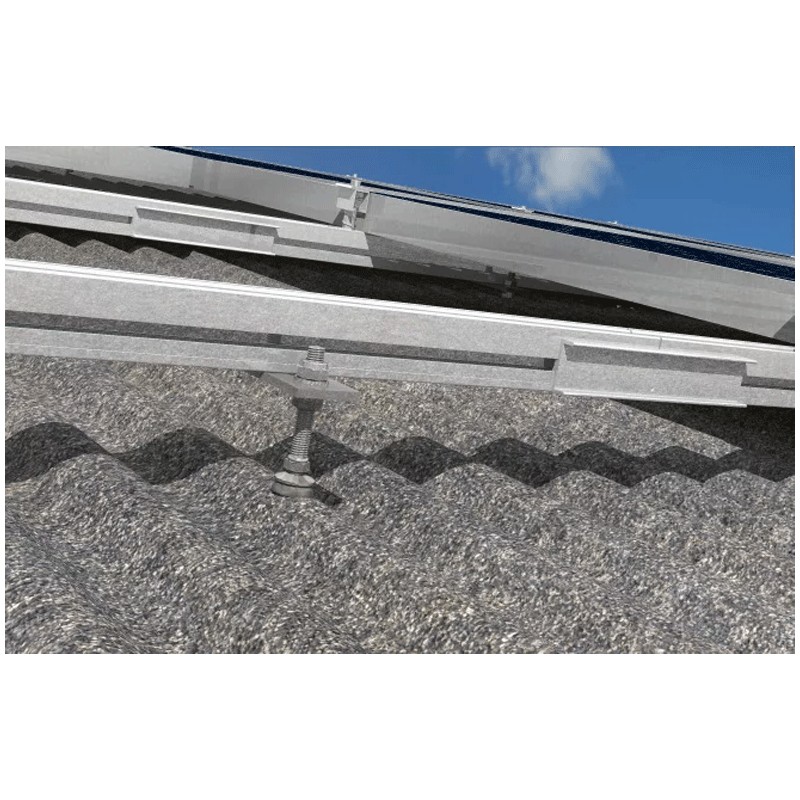

- Screw the double thread STSI screw to the structure by bringing the EPDM rubber into contact with the cover
- Tighten the MU nut on the gasket to maintain the waterproof seal
- Attach the SSP or MW connection plate, adjusting its height using the MU nuts
There are no reviews
Data sheet
- Type:
- Screws
