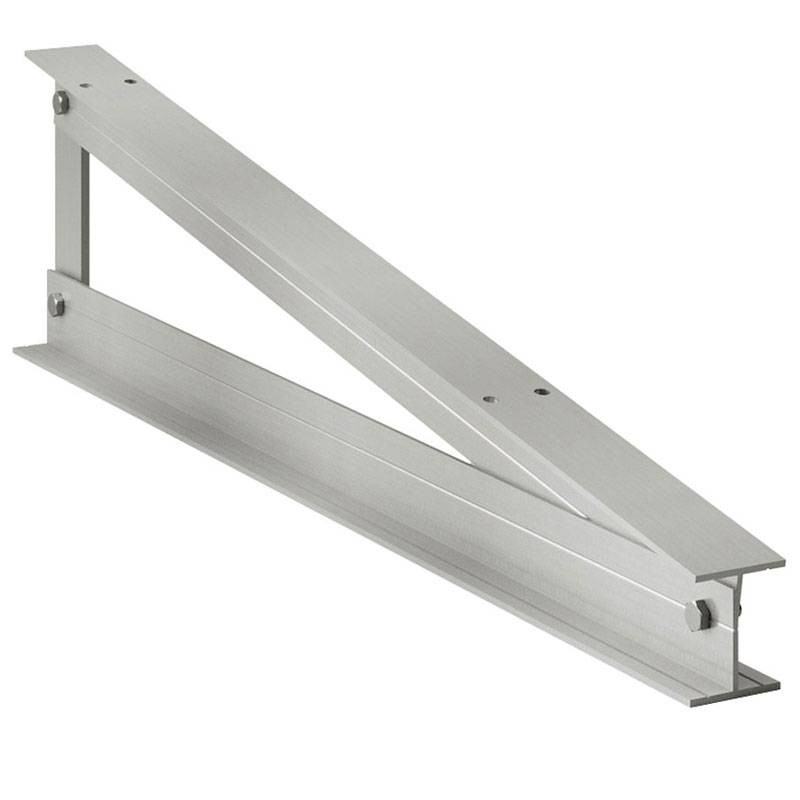

Contact Holder Triangle 10 degrees for horizontal module for photovoltaic KTO076
IIC KTO076
Contact Holder Triangle with 10 degree support for single module horizontally with the following features:
- Surface treatment: T5
- Tensile breaking load Rm: 230 Mpa
- Elasticity limit load Rp 0.2: 200 Mpa
- Elongation over 50 mm: 12%
- Hardness HB: 72
- Coefficient of linear thermal expansion between 20°C and 100°C (1/°K): 23x10-6
- Readiness for oxidation surface treatment: excellent
- Area of application: flat roofs
- Module orientation: Horizontal
- Installable profile: PRT2334, PRT2640, PRT2947
- Roof connection: Fixing or Ballasting
Contact Holder Triangle 10 degrees for horizontal module for photovoltaic KTO076
€30.52
€30.52
Tax included
Tax included
Items Available: 124
: 100
Frequently bought together

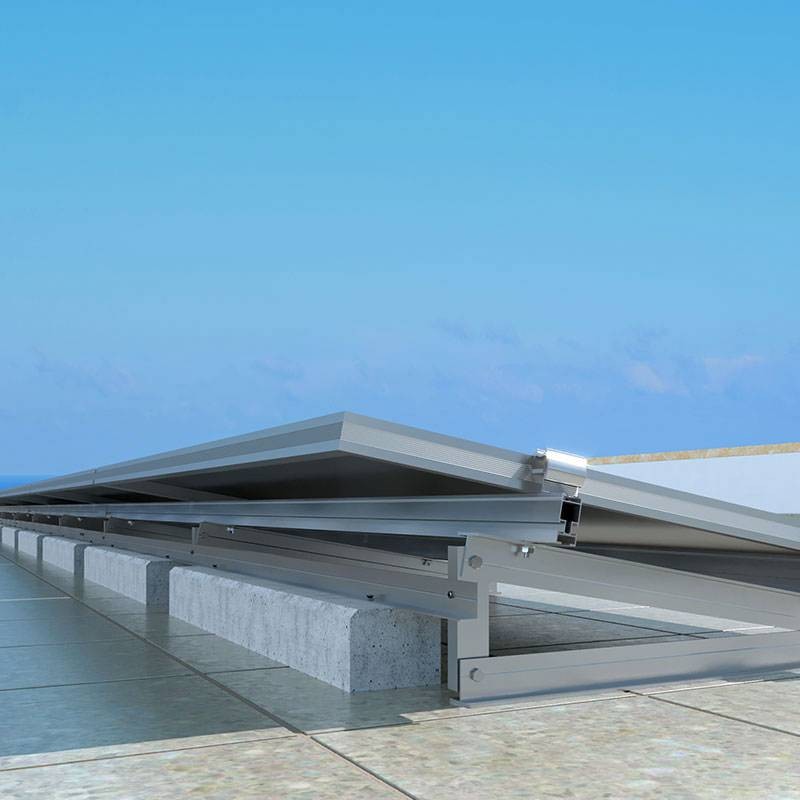

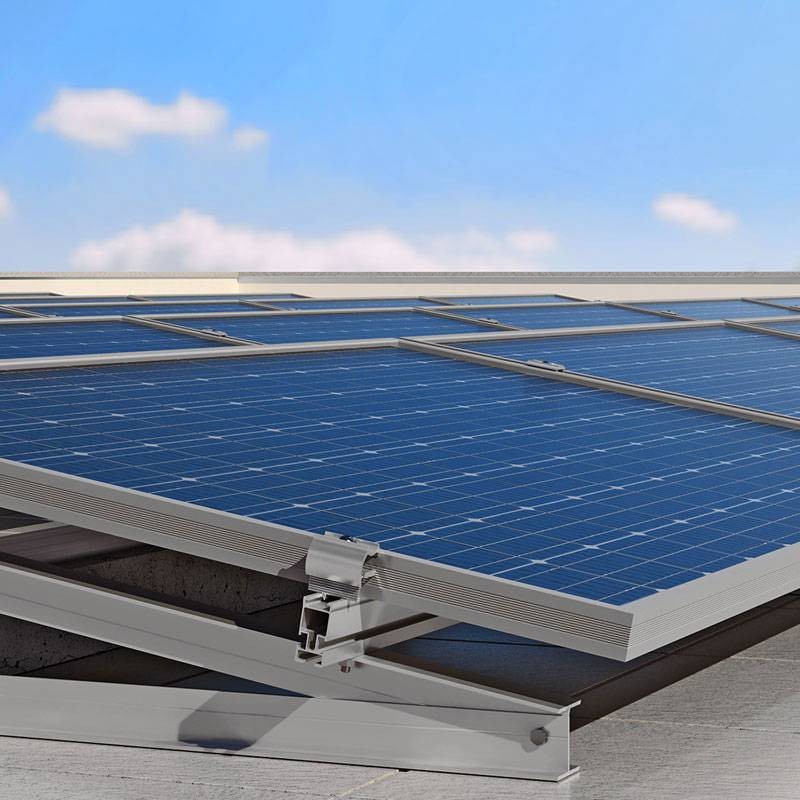

The system with aluminum support KTO076, allows the installation of single rows of photovoltaic modules arranged horizontally with fixed 10° tilt. Snap-on mounting of the universal clamps, KMTU2950 terminal and KMCU2950 center, is done at the short side of the modules.
There are no reviews
Data sheet
- Type:
- Fixing Accessories
